25 November 2011
Replacement
Adjustment
CF-3-11

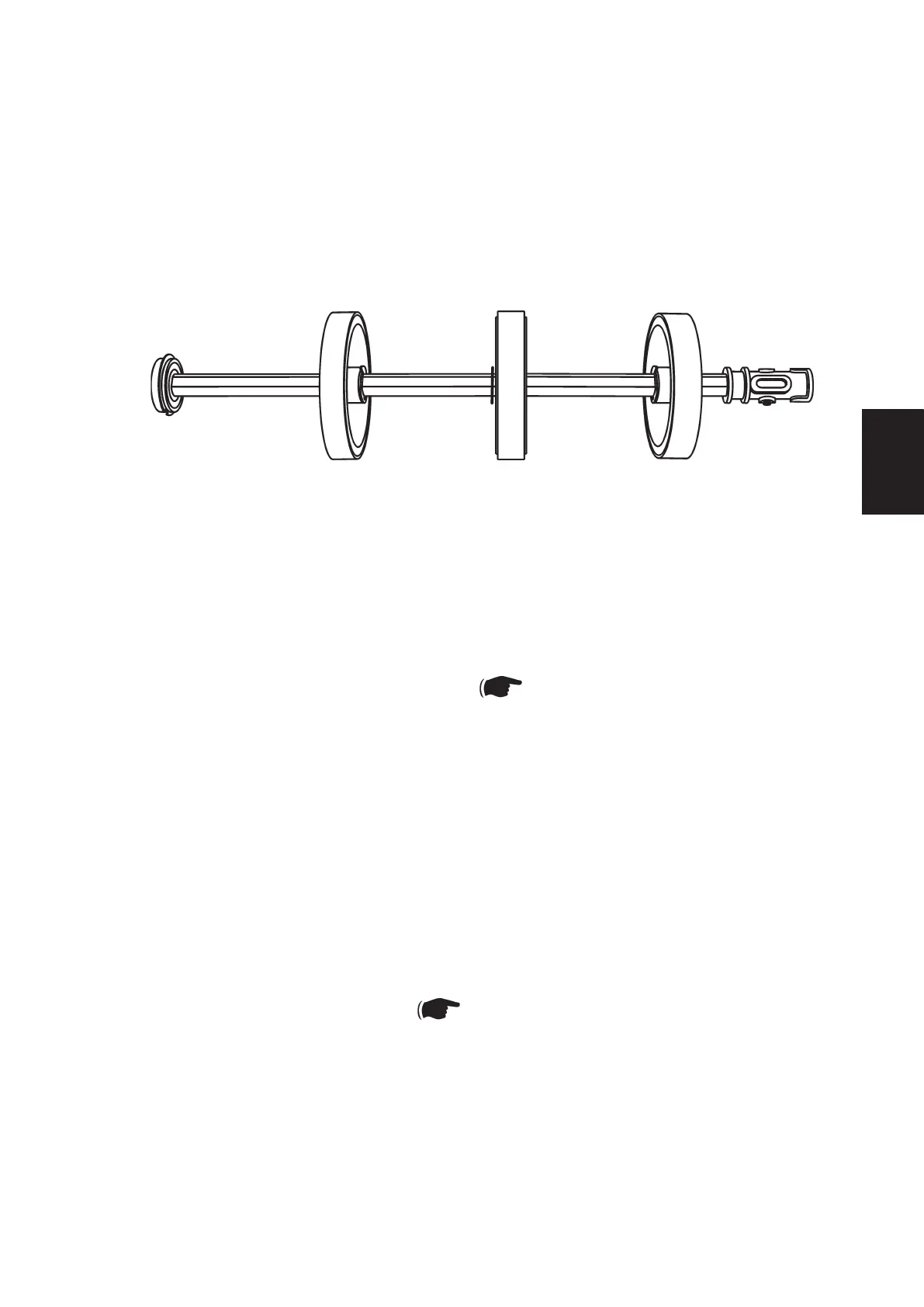

3.2.7 DRIVE SHAFT ASSEMBLY
Removal
1. Remove Drive motor M16 assembly ( 3.2.6).
2. Remove the Drive shaft assembly, by sliding it out through the rear frame.
Replacement
1. Reverse the removal procedure.
Adjustment
Adjust the Drive clutch assembly ( 3.2.6).
AREA F
