3. REPLACEMENT AND ADJUSTMENT
3.1 COVER FEEDER
3.1.1 REMOVE COMPLETE UNIT
Replacement
Adjustment
CF-3-1

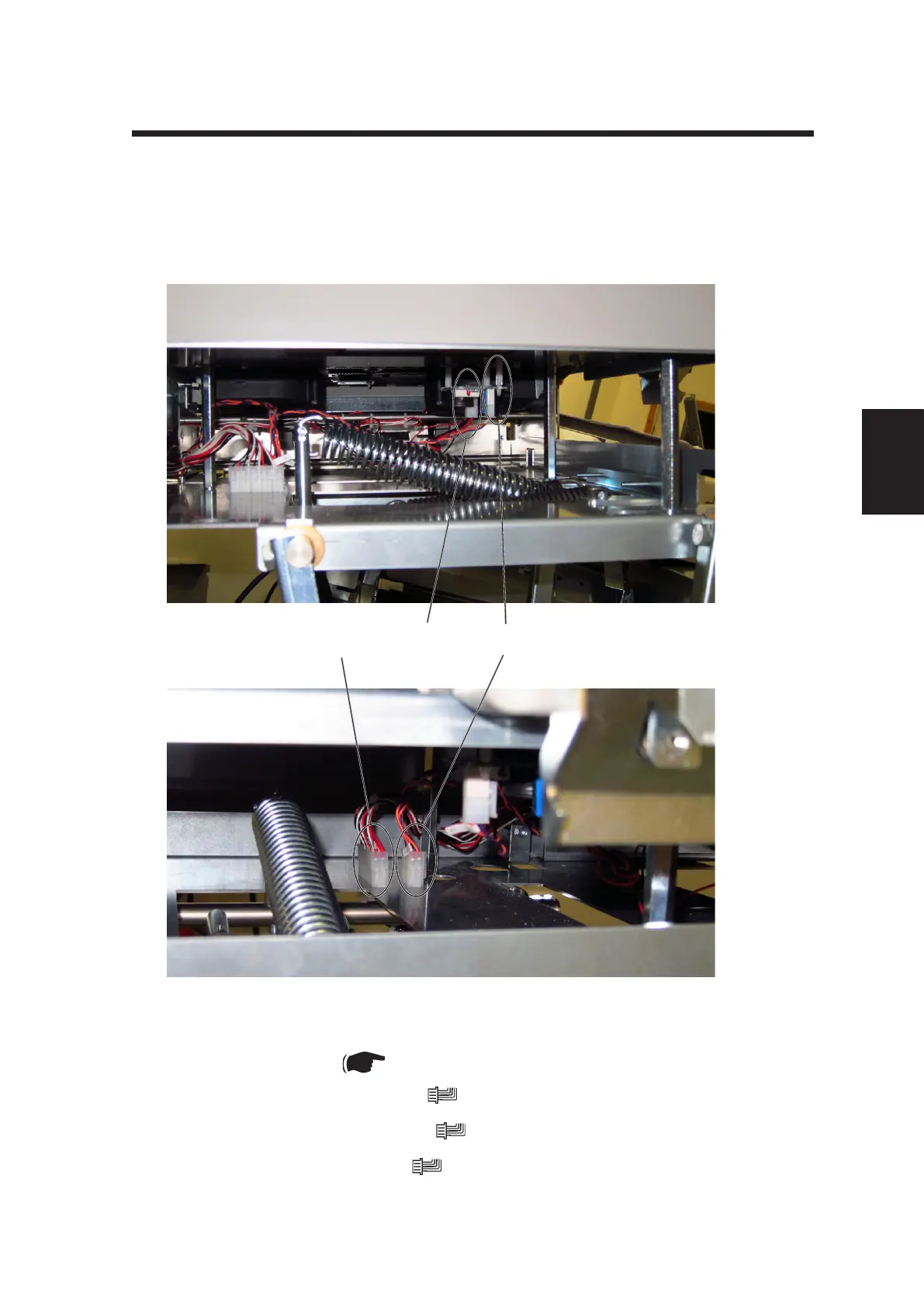

1. Remove Top Cover ( BK5030 Service Manual 3.3.5 ).
2. Disconnect motor harness [A] ( x 2).
3. Disconnect sensor harness [B] ( x 1).
4. Disconnect fan harness [C] ( x 1).
[A][B] [C]
Cover Feeder,
viewed from Booklet
Maker outfeed
Cover Feeder, viewed from
Booklet Maker front side
