Plockmatic CF5030 - DRIVE MOTOR M16 ASSEMBLY

25 November 2011
CF-3-10

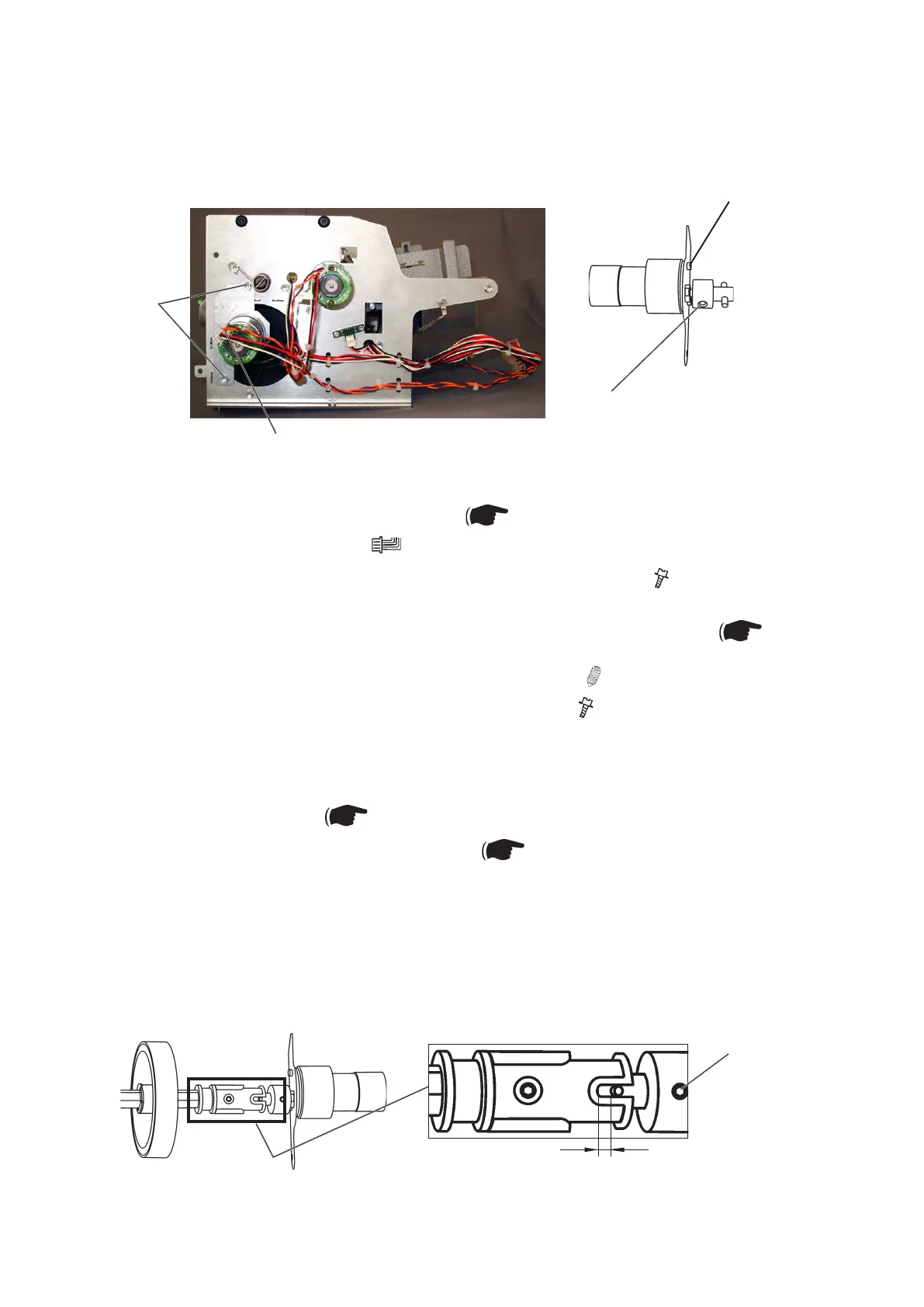

3.2.6 DRIVE MOTOR M16 ASSEMBLY
[A]
0.4 ± 0.3 mm play between
the coupling and the clutch
Removal
1. Remove complete Cover Feeder unit ( 1.1.1).
2. Disconnect Connector [A] ( x1).
3. Remove Drive motor M16 assembly by removing screws [B] ( x2).
NOTE: Be careful when removing the Drive motor M16 assembly, so that the
Drive Shaft Assembly will not damage the LED sensor CF-Q30 (
3.2.9).
4. Loosen the allen screw [C] to Drive clutch assembly ( x1).
5. Remove the motor bracket by removing screws [D] ( x3).
[B]
[C]
[D]
Replacement
1. Reverse the removal procedure.
2. Enter Service mode ( 5.1.1 in BK5030 Service Manual).
3. Perform Cover Feeder motor calibration ( 5.5 in BK5030 Service Manual).
Adjustment
Adjust the Drive clutch assembly, so that there is play between the coupling on the
Drive shaft and the Clutch. The play should be 0.4 ± 0.3 mm. Adjust by loosening
screw [C].
AREA F
[C]
