Plockmatic CF5030 - PAPER WIDTH SENSOR Q38

25 November 2011
CF-3-6
1. Remove screw [A] ( x1).
2. Gently lift out Sensor Q38 [B] and disconnect connector [C] ( x1).
2. Remove Sensor Q38 [B] ( x1).
[A]
[B]

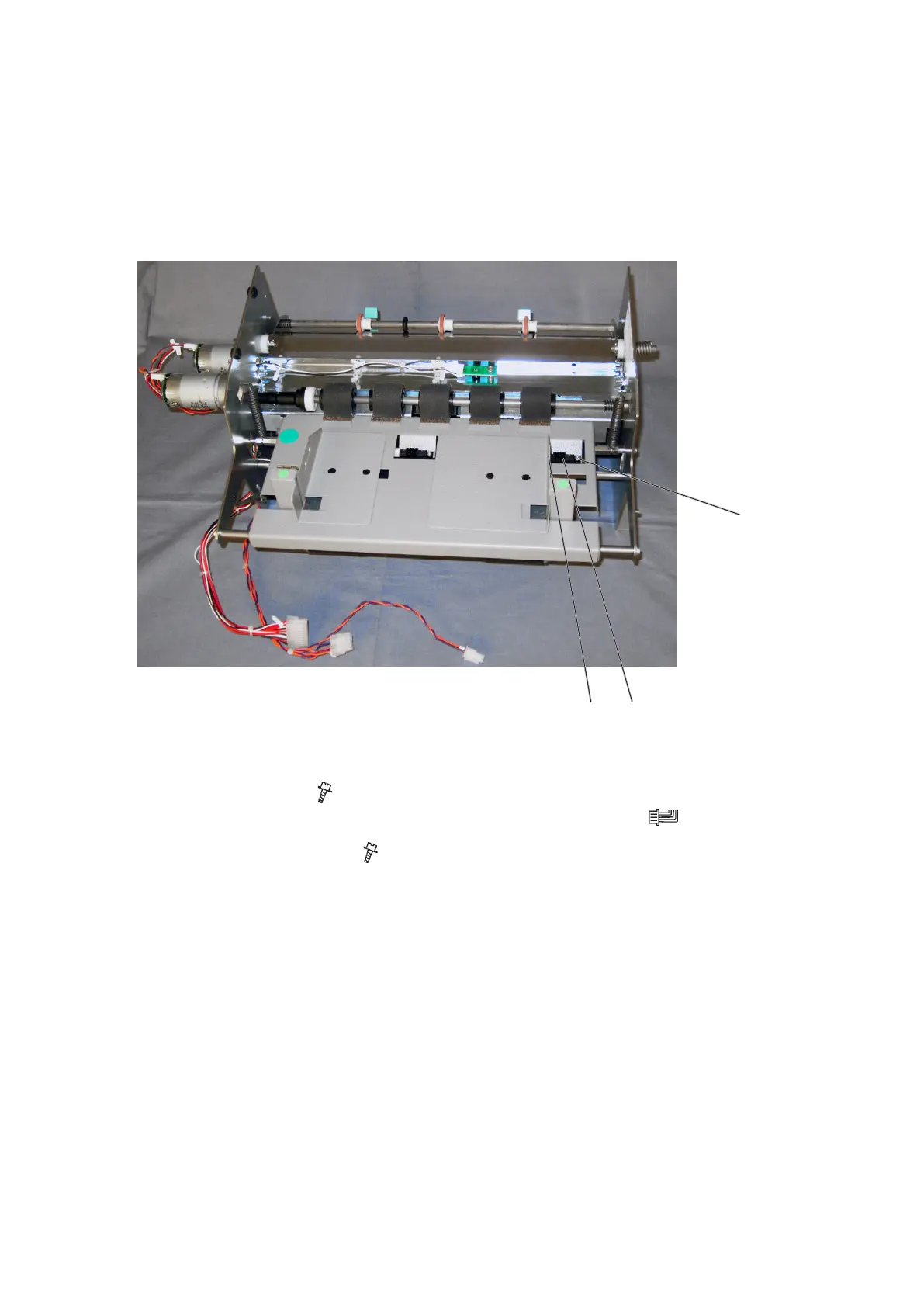

3.2.2 PAPER WIDTH SENSOR Q38
[C]
AREA F
