25 November 2011
CF-3-12

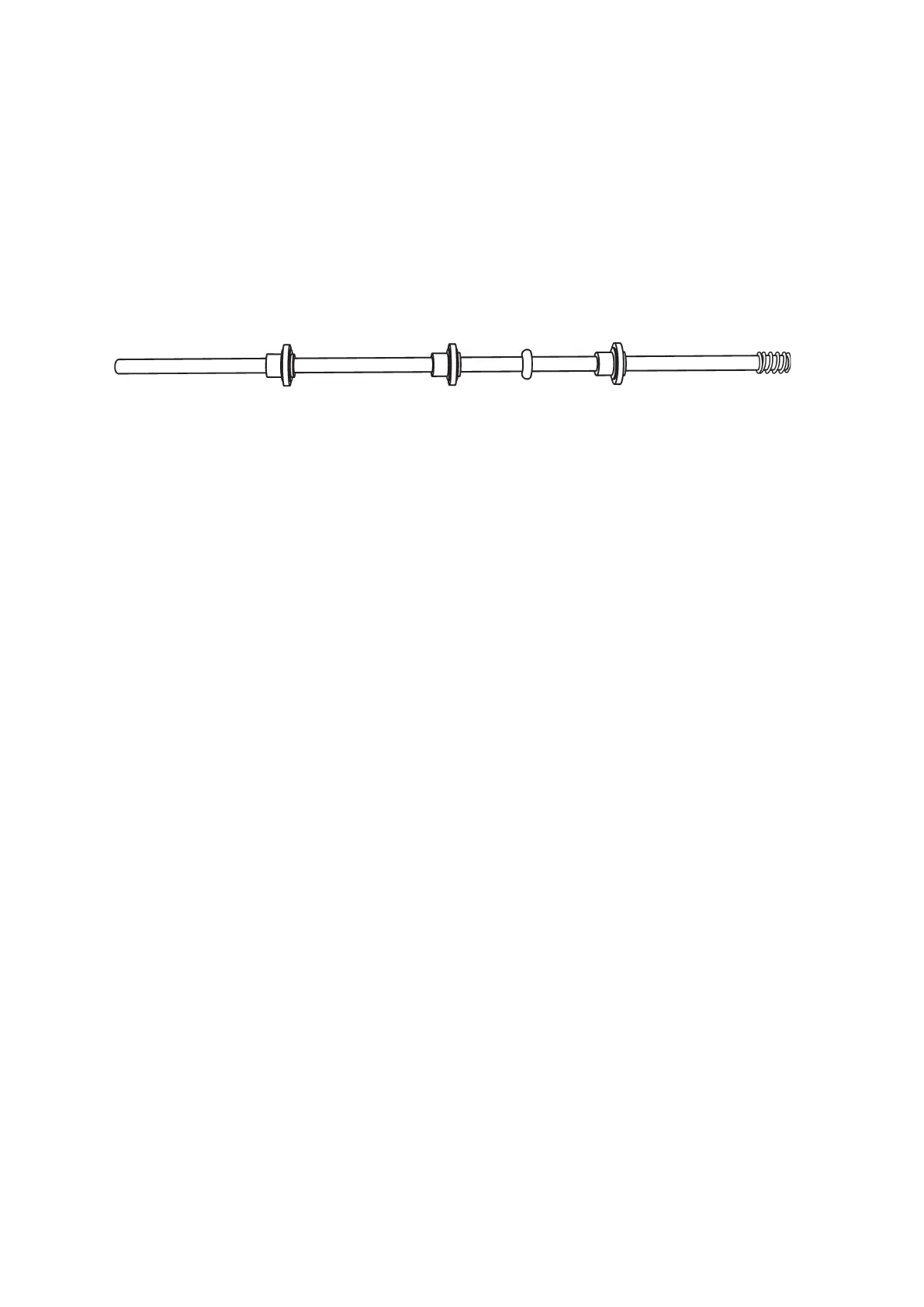

3.2.8 PINCH ROLL SHAFT ASSEMBLY
1. Remove the Pinch roll shaft assembly by pressing it to the rear side of the
Cover Feeder.
AREA F
