Plockmatic CF5030 - FEED MOTOR M15

25 November 2011
CF-3-8
AREA F

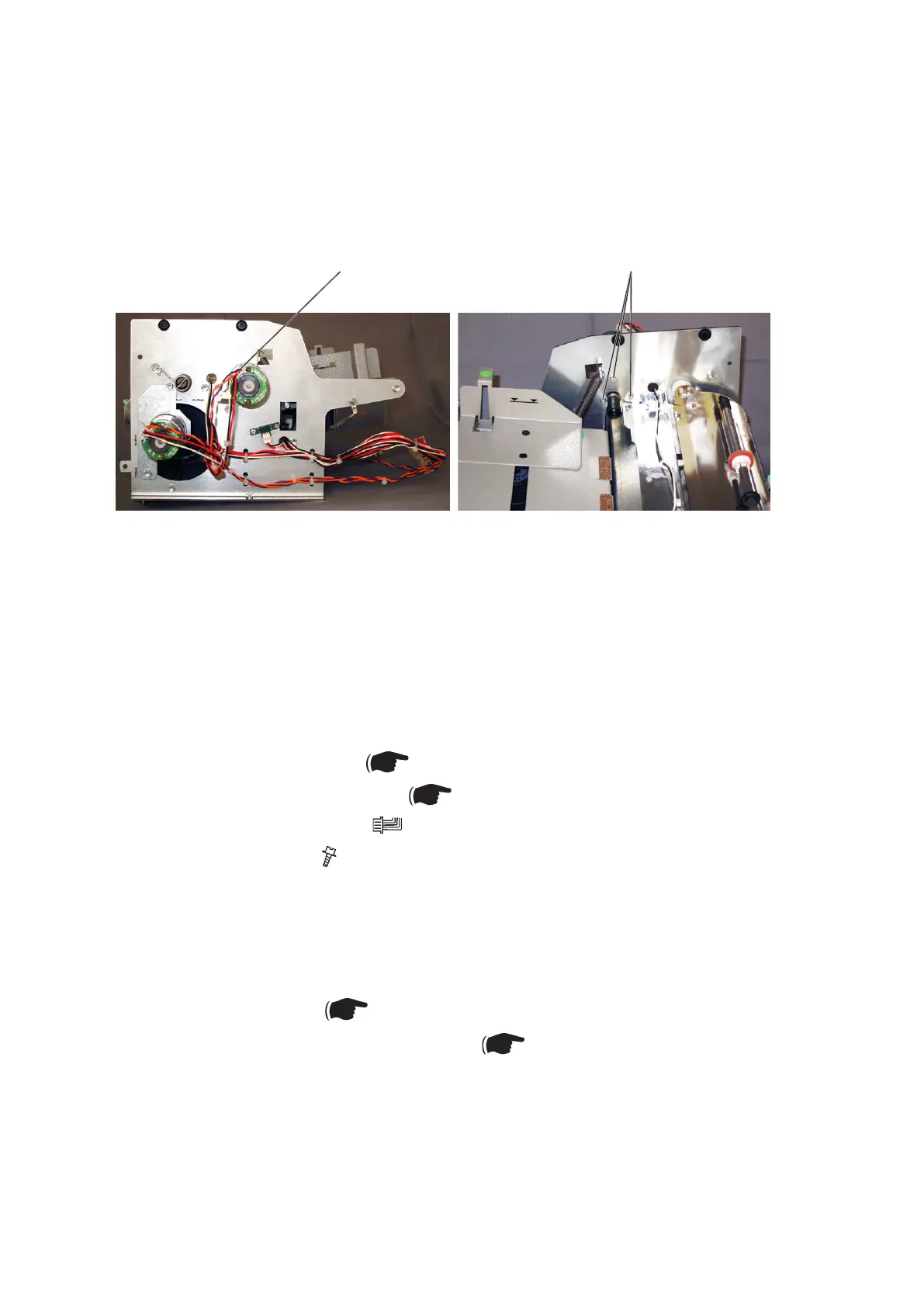

3.2.4 FEED MOTOR M15
Removal
1. Remove Rear Top Cover ( Booklet Maker Service Manual 3.3.6).
2. Remove Feed roller assembly ( 3.2.3).
3. Disconnect Connector [A] ( x1).
4. Remove screws [B] ( x3).
5. Remove Feed motor M15.
Replacement
1. Reverse the removal procedure.
2. Enter Service mode ( 5.1.1 in BK5030 Service Manual).
3. Perform Cover Feeder motor calibration ( 5.5 in BK5030 Service Manual).
[A] [B]
