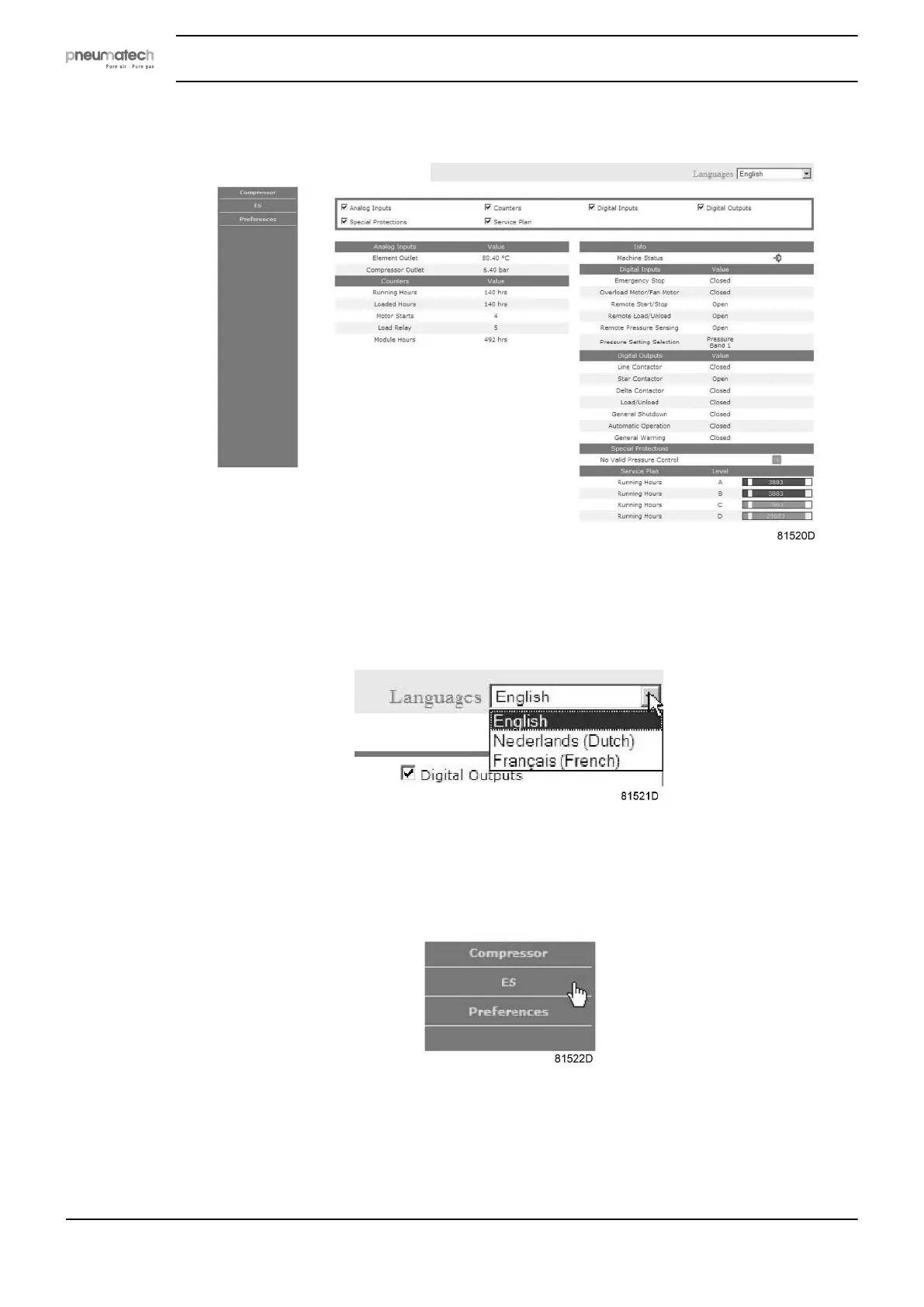

Controller screen (typical).
Navigation and options
• The banner shows the machine type and the language selector. In this example, three
languages are installed on the controller.
• On the left side of the interface you can find the navigation menu (see picture below).
If a license for ESi is foreseen, the menu contains 3 buttons.
• machine: shows all machine settings.
• Es: shows the ESi status (if a license is provided).
• Preferences: allows to change temperature and pressure unit.
Machine settings
All machine settings can be hidden or shown. Put a mark for each setting. Only the machine
status is fixed and can not be removed from the main screen.
Instruction book
68 2920 7111 23
