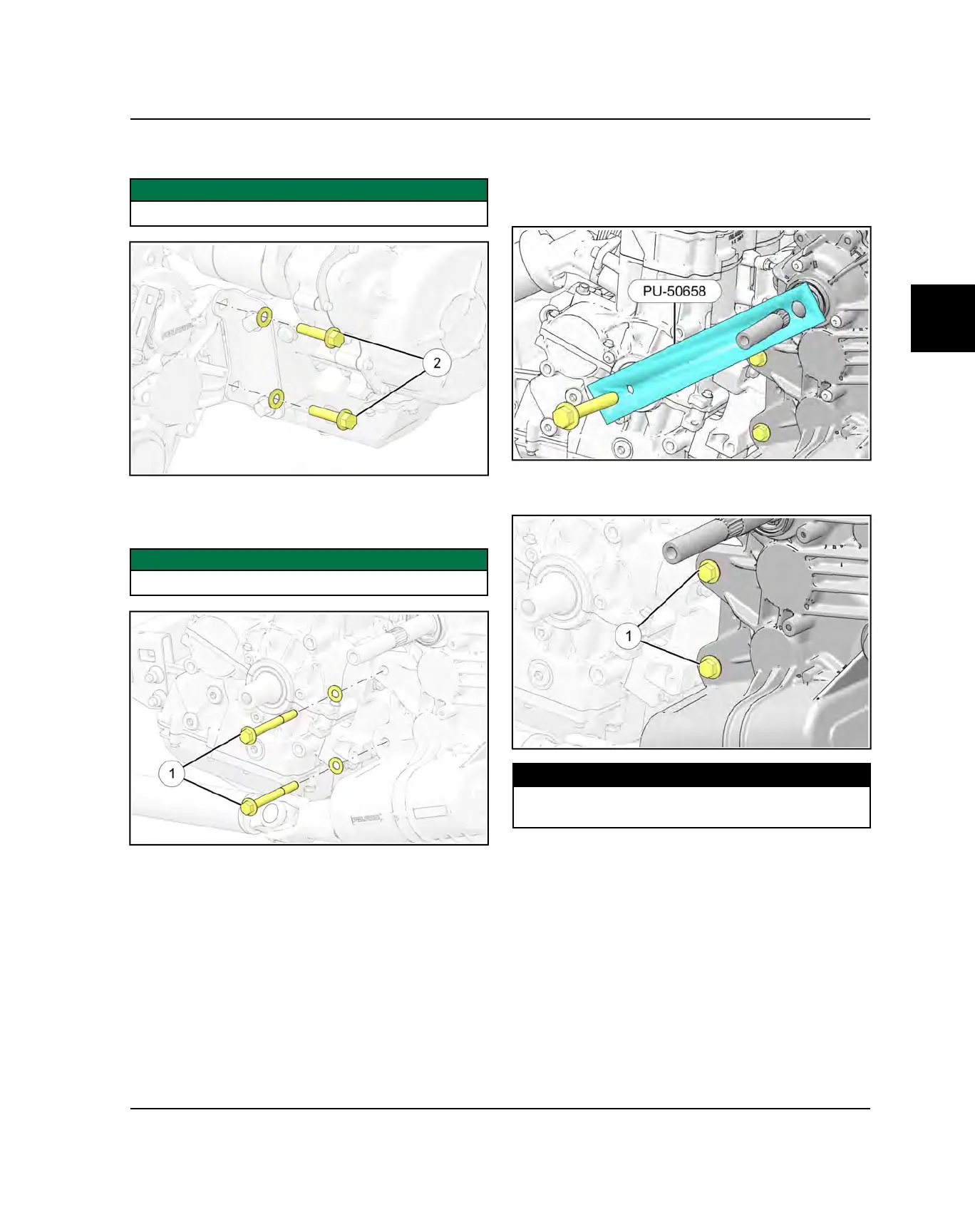

4. Loosely install NEW engine to transmission mounting
fasteners and washers
w
.
IMPORTANT
Do NOT torque at this time.
5. Loosely install NEW engine to transmission mounting
fasteners and washers
q
on the PTO side of the
engine.
IMPORTANT
Do NOT torque at this time.
6. Install clutch center distance tool PU-50658 onto the
crankshaft and transmission input shaft using hole
pattern 4 to properly position the clutch center
distance. Secure to the crankshaft using bolt (PN
7518412).
7. Torque the upper transmission to engine mount
fastener first, then torque the lower fastener.
TORQUE
Mounting Fasteners:
45 ft-lbs (61 Nm)
