8. Torque the two fasteners securing the transmission
mount bracket to the engine.
TORQUE
Rear Engine Mount Fasteners:
5 ft-lbs (7 Nm)
9. Torque the engine to transmission mounting
fasteners and washers
w
on the MAG side of the
engine.
TORQUE
Rear Engine Mount Fasteners:
5 ft-lbs (7 Nm)

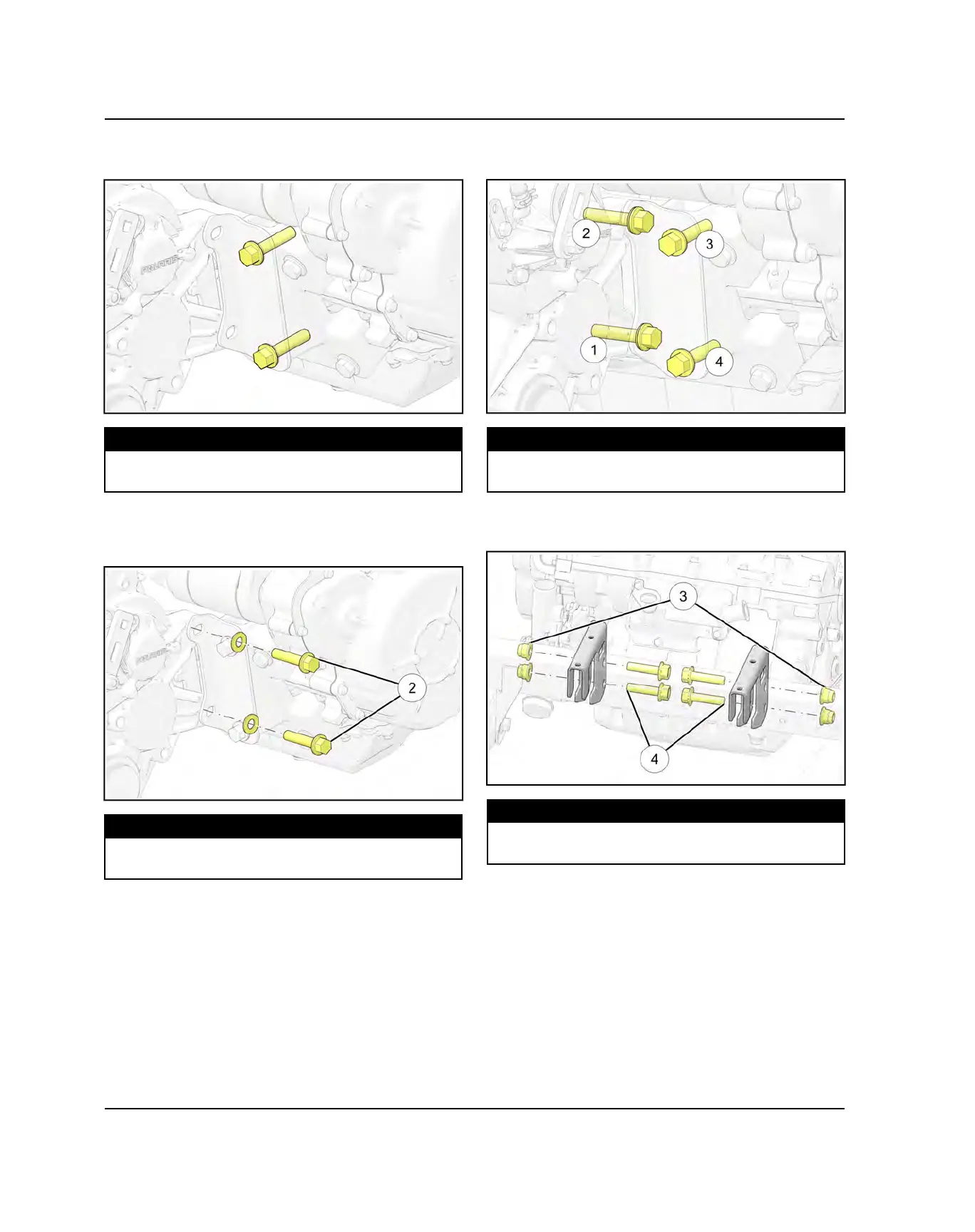

10.Torque the rear engine mount bracket in the
sequence shown below.
TORQUE
Rear Engine Mount Fasteners:
45 ft-lbs (61 Nm)
11. Torque the front engine mount nuts
e
and fasteners
r
.
TORQUE
Rear Engine Mount Fasteners:
40 ft-lbs (54 Nm)
12.Install the engine harness and connect all electrical
connectors. Refer to Engine Harness Routing page
4.3.
13.Fill and bleed the cooling system. Refer to Coolant
Service page 3.80.
14.Install the exhaust headpipe. Refer to Headpipe
Service page 3.22.
15.Install the inner clutch cover. Refer to Inner PVT
Cover Service page 6.11.
