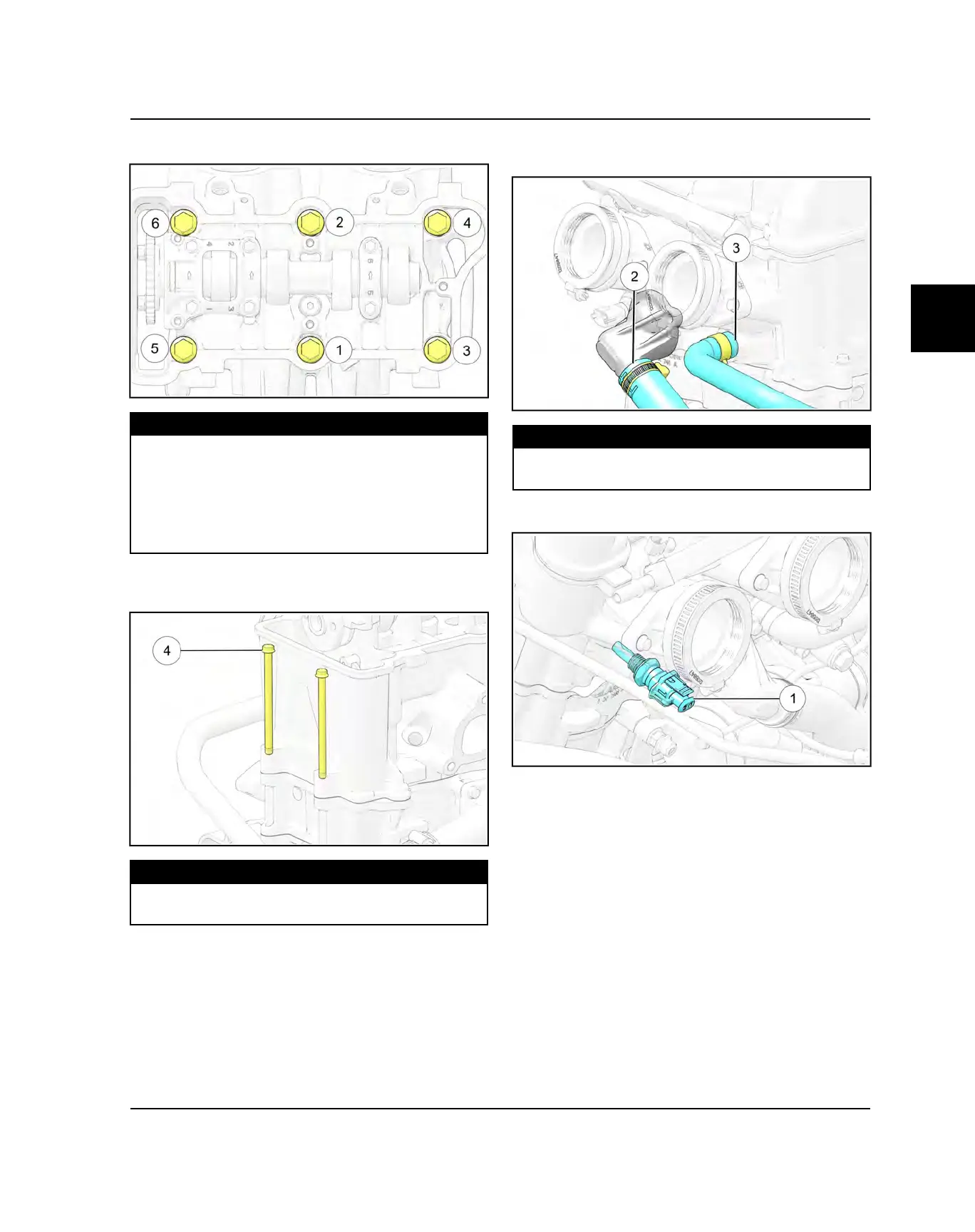

3. Torque the cylinder head bolts in the sequence below.
TORQUE
Cylinder Head Bolts (M11):
Torque in sequence
Step 1: 13 ft-lbs (18 Nm)
Step 2: 26 ft-lb (35 Nm)
Step 3: Tighten additional 360°
4. Install the two M6 cylinder head fasteners
r
and
torque to specification..
TORQUE
Cylinder Head Bolts (M8):
7 ft-lb (10 Nm)
5. Install the Camshaft Sprocket. Refer to Camshaft
Sprocket Service page 3.38.
6. Connect the engine outlet hose
w
and oil cooler
outlet hose
e
.
TORQUE
Coolant Hose Clamp:
35 in-lbs (4 Nm)
7. Connect the Coolant Temperature Sensor
q
.
8. Connect the fuel supply line to the fuel rail. Refer to
Fuel Supply Line Service page 5.8
9. Install the Exhaust Headpipe. Refer to Headpipe
Service page 3.22.
10.Install the Intake Manifold. Refer to . page 3.16
11. Top off engine oil if necessary. Refer to Engine Oil
Level Inspection.
12.Fill and bleed the cooling system. Refer to Coolant
Service page 3.80.
