7.10
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

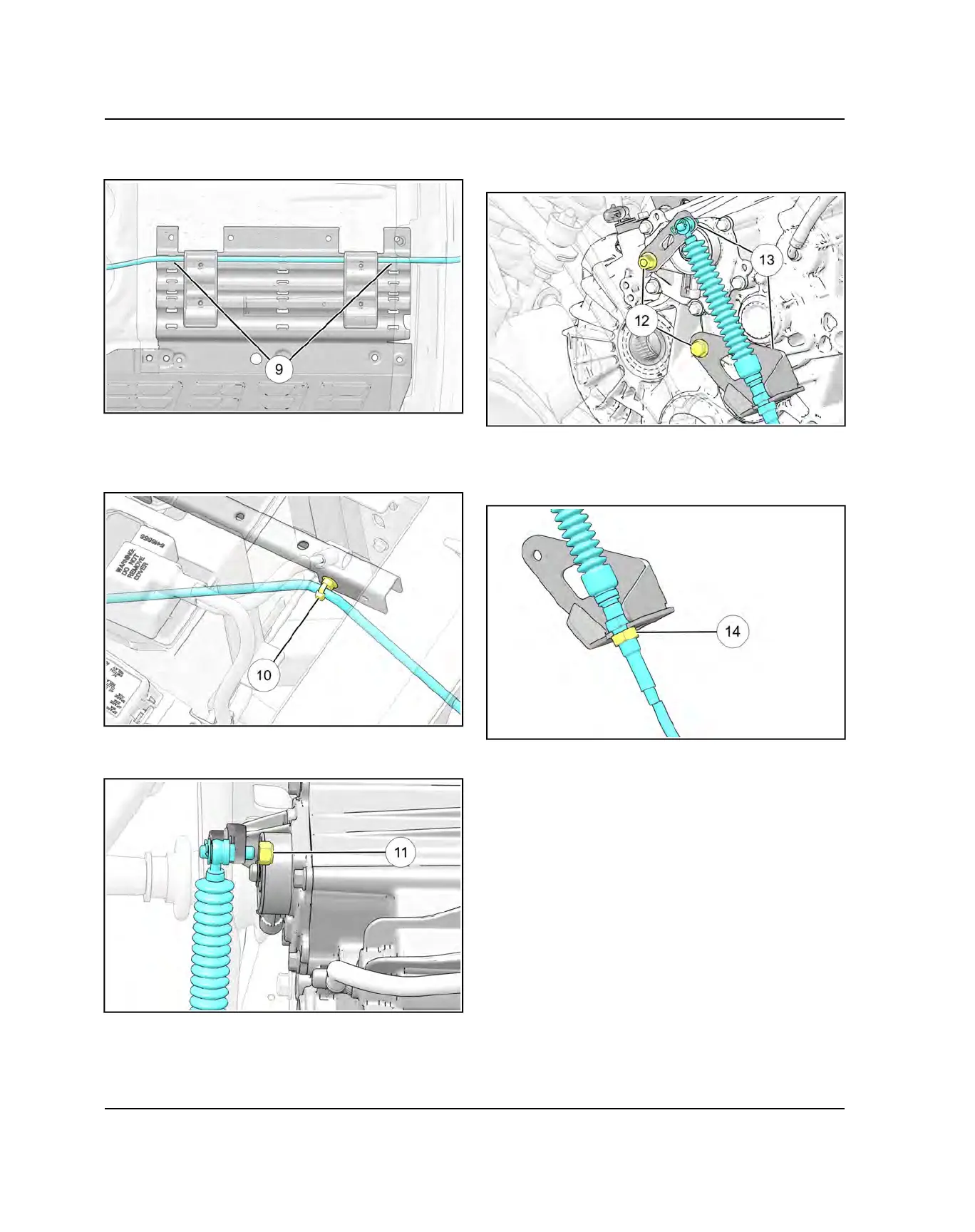

9. Remove the shift cable from the two floor retainers
o
under the propshaft tunnel cover.
10.Remove the storage bin above the battery.
11. Remove the shift cable from the retainer
a
near the
vehicle battery.
12.Remove the 10mm fastener
s
securing the shift
cable to the transmission.
13.Loosen the fasteners
d
securing the shift cable
brackets
f
to the transmission and remove the
brackets.
14.Remove the shift cable from the vehicle
15.Loosen the locknut
g
securing the shift cable to the
transmission bracket. Retain bracket for reassembly.
TRANSMISSION
