INSTALLATION

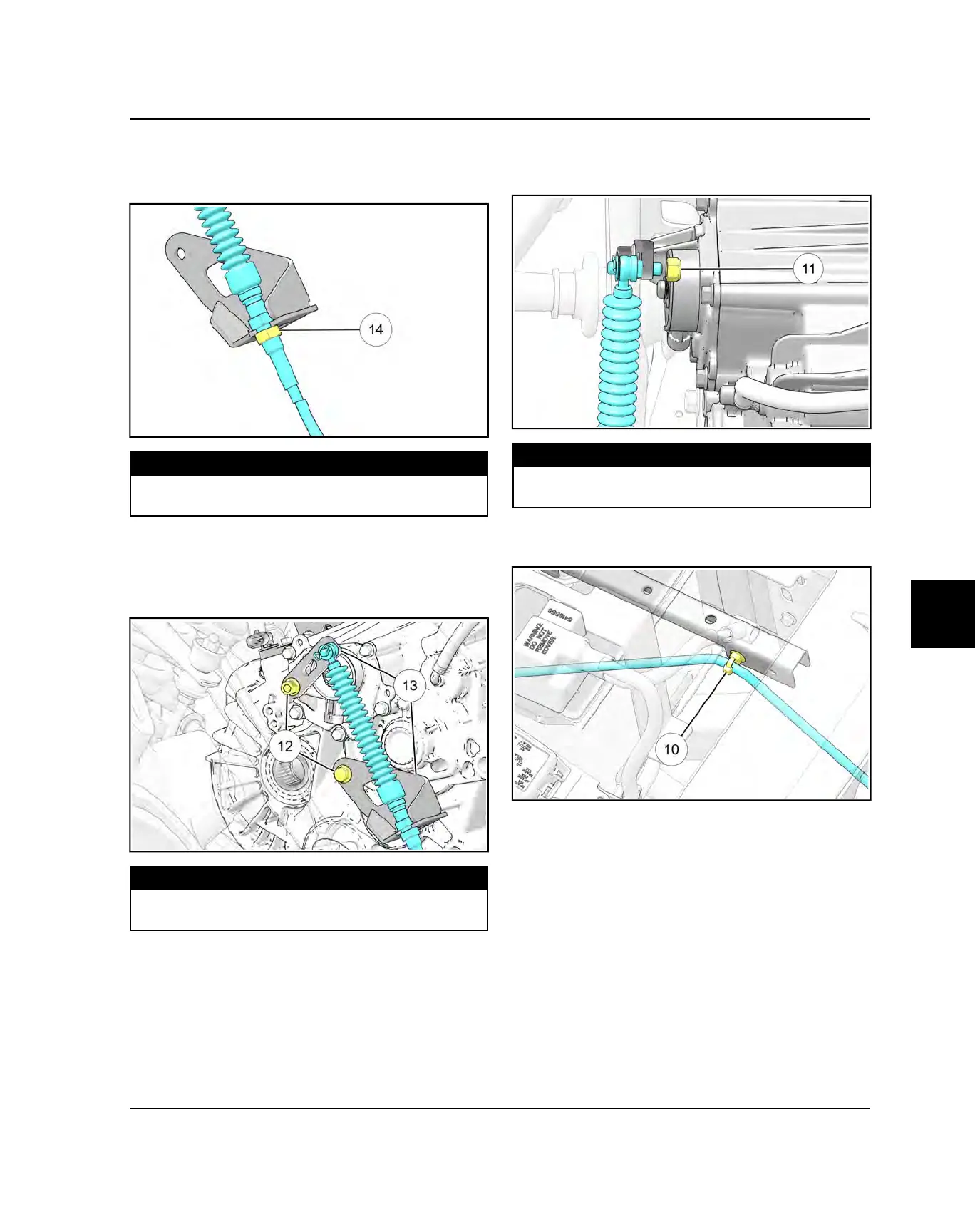

1. Install the shift cable in the transmission bracket.
Torque the locknut
g
to specification.
TORQUE
Shift Cable Locknut:
13 ft-lbs (18 Nm)
2. Install the shift cable in the vehicle. Refer to Shift
Cable Routing page 7.7 for proper routing.
3. Install fasteners
d
securing the shift cable brackets
f
to the transmission and torque to specification.
TORQUE
Shift Cable Brackets:
37 ft-lbs (50 Nm)
4. Install the cable in the transmission shift bracket.
Install a new fastening nut
s
and torque to
specification.
TORQUE
Shift Cable Fastening Nut:
13 ft-lbs (18 Nm)
5. Secure the cable to the chassis retainer
a
behind the
battery.
6. Reinstall the storage bin above the battery.
