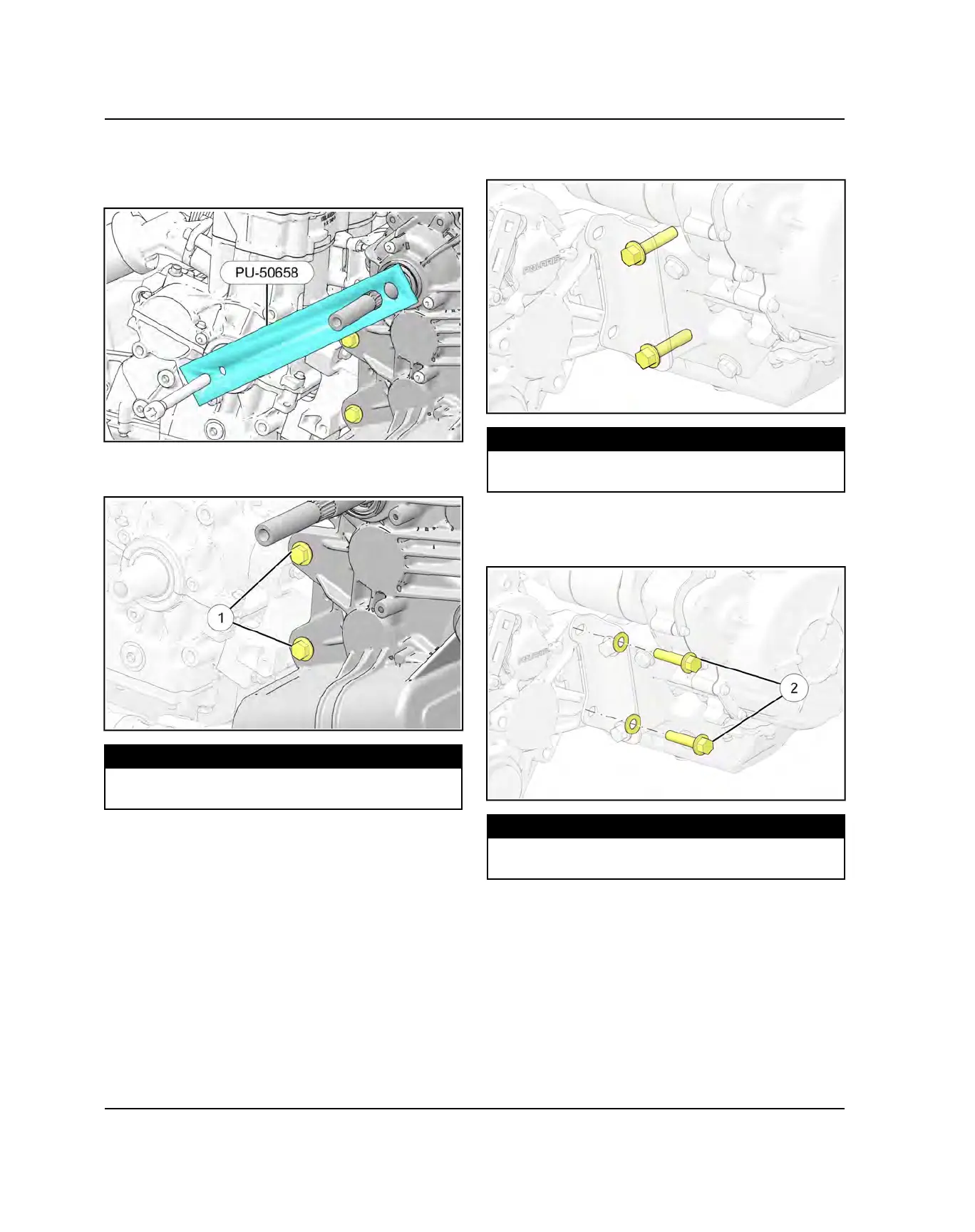

6. Install clutch center distance tool PU-50658 onto the
crankshaft and transmission input shaft using hole
pattern 4 to properly position the clutch center
distance.
7. Torque the upper transmission to engine mount
fastener first, then torque the lower fastener.
TORQUE
Mounting Fasteners:
45 ft-lbs (61 Nm)
8. Torque the two fasteners securing the transmission
mount bracket to the engine.
TORQUE
Rear Engine Mount Fasteners:
5 ft-lbs (7 Nm)
9. Torque the engine to transmission mounting
fasteners and washers
w
on the MAG side of the
engine.
TORQUE
Rear Engine Mount Fasteners:
5 ft-lbs (7 Nm)
TRANSMISSION
