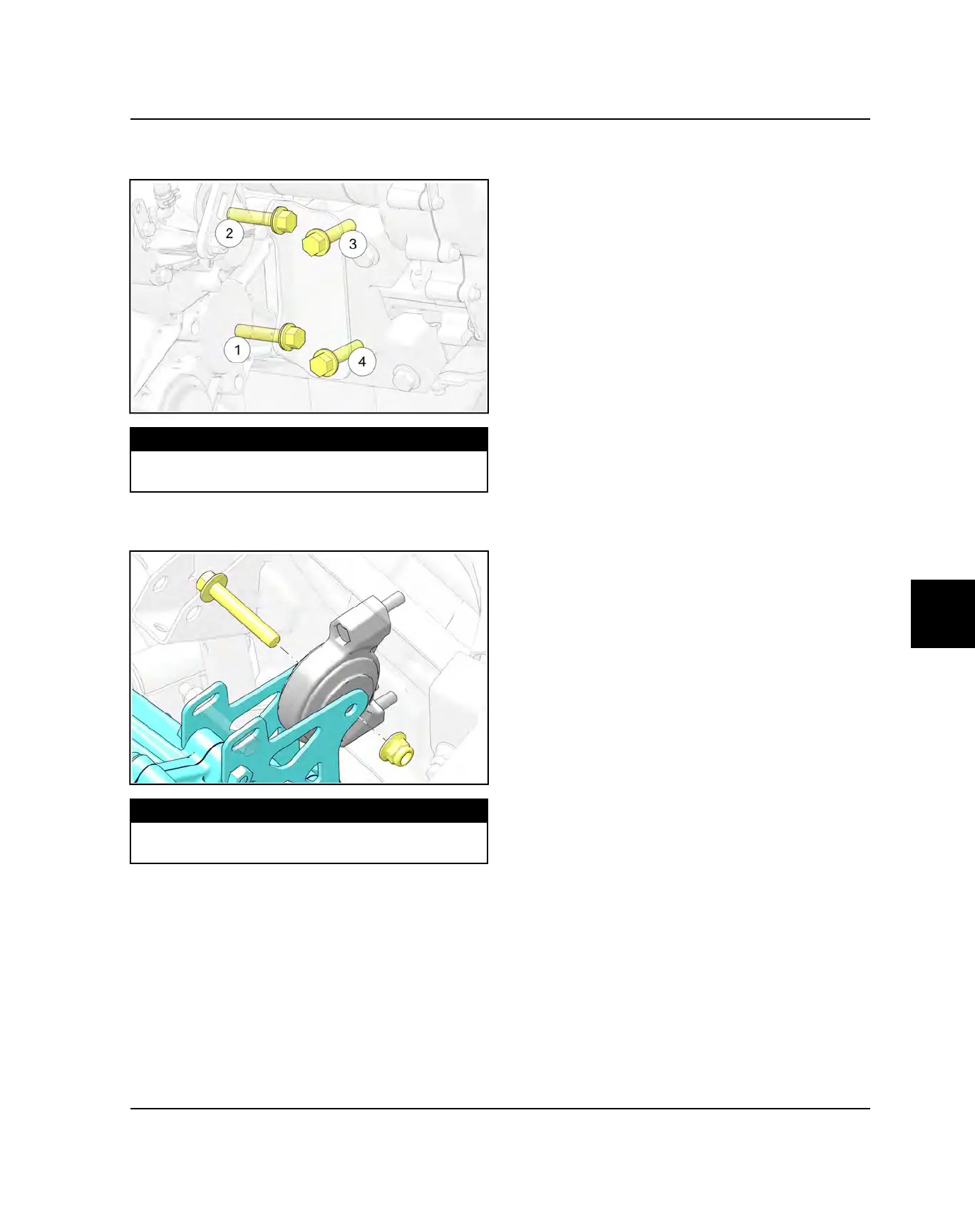

10.Torque the rear engine mount bracket in the
sequence shown below.
TORQUE
Rear Engine Mount Fasteners:
45 ft-lbs (61 Nm)
11. Torque the rear transmission isolator fastener and nut
to specification.
TORQUE
Transmission Rear Isolator Fastener:
40 ft-lbs (54 Nm)
12.Remove the piece of 1 x 4 inch plywood under the
engine.
13.Connect all connectors at the transmission. Refer to
Transmission Harness in Engine Harness Routing
page 4.3.
14.Install the transmission vent line. Refer to
Transmission Vent Line Routing page 7.15.
15.Connect the shift cable from the transmission. Refer
to Shift Cable Service page 7.9.
16.Connect the rear propshaft from the transmission.
Refer to Rear Prop Shaft Removal page
17.Install the inner clutch cover. Refer to Inner PVT
Cover Service page 6.11
18.Install the intake manifold. Refer to Intake Manifold
Service page 3.16.
