7
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
7.21

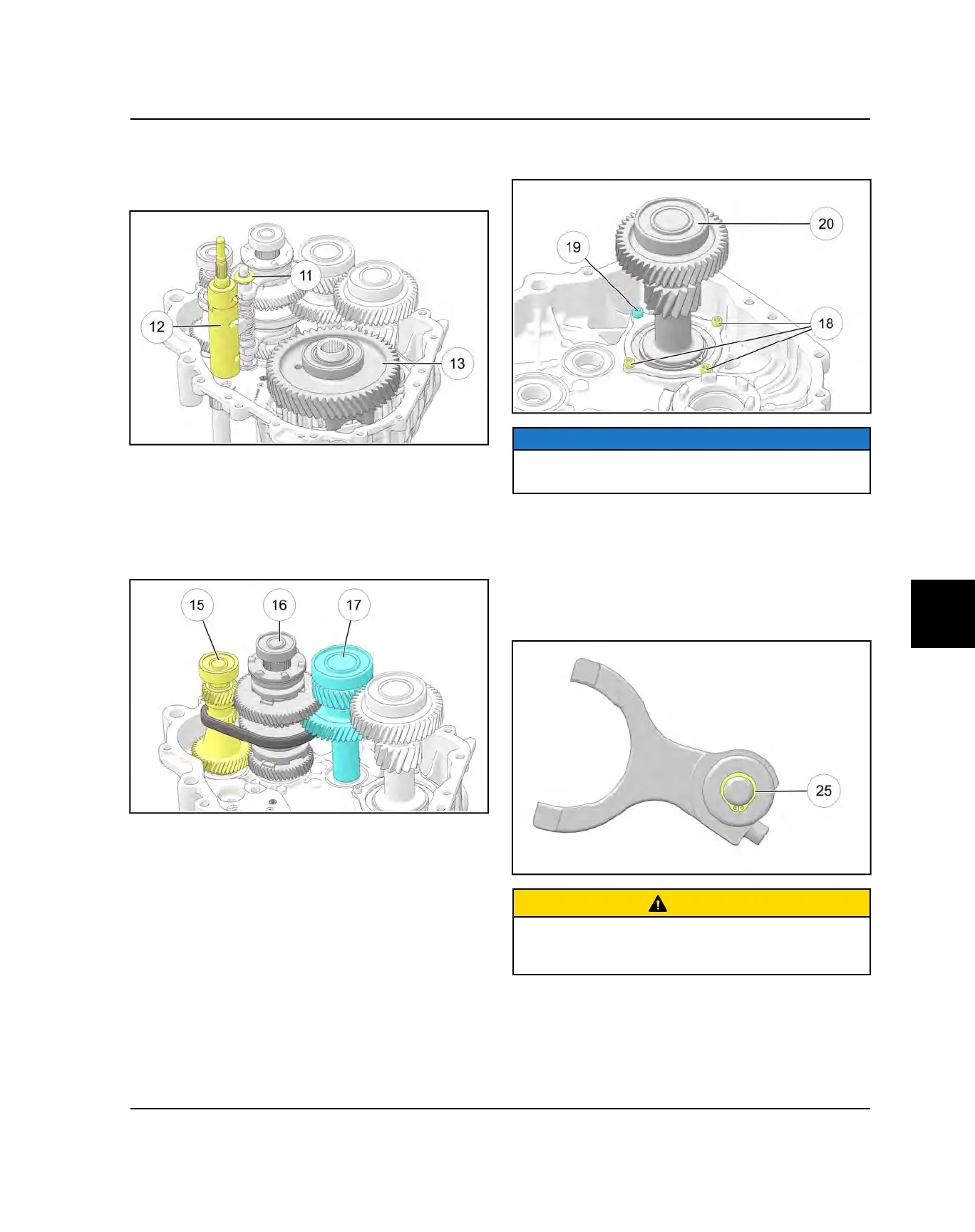

9. Lift up on the shift shaft rail
s
and move the rail
assembly rearward to allow the shift fork pins to be
removed from the shift drum
d
. Remove the shift
drum from the transmission housing.
10.Remove the shift shaft and forks as an assembly.
11. Remove the differential assembly
f
by lifting
underneath the gear or by tapping the shaft from the
opposite side.
12.Remove the input shaft assembly
h
, reverse shaft
assembly
j
, and idler shaft assembly
k
.
13.Remove the four screws retaining the pinion shaft
plate
l
.
NOTICE
One screw is longer
1(
and than the others and must be
put back in the correct location.
14.Remove the pinion shaft assembly
2)
.
15.Inspect all gear and shaft assemblies for damage.
16.Check the bearings for damage and that they are
easy to turn. Replace any questionable bearings.
17.To disassemble the shift shaft rail remove the snap
ring
2%
from the end of the shift rail on either side.
CAUTION
Use caution when disassembling the shift rail. The
compressed springs on the shift rail may pop off
causing injury.
18.Remove all seals from the gearcase halves and clean
the cases in preparation for assembly.
TRANSMISSION
