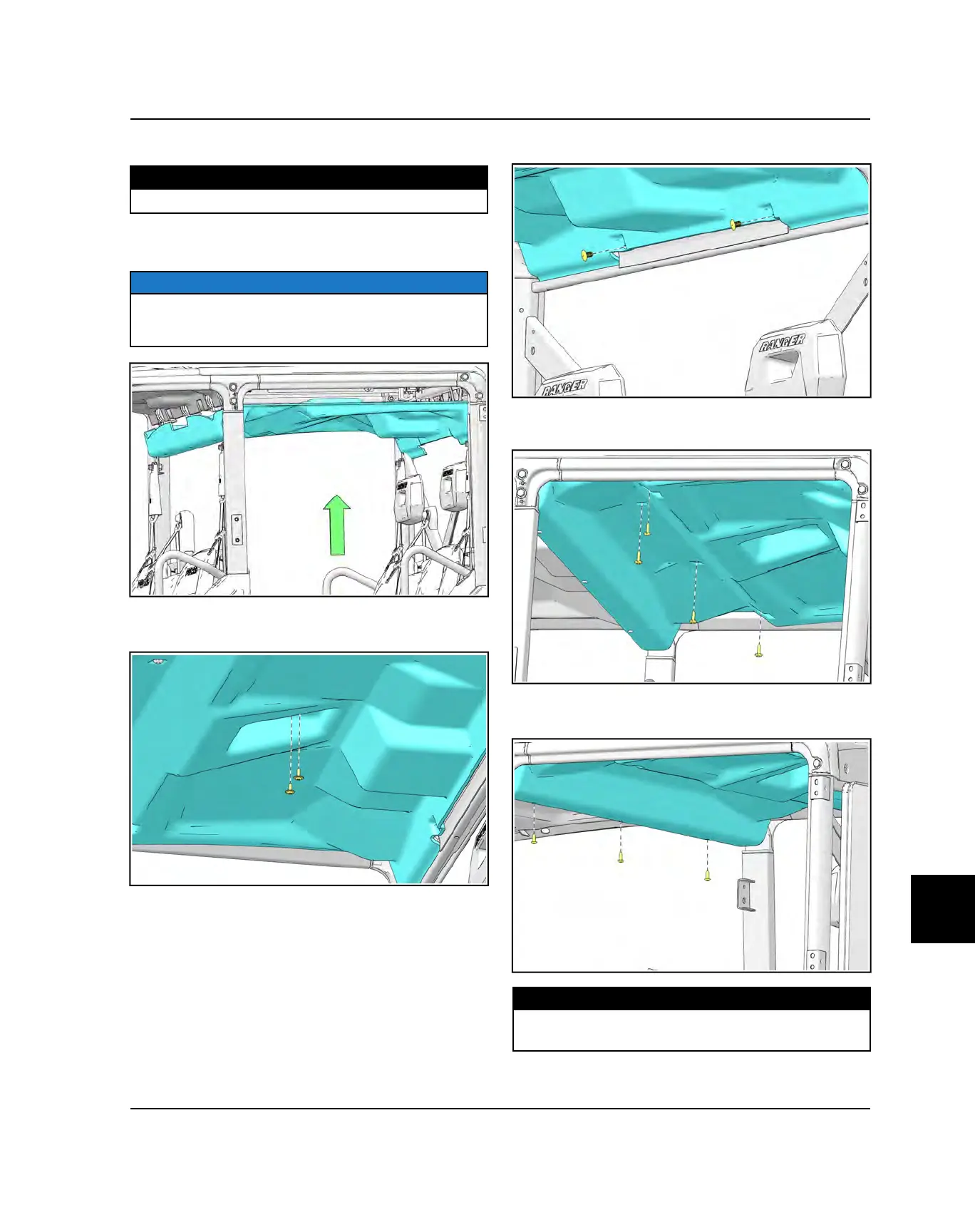

4. Torque the T30 fasteners in the front headliner.
TORQUE
24 in-lbs (3 N·m)
5. Install the rear headliner and tuck behind the ROPS
on both sides.
NOTICE
The rear headliner wraps over the center ROPS cross
bar and center headliner will be under the rear
headliner.
6. Loosely install the two T25 fasteners and washers
retaining the center of the headliner to the roof.
7. Install the two rear push rivets.
8. Loosely install the four T40 Torx fasteners securing
the rear headliner to the roof.
9. Install the three fasteners retaining the front of the
rear headliner to the roof. Torque to specification.
TORQUE
Rear Headliner Fasteners:
42 in-lbs (5 Nm)
