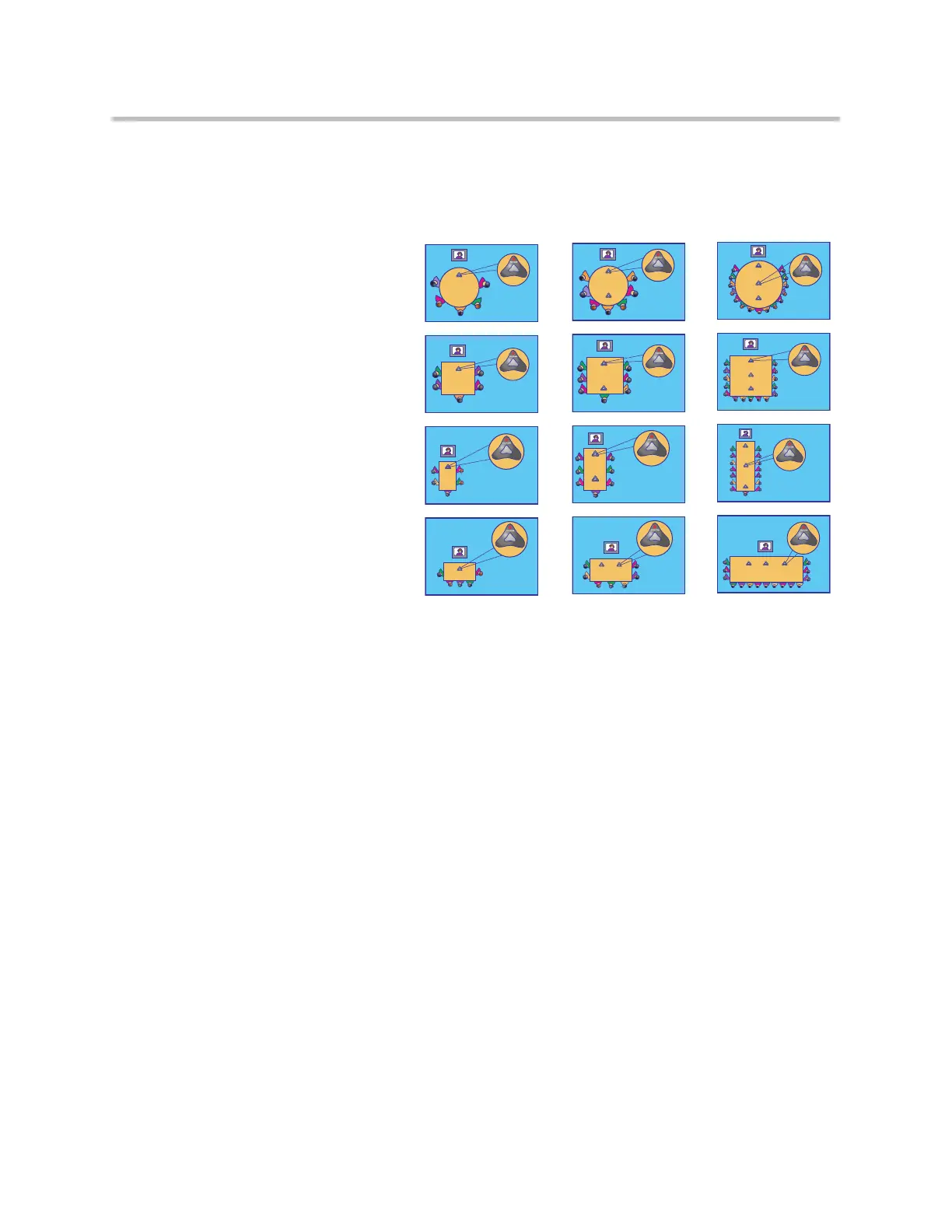

The following illustrations show microphone placement for different room
layouts.
Place microphones so that:
• The logo on each microphone points toward the monitor.
• The microphone closest to the monitor is parallel with, or in front of, the
person nearest the monitor.
After you power on the system, you will need to configure the system to send
stereo as described in StereoSurround Settings on page 4-14.
Connecting a SoundStation VTX 1000 to a Set-top or Component System
You can connect a SoundStation VTX 1000 conference phone in place of a
Polycom microphone. In large rooms, you may also need to use the extension
microphones provided with the SoundStation VTX 1000. Refer to your
system’s setup sheet and the setup sheet provided with the
SoundStation VTX 1000 for connection details.
You can use a Polycom microphone or a SoundStation VTX 1000 with the
system, but the two may not be used together.
To take advantage of the latest integration features, the VSX system requires
version 8.0 or later software and the SoundStation VTX 1000 requires version
1.5 or later software.
Square Table
Long Table
Wide Table
Round Table
One Microphone
Two Microphones
Three Microphones
