! Adjusting the contrast and brightness
of the display
These adjustments are made on the 21700634
synoptic card.
The contrast adjustment is made with
potentiometer T1, and the brightness
adjustment with potentiometer T2.

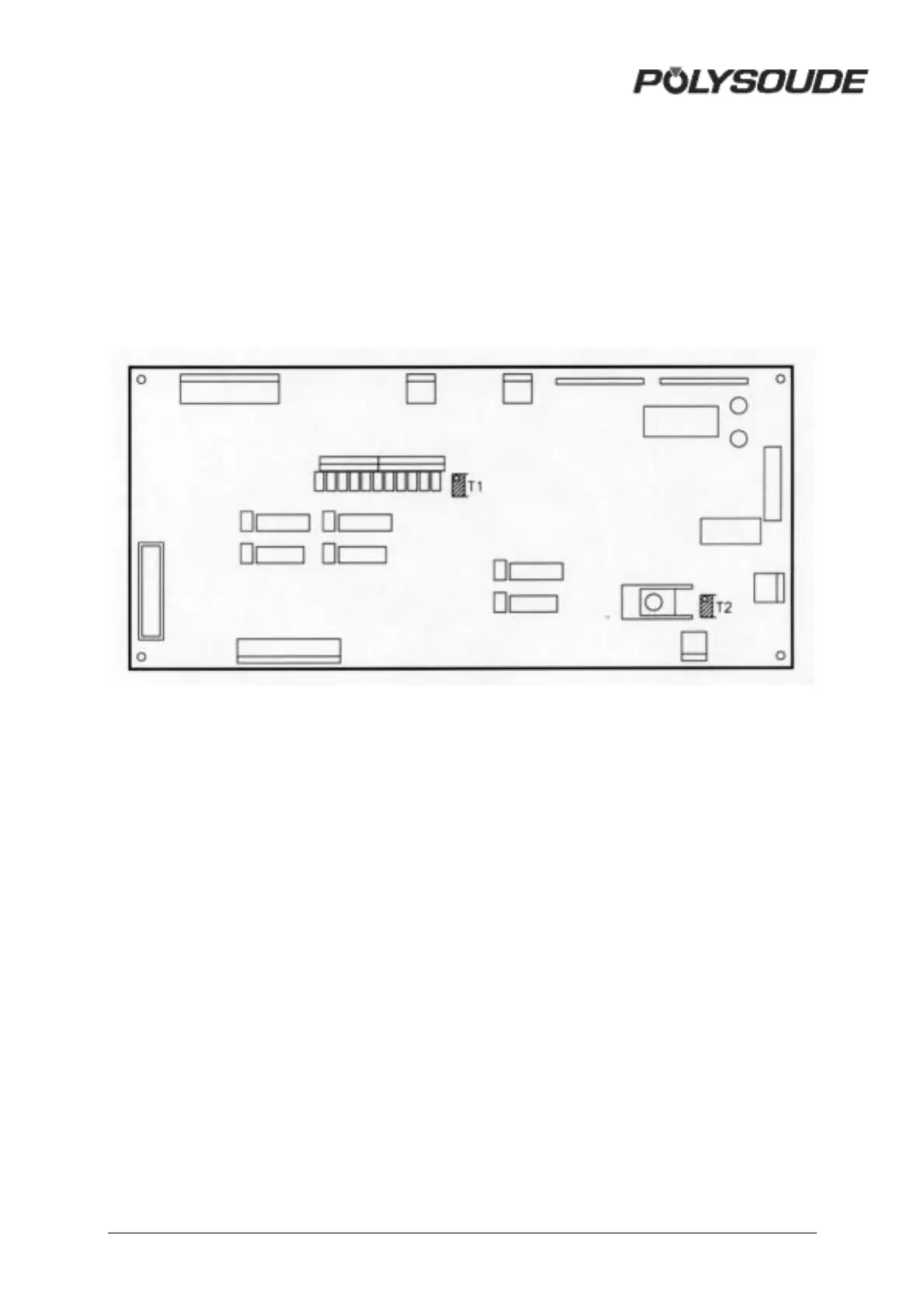

Fig. 4.5 : Adjusting the contrast and
brightness of the display (synoptic card
21700634)
