Poseidon SE7EN+ User Manual Chapter 1 Page 14
2. Cylinder attachment
Cylinder QMR.
The Cylinder Quick Mount Release (QMR) attaches your cylinders even quicker then before
and with a perfect t every time, just as you want them to be.

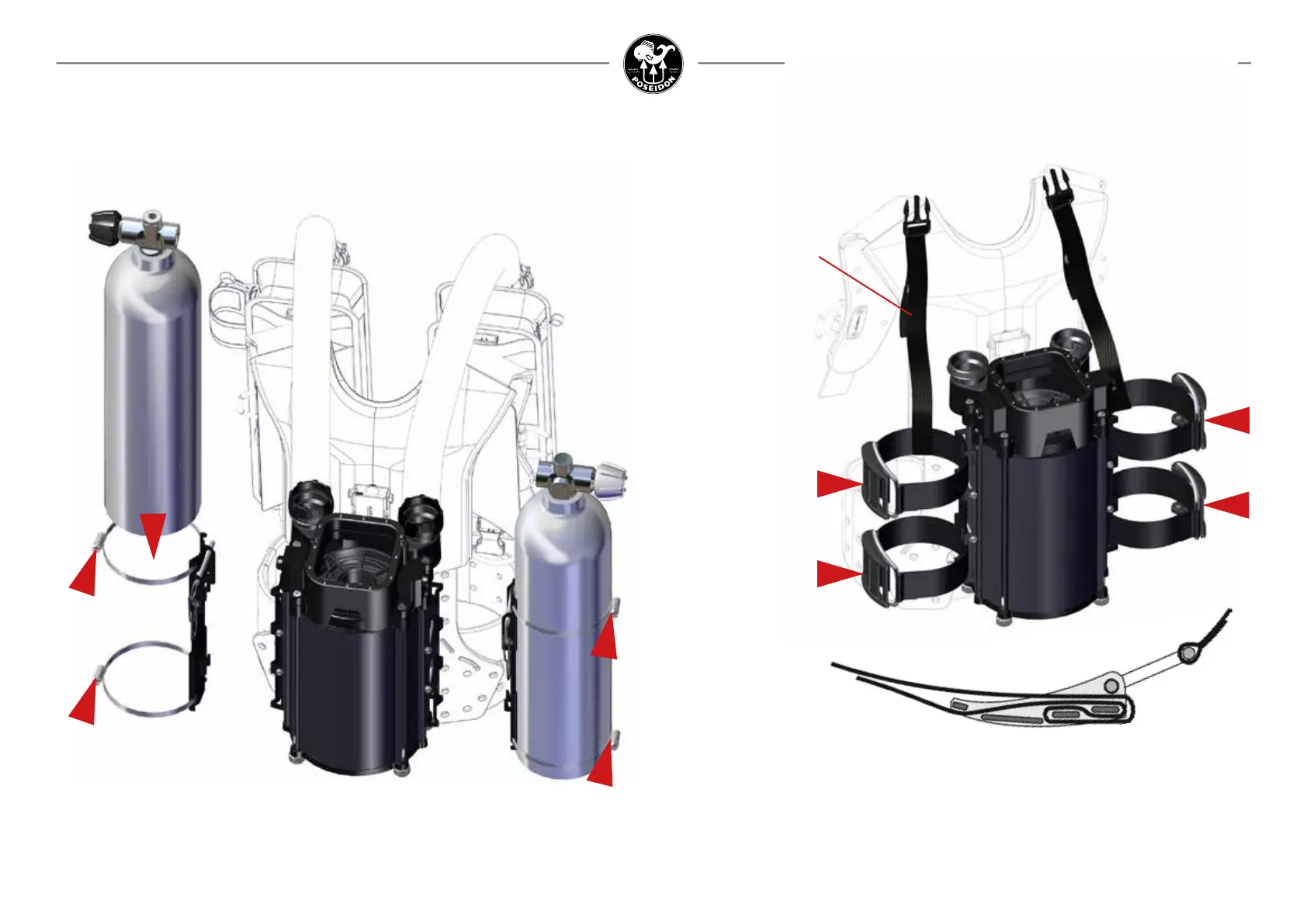

Figure 1-16.
Thread the tank band through the tank band bracket and in to the buckle (see gure).
Adjust the length of the tank band so it ts on the tanks you intend to use with your
Poseidon SE7EN+. Properly adjusted, the tanks should be rmly attached, not being able to
move in the tank band, when the buckle is closed and secured around the tank.
Tank Band Standard.
Counterlung straps
Figure 1-15.
Mount QMR on the left and right cylinder with release pins facing backwards.
Adjust the height matching to SE7EN+ cover.
The Diluent (black knob) tank is mounted on the unit’s left hand side and the oxygen (white
knob) is mounted on the unit’s right hand side.
