Poseidon SE7EN+ User Manual Chapter 1 Page 26
Long braided 90 cm
Low Pressure hose
9/16” connection

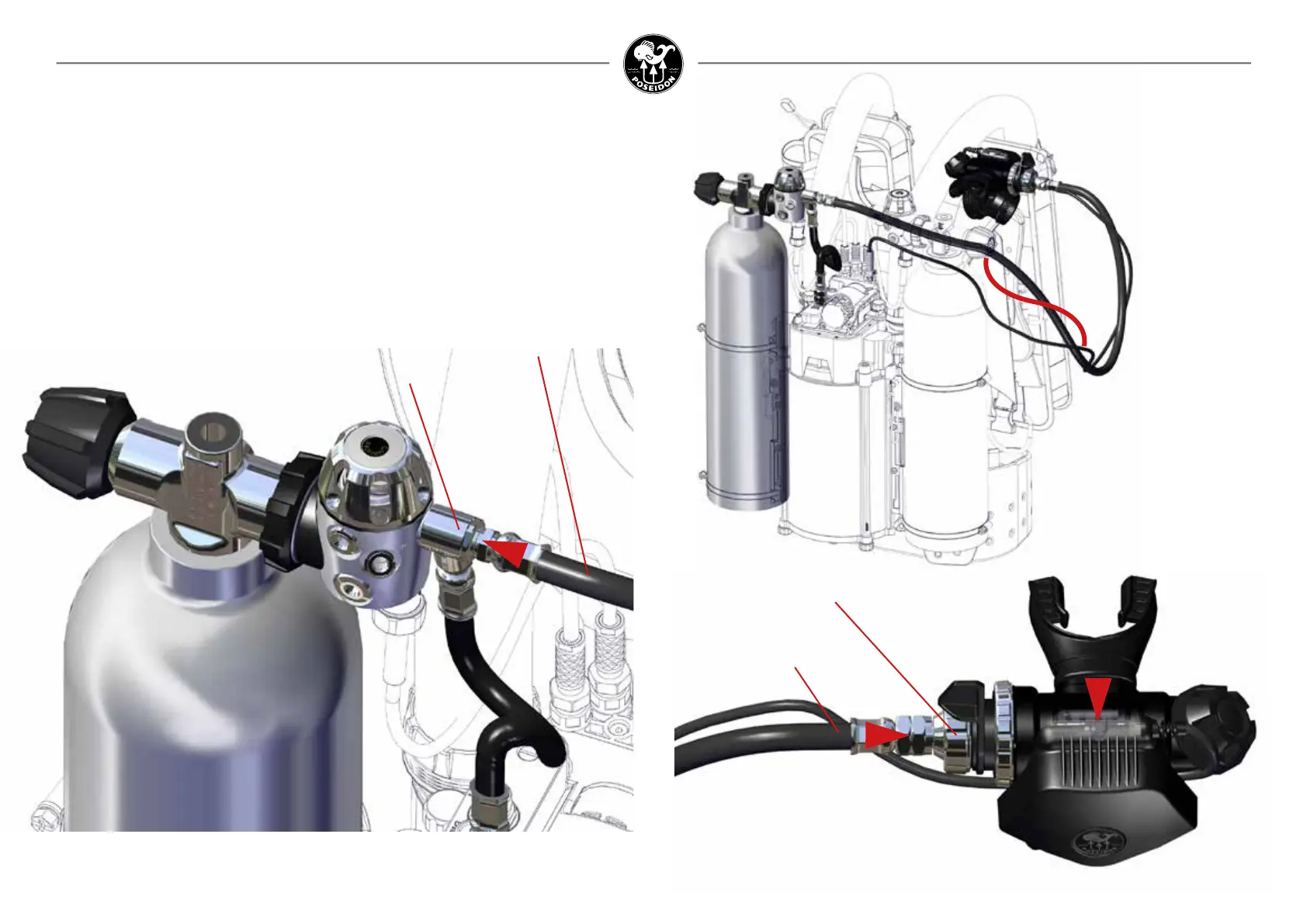

9. LP hose & HUD to mouthpiece
Connect the long braided 90 cm Low Pressure hose to a IP port on the diluent 1st stage.
See Figure 1-42. Make sure the connection o-ring is in place and without damages.
Connect the long braided 90 cm Low Pressure hose to the 9/16” connection on the mouth-
piece. See Figure 1-44.
Twine the HUD cable located on the E-Module around the braided 90 cm hose and attach the
HUD to the moutpiece and make sure it is properly secured. See Figure 1-43 and 1-44.
Long braided 90cm
Low Pressure hose
Diluent 1st stage IP port
Figure 1-42.
Connect the long braided 90 cm Low Pressure hose to the diluent 1st stage IP port.
Figure 1-44.
Connect the long braided 90 cm Low Pressure hose to
the mouthpiece and attach the HUD to the mouthpiece.
Figure 1-43.
Twine the HUD cable around
the braided 90 cm hose.
