© 2006 Schneider Electric All Rights Reserved
PowerLogic
®
Series 800 Power Meter 63230-500-224A1
Chapter 1—Introduction 6/2006
EN–4
ENGLISH
Power Meter Without Display

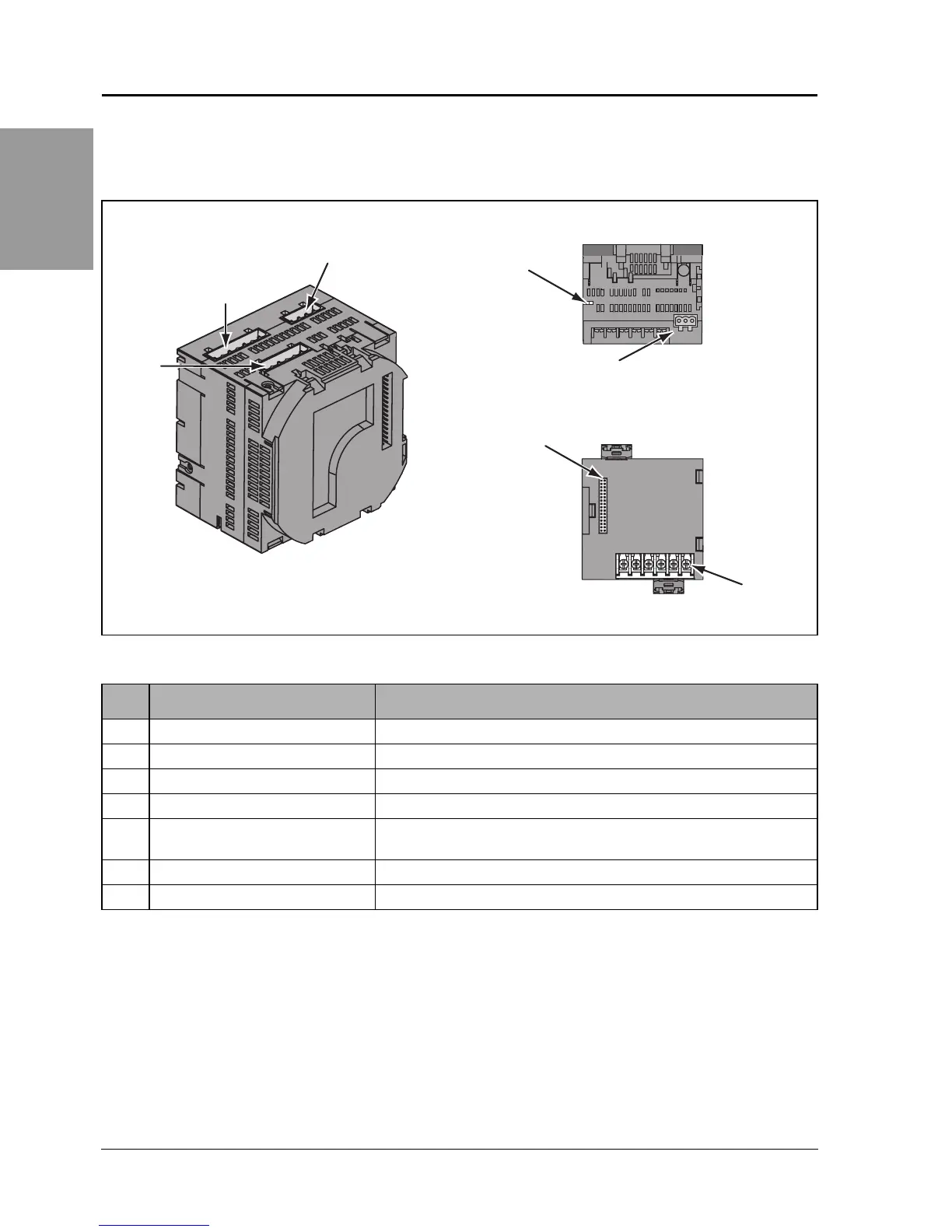

Figure 1 – 2: Parts of the Series 800 Power Meter without display
1
2
3
5
6
7
4
Bottom View
Back View
PLSD110317
Table 1 – 3: Parts of the Series 800 Power Meter Without Display
No. Part Description
1 Control power supply connector Connection for control power to the power meter.
2 Voltage inputs Voltage metering connections.
3 I/O connector KY pulse output/digital input connections
4 Heartbeat LED A green flashing LED indicates the power meter is ON.
5 RS485 port (COM1)
The RS485 port is used for communications with a monitoring and
control system. This port can be daisy-chained to multiple devices.
6 Option module connector Used to connect an option module to the power meter.
7 Current inputs Current metering connections.
