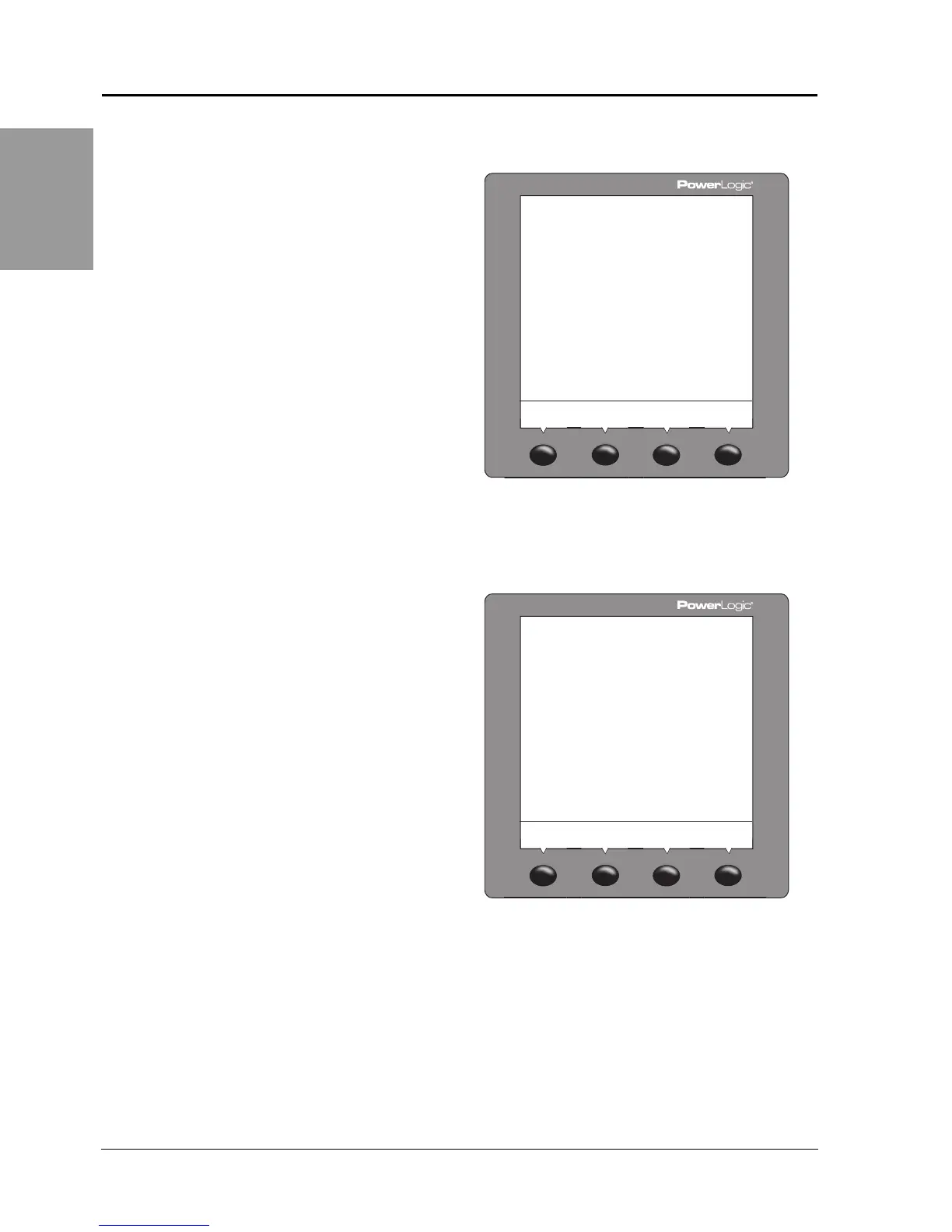

Set Up PTs
Set Up Frequency
1. Press ###: until METER is visible.
2. Press METER.
3. Press PT.
4. Enter the SCALE value: x1, x10, x100, NO
PT (for direct connect).
5. Press OK.
6. Enter the PRIM (primary) value.
7. Press OK.
8. Enter the SEC. (secondary) value.
9. Press OK.
10. Press
1; until you are asked to save your
changes.
11. Press YES to save the changes.

042!4)/
  /+



02)-
3#!,%
3%#
8
PLSD110112
1. Press ###: until METER is visible.
2. Press METER.
3. Press
###: until HZ is visible.
4. Press HZ.
5. Select the frequency.
6. Press OK.
7. Press
1; until you are asked to save your
changes.
8. Press YES to save the changes.

3934%-&QDPTD.BX
  /+


(Y
&2%1

PLSD110109
