CHAPTER 6—OPERATION
This section explains how to use a display with a power meter. For a
list of all power meter models using an integrated display or a remote
display, see Table 1 – 5 on page EN–6.
Operating the Display
The power meter is equipped with a large, back-lit LCD display. It can
display up to five lines of information plus a sixth row of menu
options. Figure 6 – 1 shows the different parts of the power meter.
How the Buttons Work
The buttons are used to select menu items, display more menu items
in a menu list, and return to previous menus. A menu item appears
over one of the four buttons. Pressing a button selects the menu item
and displays the menu item’s screen. When you have reached the
highest menu level, a black triangle appears beneath the selected
menu item. To return to the previous menu level, press the button

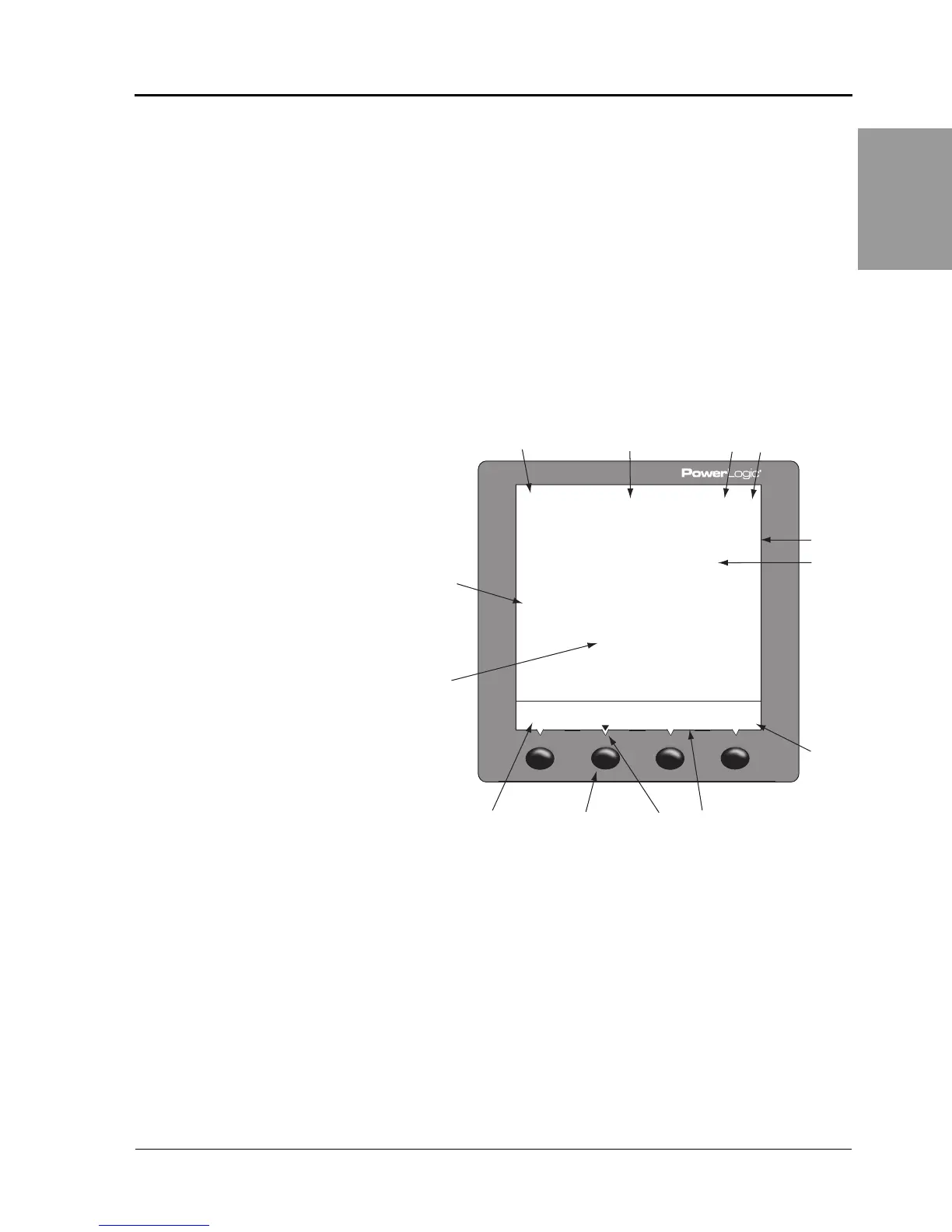

Figure 6 – 1: Power Meter Display
A. Type of measurement
B. Screen Title
C. Alarm indicator
D. Maintenance icon
E. Bar Chart (%)
F. Units
G. Display more menu items
H. Menu item
I. Selected menu indicator
J. Button
K. Return to previous menu
L. Values
M. Phase
0(!3%
!-030%20(!3%
!
)$-$
ZZZZZ\\\\\\
!
!
!
"
#
.
)
!
ZZZZZ\\\\\\
ZZZZZ\\\\\\
ABCD
E
G
HIK
L
M
J
F
PLSD110097
