PowerLogic PM820 User Manual

© 2006 Schneider Electric All Rights Reserved
63230-500-224A1 PowerLogic
®
Series 800 Power Meter
6/2006 Chapter 4—Wiring
EN–29
ENGLISH

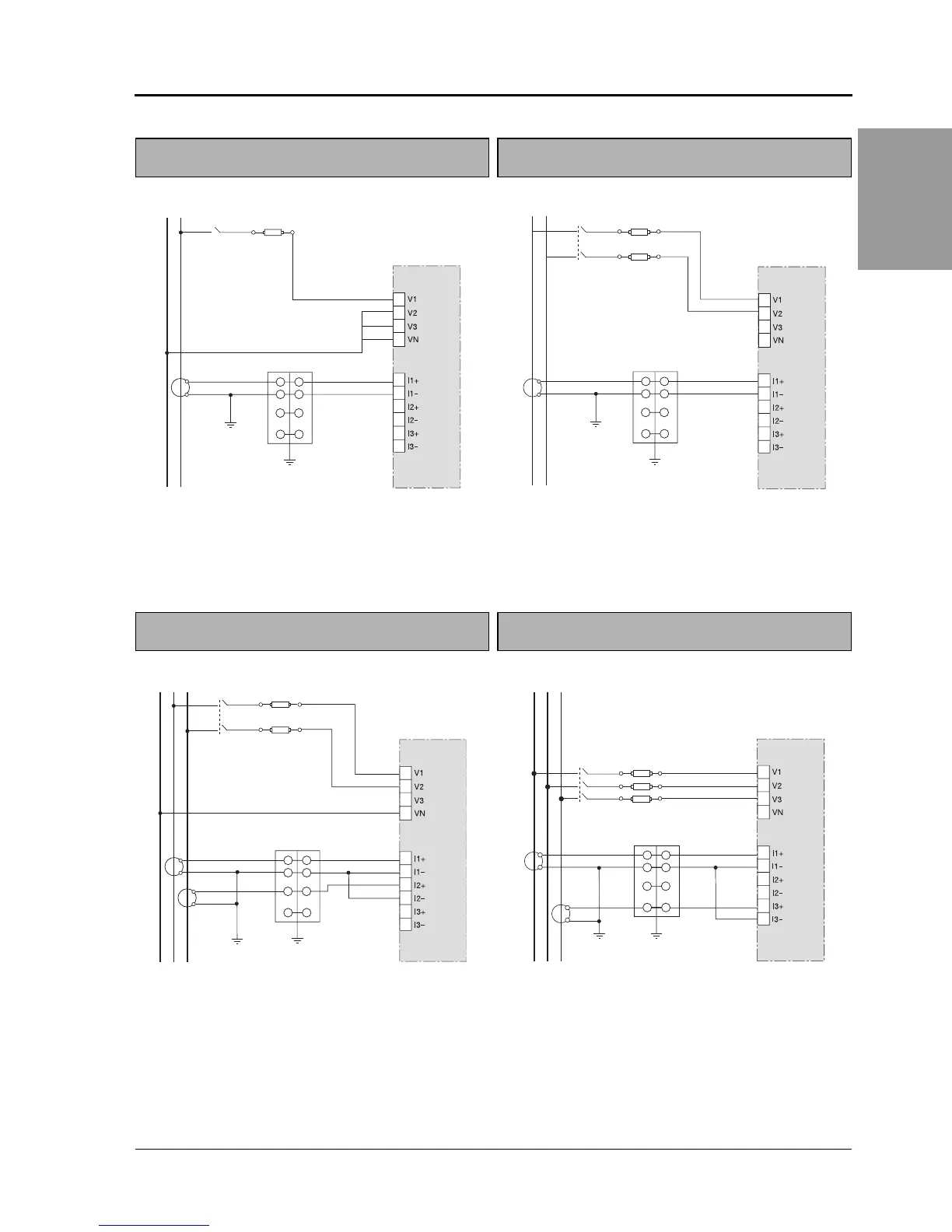

Figure 4 – 1: 1-Phase Line-to-Neutral 2-Wire
System 1 CT
Figure 4 – 2: 2-Phase Line-to-Line 2-Wire System
1 CT
NOTES:
• To avoid distortion, use parallel wires for control
power and voltage inputs. Keep the fuse close to
the power source.
• Use system type 10.
NOTES:
• To avoid distortion, use parallel wires for control
power and voltage inputs. Keep the fuses close to
the power source.
• Use system type 11.
Figure 4 – 3: 2-Phase 3-Wire Direct Voltage
Connection 2 CT
Figure 4 – 4: 3-Phase 3-Wire 2 CT no PT
NOTE:
• To avoid distortion, use parallel wires for control
power and voltage inputs. Keep the fuses close to
the power source.
• Use system type 12.
NOTES:
• Use system type 30.
NL1
PM800
8
9
10
11
12
13
14
15
16
17
S2
S1
PLSD110051
PM800
L1 L2
8
9
10
11
12
13
14
15
16
17
VL-L=< 600V
S2
S1
PLSD110050
L1 L2N
PM800
8
9
10
11
12
13
14
15
16
17
S2
S1
S2
S1
PLSD110049
L1 L2 L3
PM800
8
9
10
11
12
13
14
15
16
17
S2
S1
S2
S1
PLSD110054
