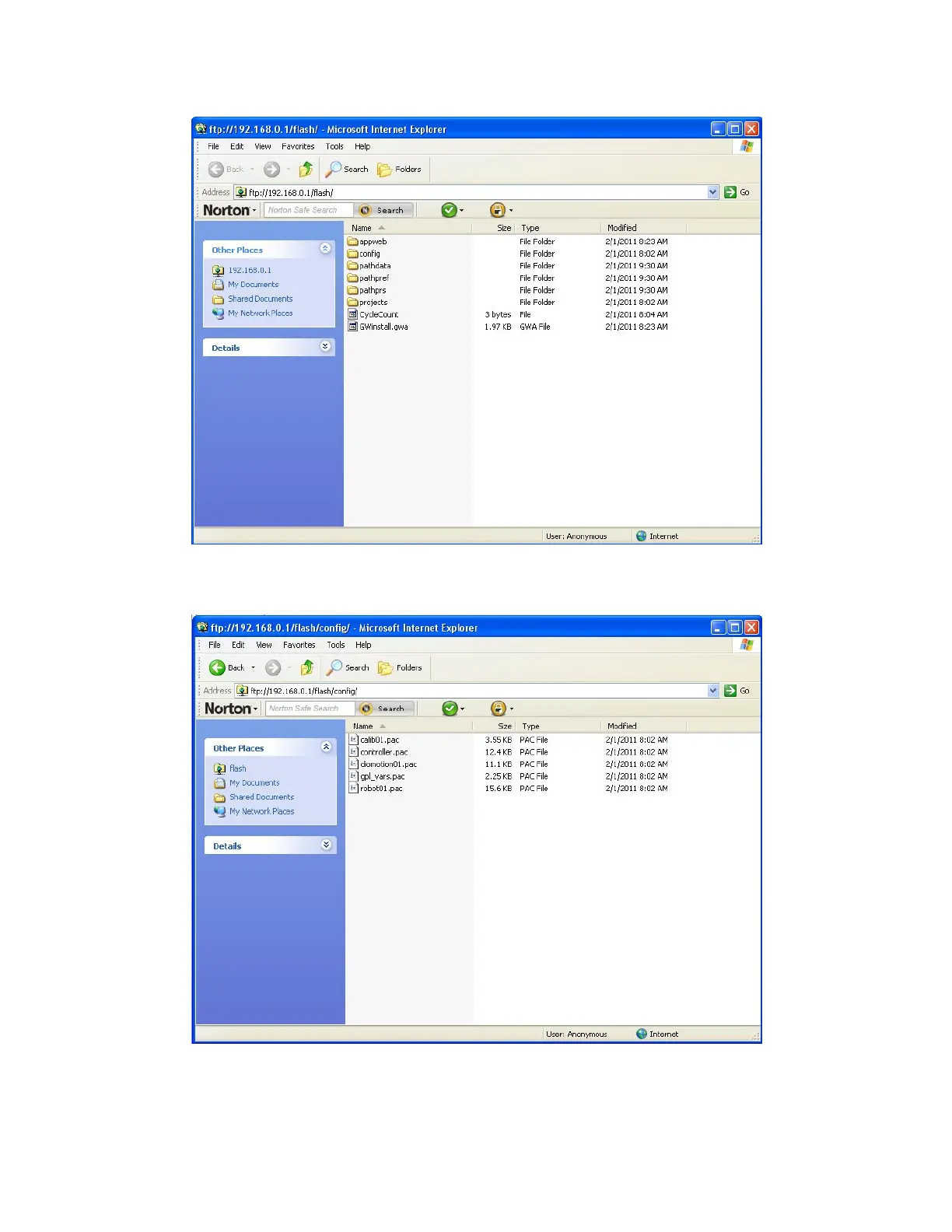

7. Open the “Config” folder and paste the backup copy of the PAC files into this folder.

8. Wait until the console prompt stops flashing, about 10-15 seconds.

9. Turn off robot power.
