Master Section 4.74.6 Main Output Bus
Subgroup Meters Displays the Level of the Subgroups.
In the upper-right corner of the StudioLive are the Subgroup meters, which display
the levels of the subgroup outputs.
4.6 Main Output Bus
Main Select Button Enables Fat Channel Viewing.
As previously described in Section 4.1.1, the Select button routes
its channel through the Fat Channel, allowing you to add
dynamics processing, EQ, panning, etc.
Main Fader Controls the Level of the Main Output.
The fader controls the overall level of the main stereo output.
The white area above the fader can be used as
a scribble strip Use only oil pencils. Other types
of pens or pencils cannot be wiped o.
To clean the scribble strip, use a lightly damp cloth to remove the
writing Spit works pretty well, too.
Main Bus Meters Displays the Level of the Main Output.
In the upper right corner of the StudioLive are the Main meters,
which display the output levels of the main stereo bus.

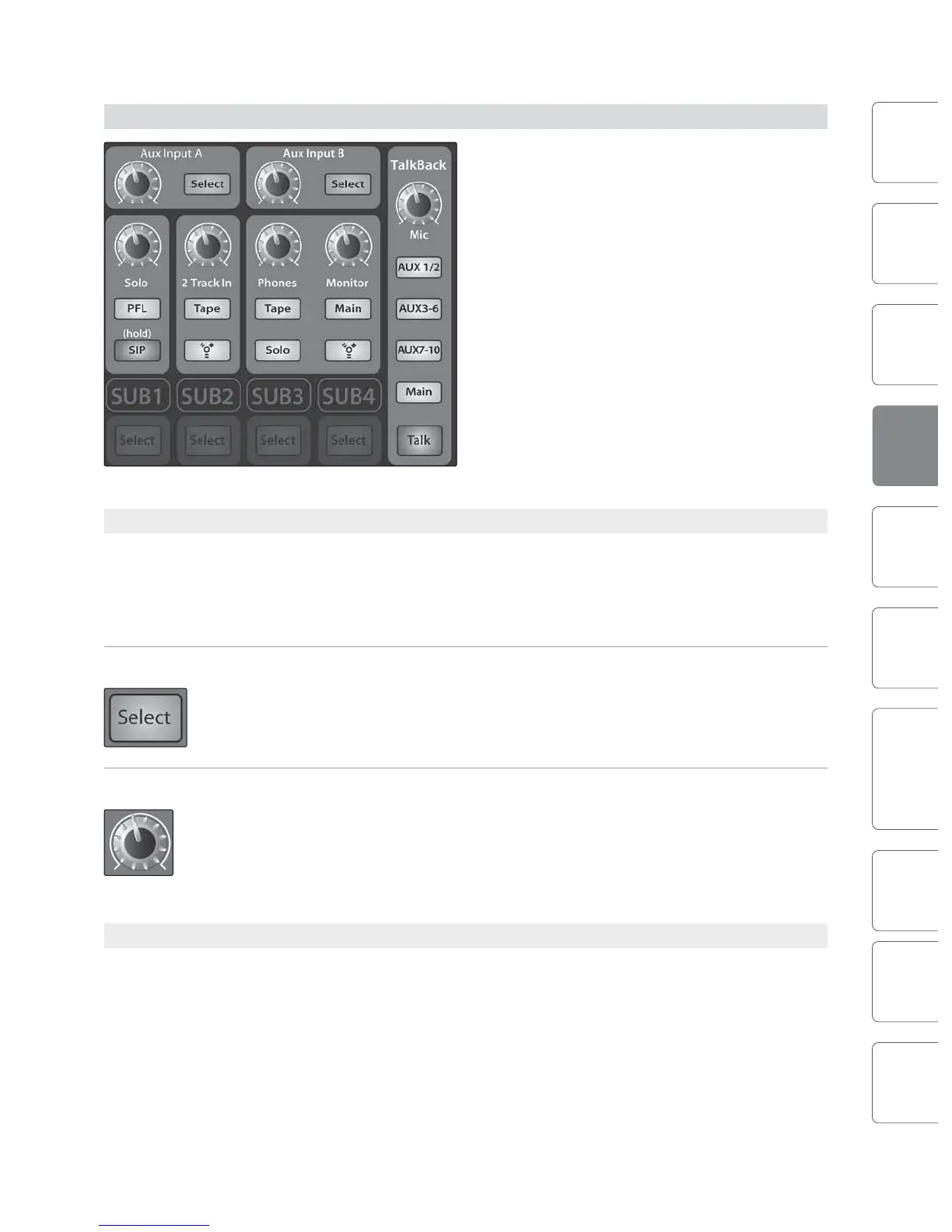

4.7 Master Section
The Master section of the StudioLive controls the
monitoring, talkback output, solo bus, and aux and
tape inputs.
4.7.1 Aux Inputs A and B
The StudioLive features an internal eects processor that allows you to
load two dierent eects at the same time. You also can patch processed
return signals from an external eects processor using Aux Inputs A and B.
Section 8.5 goes into the connections and procedures in greater detail.
Aux Input Select Button Enables Fat Channel Viewing.
As previously described in section 4.1.1, the Select button routes its channel
through the Fat Channel, allowing you to add dynamics processing, EQ, and
panning, as well as enable output assignments.
Aux Input Level Control Controls the Signal Level of the Aux Input.
This knob controls the overall volume of the of the Aux Input signal.
4.7.2 Talkback System
The StudioLive features a Talkback microphone input on the back panel. This can
be routed to the aux outputs and to the mains. It is important to note that the
aux outputs are grouped in this section. For example, if you are using Aux 3 as
mono monitor send to the bass player’s oor wedge and Auxes 5 and 6 as the
stereo send to the keyboard player’s in-ear monitors, the talkback signal will be
sent to both monitors—so don’t say anything you wouldn’t want both to hear!
