VSL: Virtual StudioLive 7.2
SOFTWARE : Universal Control, Capture, and Studio One Artist 7
7.2 VSL: Virtual StudioLive
7 SOFTWARE: Universal Control, Capture, and Studio One Artist
7.2.2 VSL: Overview Tab
At the top of the VSL window, you will see four tabs: Overview,
Channel, GEQ, and Setup. The Overview tab provides you with a
complete graphical representation of your StudioLive. As you adjust
parameters on the StudioLive, you will notice that the VSL overview
is also updated. If you use your mouse to adjust a parameter in VSL,
the StudioLive will be updated remotely. It is important to remember
that every button, knob, slider, and fader on the VSL corresponds
directly to a button, knob, slider, or fader on your StudioLive.

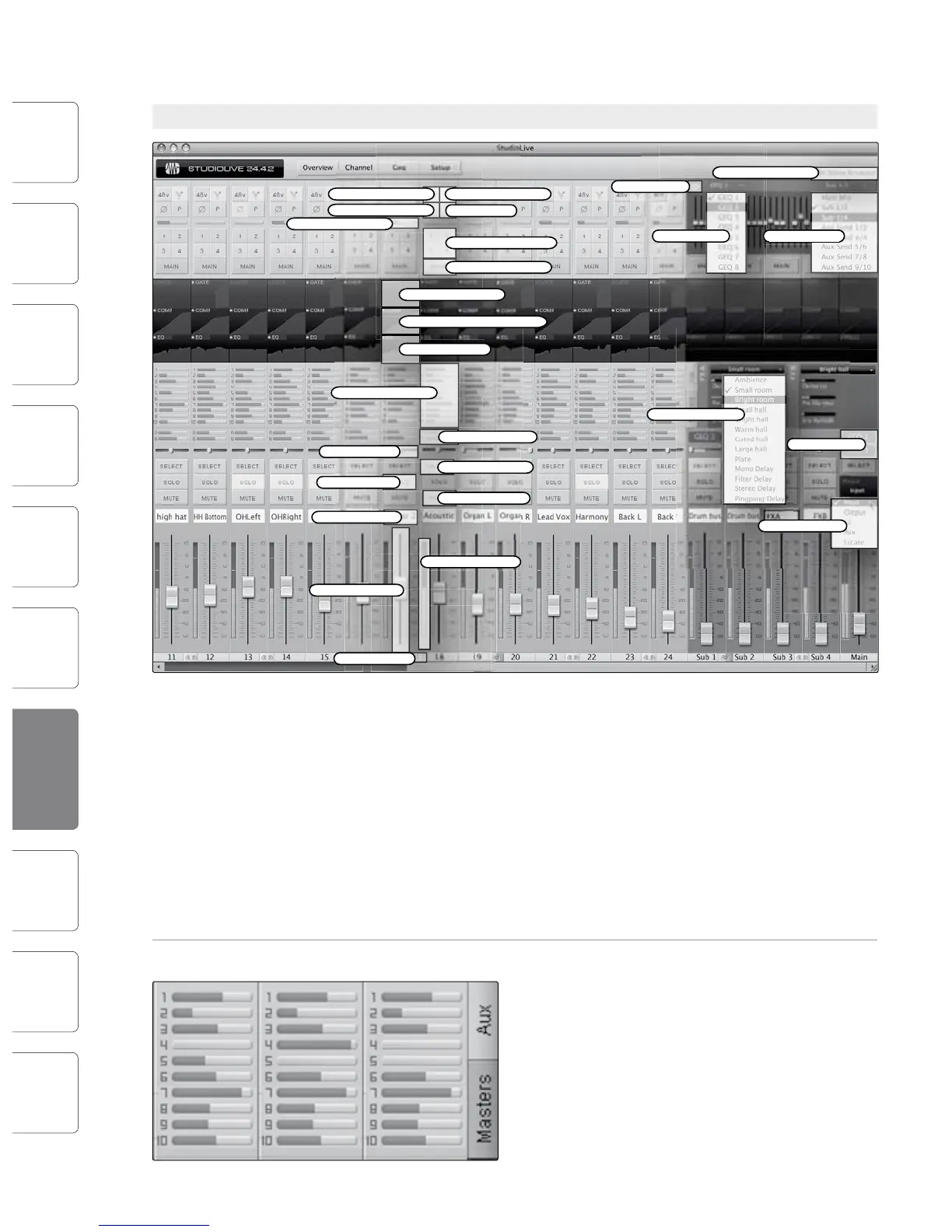

The graphic above identies each controller labeled with its
corresponding control on the StudioLive and can be used as a
map to quickly learn how to navigate the Overview Tab.
Aux Send View
VSL provides two views for your StudioLive Aux
Outputs and FX Buses. The Aux Send View gives you
an overview of the send levels of every channel on
your StudioLive to every Aux Output and FX Bus.
To quickly set up an aux mix, use your mouse to set the
send level for Channel 1. Right-click on the Channel
1 send level and sweep your mouse across the other
channel sends for that Aux. The set send level will
be copied to every other channel for that Aux.
FireWire Return
Digital Out
Phantom Power
Phase Reverse
High Pass Filter
Subgroup Assign
Main Bus Assign
Gate Microview
Compressor Microview
EQ Microview
Aux Send Levels
FX Send Levels
Pan Control
Channel Select
Channel Solo
Channel Mute
Scribble Strip
Channel Level
Channel Meter
Stereo Link
Meter Mode
FX Type Menu
Focus GEQ
GEQ AssignFocus GEQ
Enable GEQ
GEQ As
sig
n
Display Browser
Masters View
The Masters View displays the controls for each Aux
Output and FX bus just as they are on your StudioLive.
The Masters View also displays the send levels for the
Aux Flip Mode Channels (Main FireWire Return, Tape
Input, Aux In A & B, FXA, FXB, and Talkback). From
within the Masters View, you can also Select each Aux
and FX bus to edit its Fat Channel insert.
GEQ in Focus
In general, most Graphic EQ settings will be created prior to any live show
and not adjusted after that. However, sometimes minor adjustments must
be made later. VSL makes this quick and easy You will have noticed that
there is a GEQ above the Master section on the Overview tab You can
focus any GEQ here by one of three ways:
t Select a GEQ on the GEQ Tab. For example, if you leave GEQ 5/6 in focus
on the GEQ tab and switch back over to the Overview tab, you will still be
able to adjust it using the Focus GEQ above the Master Section.
t Select the GEQ from the GEQ Focus Menu. In the upper left corner of
the GEQ in Focus, you will nd a pull-down menu From this menu, you
can select any of the eight GEQs to pull into focus on the Overview tab.
t Click on a Focus GEQ button. Once a Graphic EQ has been inserted on
an Aux, Subgroup, or Main, a Focus GEQ button will be displayed above
that bus. (Note: For Auxes, Focus GEQ buttons are displayed in the
Masters View only.) Clicking on this button will pull that bus's inserted
Graphic EQ into focus on the Overview Tab.
