Printing from a PC 33

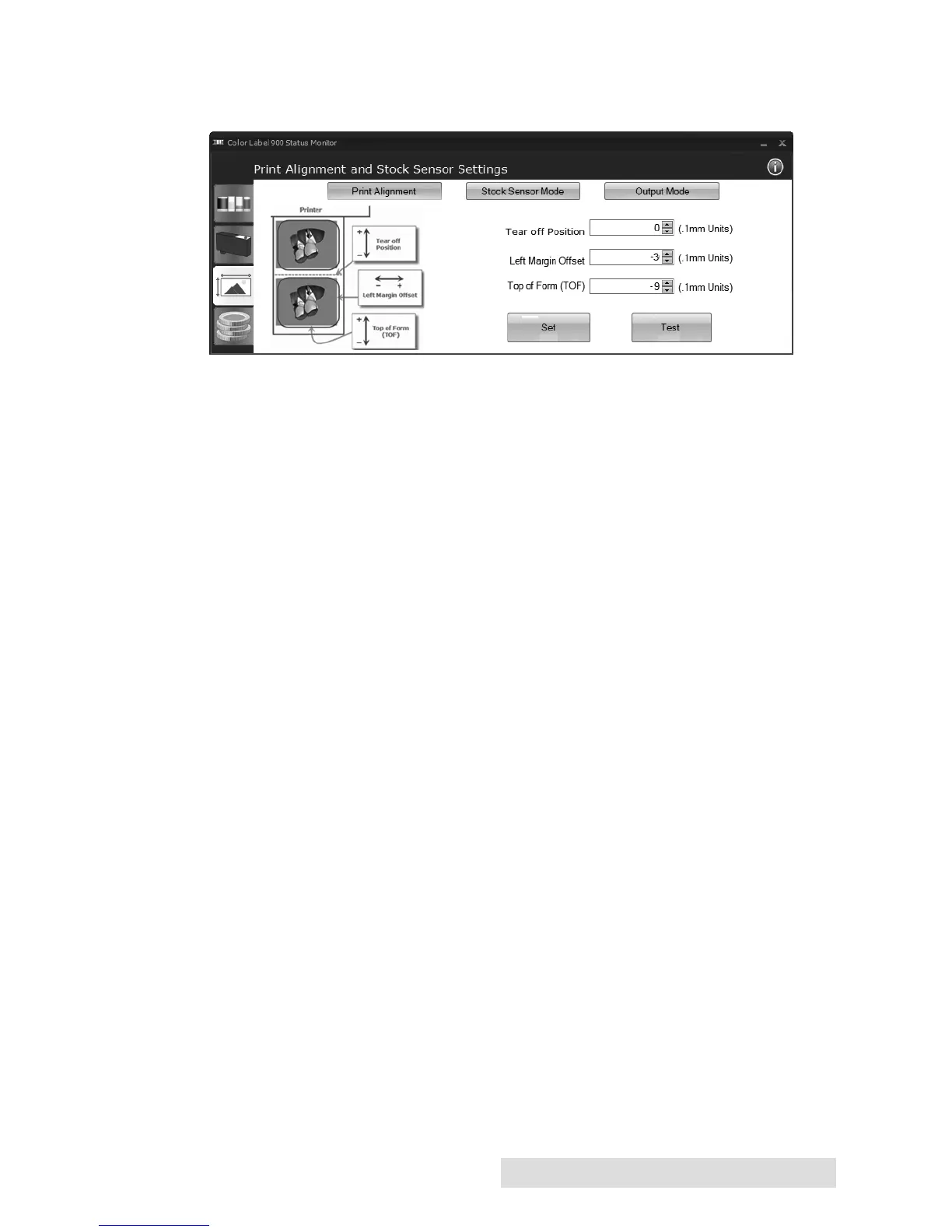

Adjust print alignment using the Status Monitor. Go to the
Alignment Tab (third tab).
Three items can be adjusted here:
• Tear off Position. This value adjusts the position of the last label
printed after it has been presented for tear off. This only applies
if the output mode is set to "Present the label." Add to the
current value to move the tear point closer to the printer.
Subtract from the current value to move the tear point away
from the printer. After adjusting the value click the "Set" button
to send the value to the printer.
• Left Margin Offset. This value moves the printed label left or
right. Add to the current value to move the printed label to the
right. Subtract from the current value to move the printed label
to the left. After adjusting the value, click the “Set” button to
send the value to the printer. Note: Before adjusting this value
make sure the label stock is properly loaded so that there is no
gap between the edge of the liner and the fixed throat guide.
Any gap at this point will greatly affect the Left margin offset
value needed to align the label. Also, if you adjust the value
with improperly loaded label stock you will have to adjust it
again if you load the label stock correctly the next time.
• Top of Form (TOF). This value moves the print start
position up or down on the label. Add to the current value to
move the printed label down or toward the printer. Subtract
from the current value to move the printed label up or away
from the printer. After adjusting the value click the “Set” button
to send the value to the printer.
