C. IDENTIFYING THE PARTS

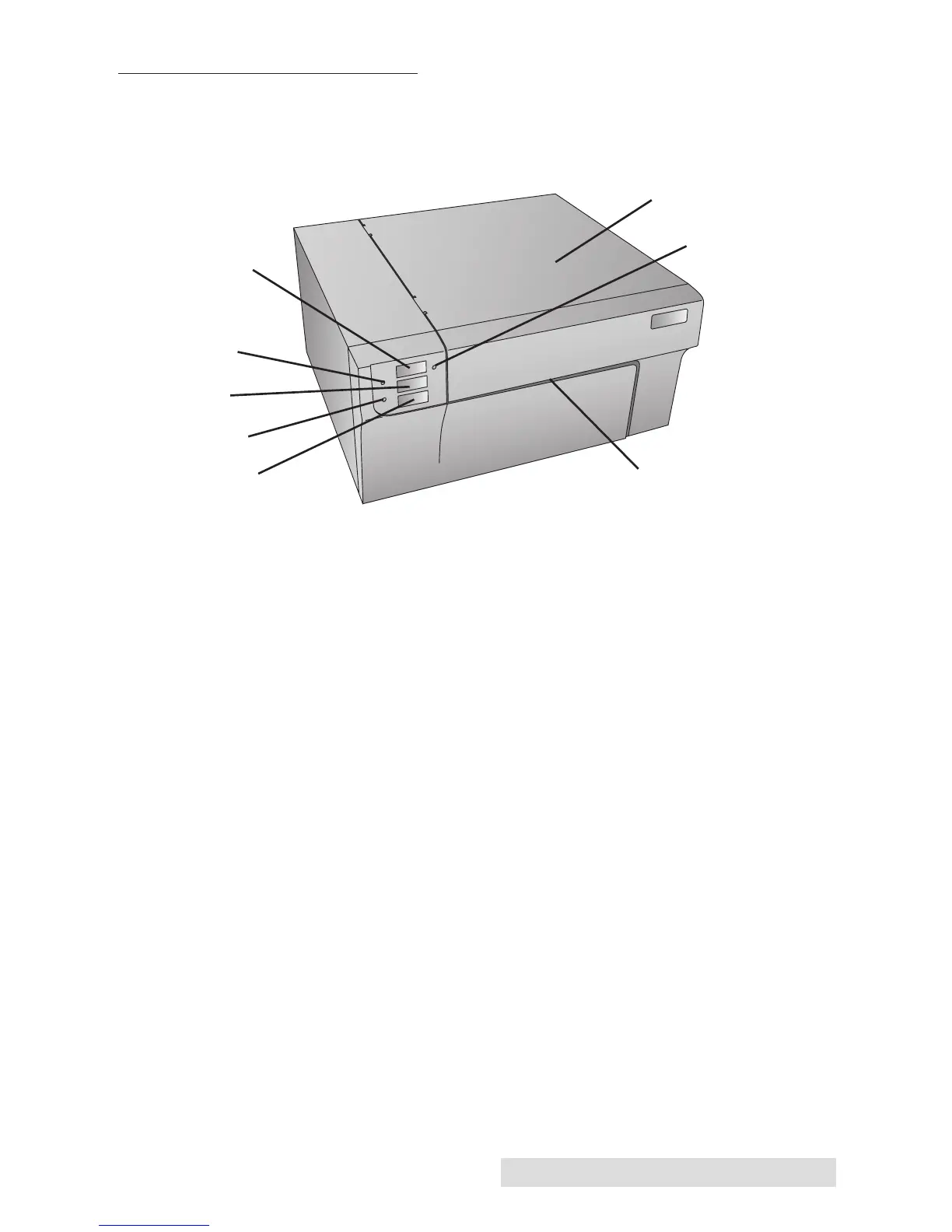

This illustration shows the front of the printer with its control
buttons and LED indicator lights.
The Pause Button pauses the printer AFTER the printing of the
current label has finished to allow for loading of label stock and ink
cartridge.
The Power LED indicates that the printer is on and ready to receive
print jobs.
The Load/Feed Button is pressed in order to load label stock if the
printer does not automatically detect the stock. When stock is loaded
each press of the button will cause one label to be fed from the
printer.
The Ink Low LED will illuminate when a cartridge has 10% or less
of its ink remaining.
The Unload Button will unload the installed label stock by reversing
it through the printer. Make sure to tear off the
printed labels before pressing the Unload Button.
The Label Tear Bar is a serrated edge for conveniently tearing your
finished labels from the printer. The printer comes with a white tear
bar guard. For smoother label feeding, leave the guard in place
during printing. When you are ready to tear off a label, remove the
guard, tear off the label and replace it.
Getting Started 3
Unload Button
Pause Button
Pause LED
Power LED
Load/Feed
Button
Ink Low LED
Label Tear Bar
Top Cover
