42 Printing from a Mac
Set the Stock Sensor Mode
The stock sensor mode refers to the method the printer will use to

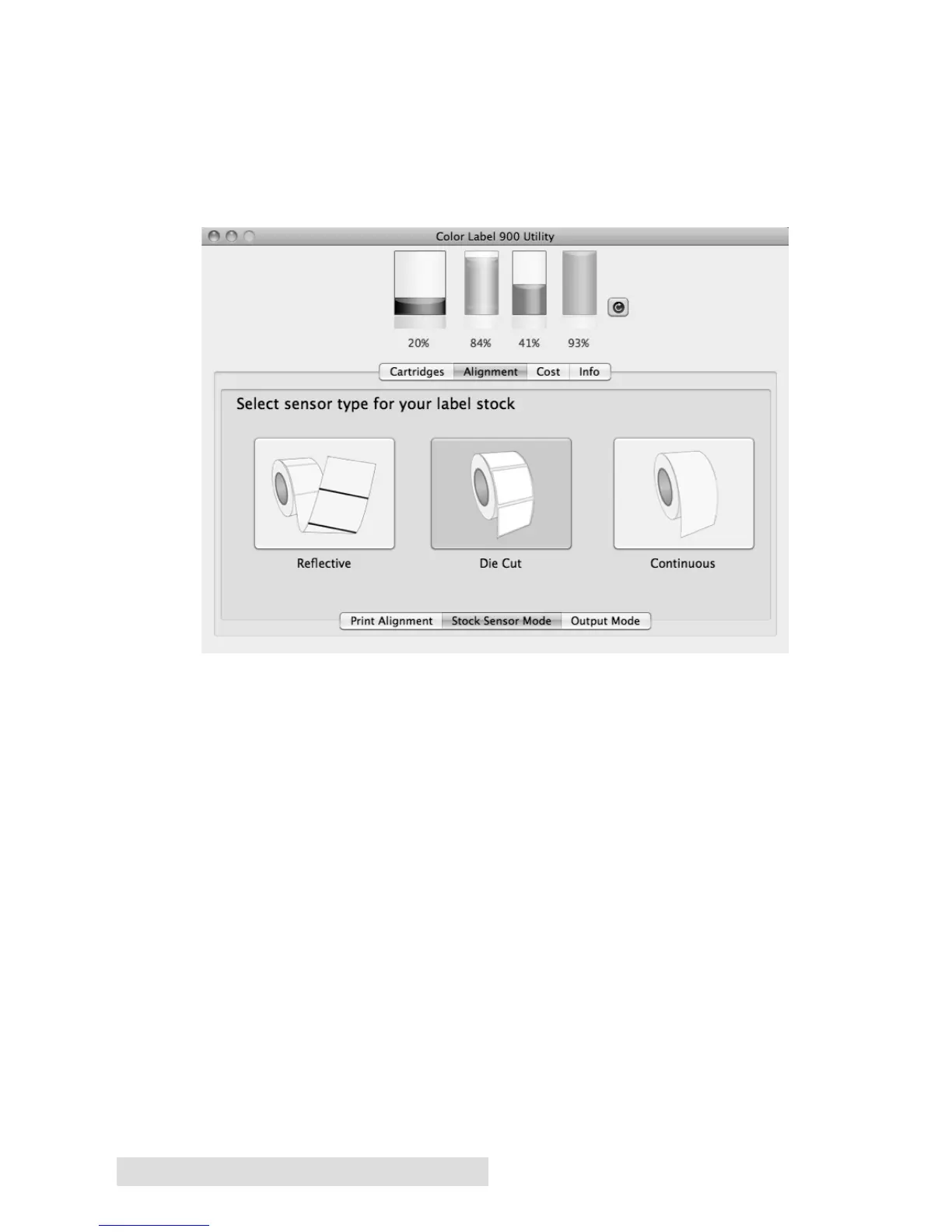

detect the print starting position for each label. To access the Stock
Sensor Mode, click on the Alignment button, then select Stock
Sensor Mode.
Important Note: Set the Stock Sensor Mode BEFORE loading label stock! You
must also set the Stock Sensor Position (Section 2C) so that the sensor is
sensing the correct point on the label stock.
Die Cut (Default). If you are using standard die-cut labels that look
similar to the graphic use this setting regardless of the size of the
label. Also, use this setting for through-hole label material where a
hold is punched through each label or a notch is cut on the side.
Reflective. Use Reflective for label material where a black pre-
printed line (black mark) on the back of the label stock indicated the
break between labels. Black marks are required on clear label stock
rolls, or labels where the label waste matrix (waste) is left on the
liner. Black marks can also be used for irregular shaped labels,
circles larger than 4.6 inches or on any stock where the print
starting position can not be sensed using the label itself.
