Label Stock 11
C. ADJUSTING THE LABEL STOCK TOF (TOP OF FORM)
SENSOR
If you are using label stock other than standard square /
rectangular diecut labels such as circular die-cut labels or through-
hole stock use the instructions below to adjust the position of the
label stock sensor. The sensor can be adjusted using the slide bar on
the inside of the printer. Below the slide bar is a measurement
which represents the distance between the edge of the label stock
and the sensor. Measure the
distance from the edge of the label stock to the correct position on
the stock. Set the sensor to this measurement.
Important Note: You must adjust the Stock Sensor before loading nonstandard
label stock.
Circular Labels
If you are using Circular Labels you must adjust the Stock
sensor to correspond with the very top of the label where the circles
are closest together. If the sensor is too far to the right or the left the
printer will still sense the label but the image may be offset
downward because the printer will start printing at the wrong
position. If you are using stock that has multiple labels across make
sure the sensor corresponds to a place on the stock that has a label
and not a vertical gap.
0.5
1.0 1.5
2.0
12.7
25.4 38.1
50.8
mm
in.

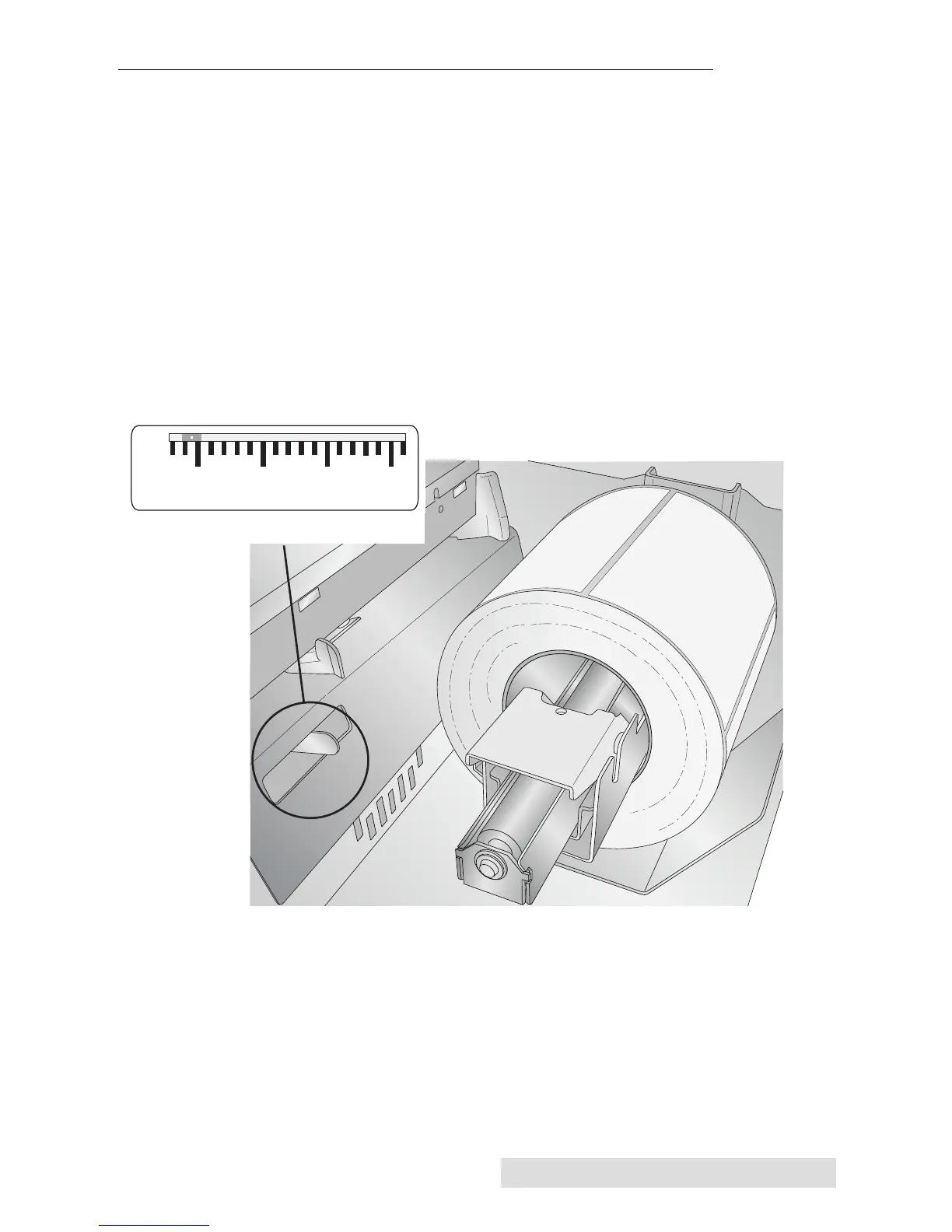

Label Stock Sensor Slide
