10 Label Stock
6. Pull the Movable Throat Guide outward to make room for the
label stock.
7. Place the leading edge of the label stock under the
"label stock" symbols on the Throat Guides. The label
stock should be placed far enough into the throat of the printer
to correctly position the Movable Throat Guide but not yet into
the printer itself.
8. Slide the Movable Throat Guide inward until it almost touches
the label stock.
Important Note: The label stock should be close enough to the Fixed and
Movable Thoat Guides to provide proper guidance but not close enough to
pinch the label stock. (0-1 mm gap on either side)
If the label stock is pinched by the guides, poor print quality or
feeding problems could result.
9. Feed the label stock further into the printer until it senses the
label and automatically feeds it through the printer. If the
printer fails to feed the label stock, press the Load/Feed button
on the front panel while continuing to guide the label stock into
the printer. If the printer does not automatically grab and feed
the stock or continues to feed the stock without stopping check
the Stock Sensor position or mode (Section 2C or 2D).

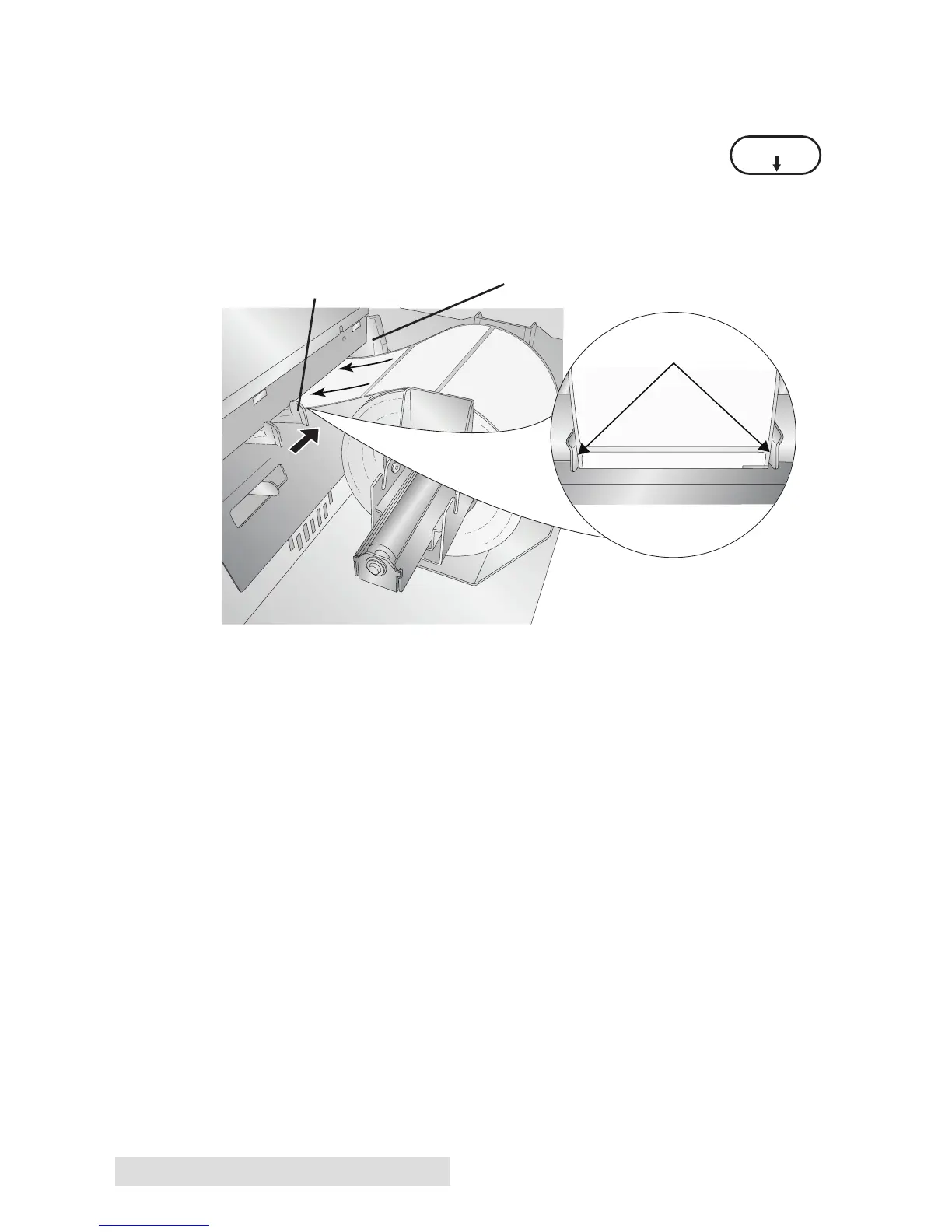

DO NOT PINCH
Fixed Throat Guide
Movable Throat Guide
Label Stock
