12 Label Stock
The sensor can only be moved a maximum of 58.42mm (2.3 inches)
from the left side of the printable area. This means that the
maximum diameter circular label that can be printed is 116.84mm
(4.6 inches). For circular labels larger than 116.84mm (4.6 inches) in
diameter, you must have a black mark printed on the back of the
label stock. This means that you must change the Stock Sensor Mode
to Reflective. The printer will now look for the black mark
representing the beginning of the next label instead of the
diecut. For more information on changing the Stock Sensor Mode
see Section 2D.
Through-Hole Labels
If you are using card stock or label stock that has a hole punch or a
notch to identify a transition from backing to label, you can adjust
the Stock Sensor to position it over the identifying mark.
D. SET THE STOCK SENSOR MODE
The stock sensor mode refers to the method the printer will use to
detect the print starting position for each label. To adjust the stock
sensor mode, open the PTStatus program. PTStatus automatically
installs with your printer driver and can be accessed through the
printer driver or as program that is
accessible in the same manner as all other programs.
Important Note: Set the Stock Sensor Mode BEFORE loading label stock!

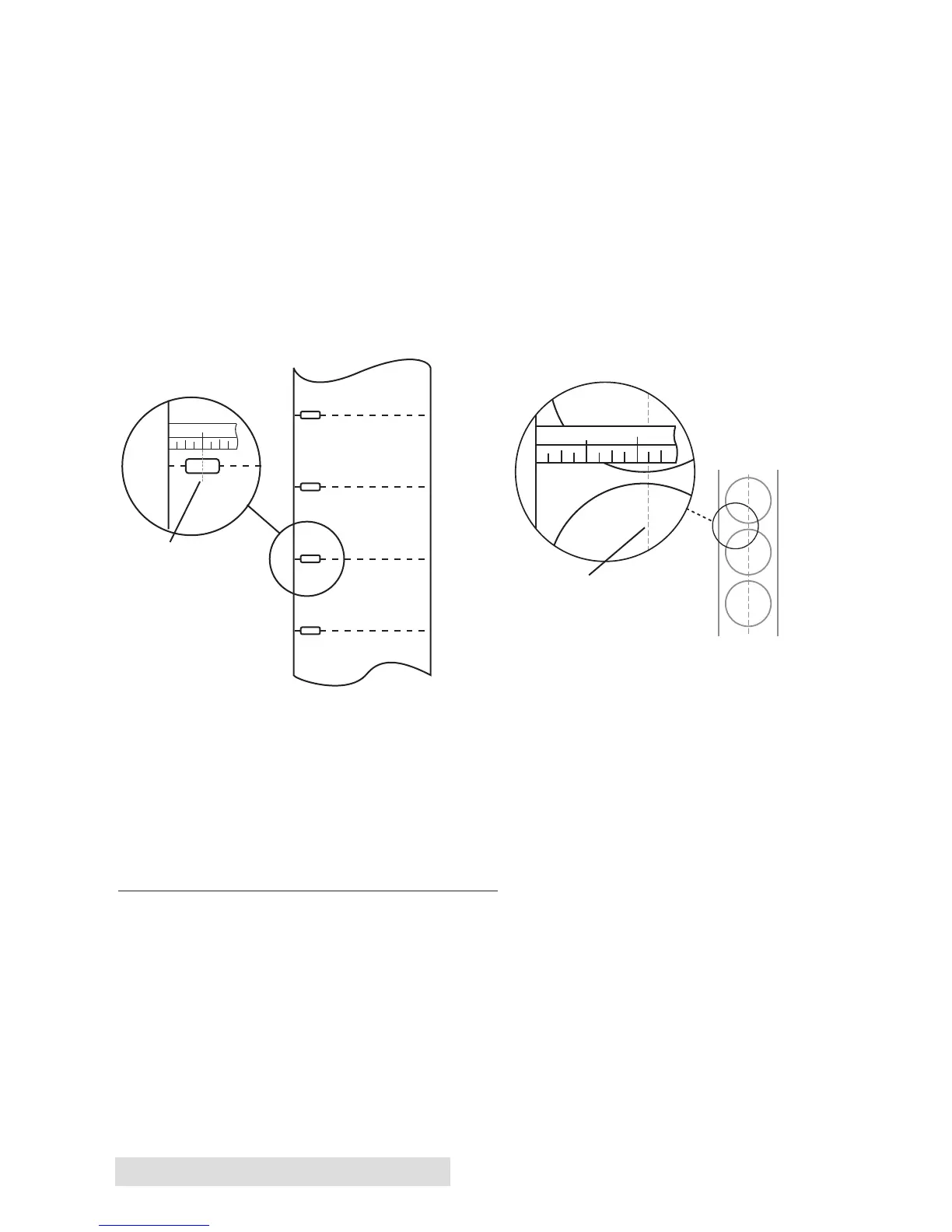

Center
of Circle
1 1/8”
1/2”
Center
of Hole
Through-Hole Labels Circular Labels
Set Sensor Bar to 1 1/8" for 2" circular label (1/8" liner edge gap).
