Cube
19
Revision 10 EN - 03/2021
Please observe the information on minimum and maximum energy input per measure-
ment according to chapter 12.2.3 on page28.
A suitable 2m long connection cable is included.
NOTICE
Damaging/Destruction of the device
If the safety interlock is not connected, the device can be damaged or
destroyed due to overheating.
X
When connecting the laser control, please ensure that the laser is turned
off in case of an interruption of the connection.

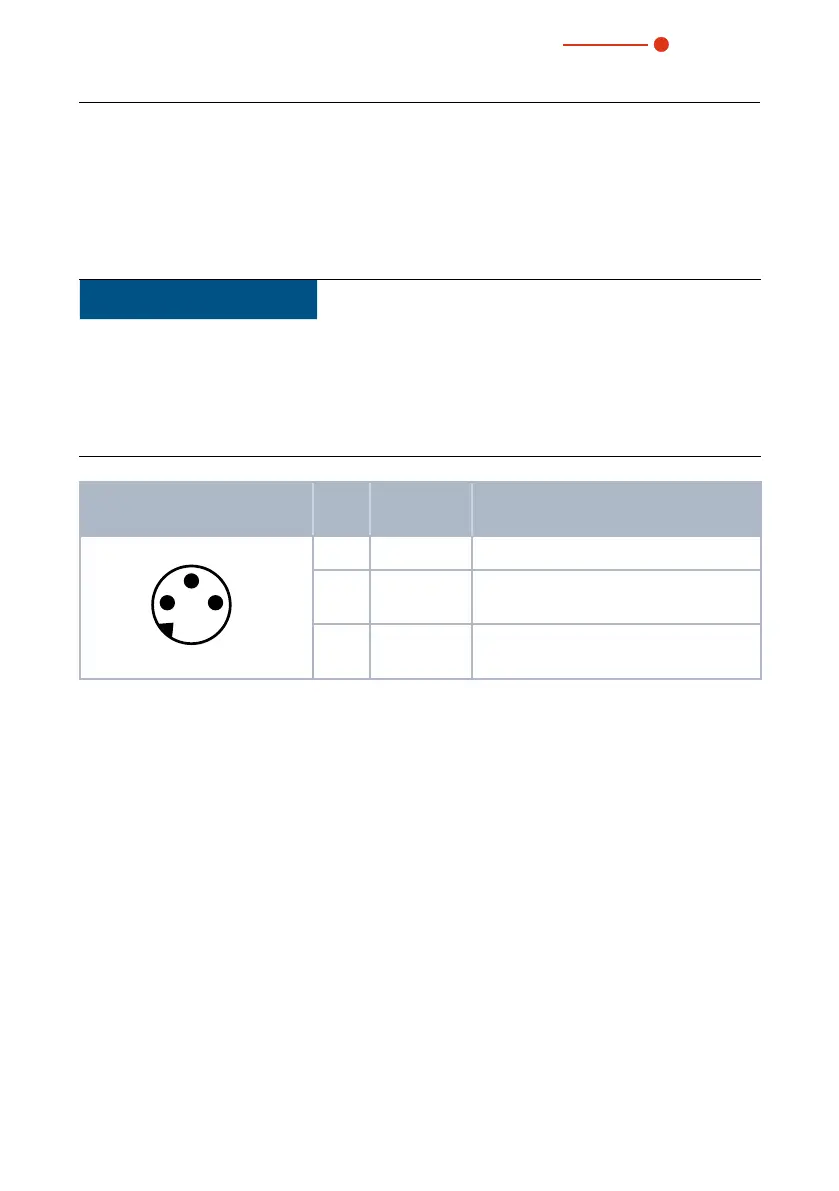

Pin diagram safety interlock
plug (view connector side)
Pin Wire color Function
1
4
3
4 Black Mutual pin
1 Brown Connected with pin4, when ready for
operation
3 Blue Connected with pin4, when in safety
interlock mode (absorber too hot)
Tab. 9.1: Pin assignment of the safety interlock plug
9.2 Micro-USB socket
You can charge the battery of the device on the PC via the micro USB socket. Only use
the supplied USB cable to charge the battery.
When using the optional LaserDiagnosticsSoftware LDS (not included in delivery), the
device communicates with the LDS via the micro-USB socket or Bluetooth.
You will find the PRIMES USB-driver for all USB-capable devices on the PRIMES web-
site at: https://www.primes.de/en/support/downloads/software.html.
