Primes CUBE - Device Dimensions; Dimensional Drawings

56 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

35,0(6

Cube

52

Revision 10 EN - 03/2021

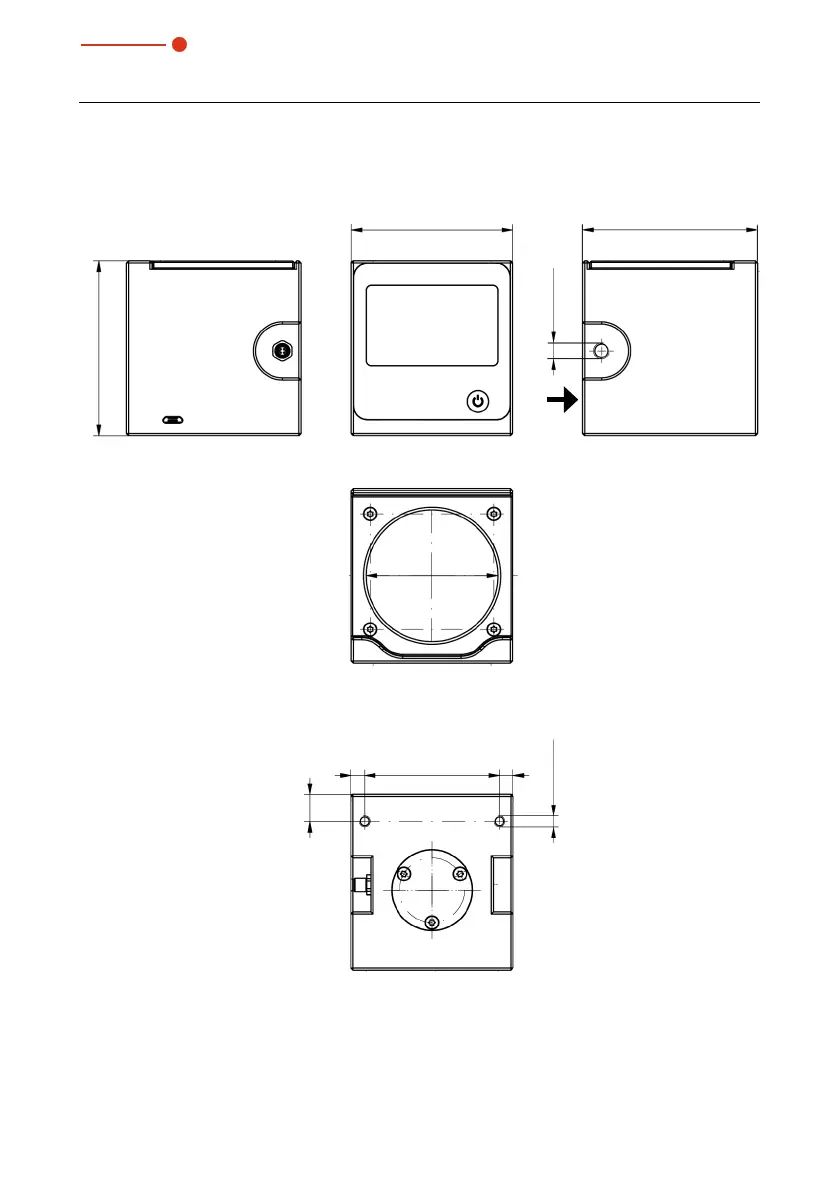

20 Dimensions

60

5 50 5

65

65

10

M6 x 6

Ø 49

2x M4 x 8

View X

X

All dimensions in mm (general tolerance ISO 2768-v)

Table of Contents

Default Chapter4
- Table of Contents4
1 Basic Safety Instructions8
2 Symbol Explanation10
3 About this Operating Manual11
4 Conditions at the Installation Site11
5 Important Notes on the Lithium-Ion Battery12
- Charging the Lithium-Ion Battery12
- Storing the Device with a Permanently Installed Lithium-Ion Battery12
- Dangers to Health and the Environment in the Event of Damage to the Lithium-Ion Battery12
- Shipping the Device with Permanently Installed Lithium-Ion Battery12
6 Device Description13
- Functional Description13
- Measuring Principle13
7 Transport14
8 Installation/Removal15
- Prepare Installation15
- Mounting Position15
- Align the Device16
- Install the Device17
- Remove the Device17
9 Connections18
- Safety Interlock18
- Micro-USB Socket19
- Bluetooth20
10 Functions of the On/Off Button21
11 Displays on the Device22
- Status Messages22
- Warning Message23
- Charge Status of the Lithium-Ion Battery23
12 Important Information for Measuring with the Cube24
- Safety Instructions24
- Laser Parameter Setting26
- Waiting Times until the Next Measurement in a Measurement Series29
- Measurement with Pulsed Lasers30
13 Measuring with the Cube31
- Start Measurement31
- Measuring Results Display33
14 Measuring with the Optional Laserdiagnosticssoftware LDS34
- Notes of the Laserdiagnosticssoftware LDS During Measurement34
- Connect the Cube to the Laserdiagnosticssoftware LDS35
- Open Toolbench Cube Measurement36
- Settings for Trigger Level, Power Saving Functions and Automatic Measurement Readiness37
- Start Measurement39
- Measuring Results Display40
  - Display the Current Measurement in the Toolbench Cube Measurement40
  - Display of the Measurements Stored in the Cube41
- Delete Measured Values from the Memory of the Cube43
15 Measuring with the Optional Cube App44
16 Maintenance and Service45
- Exchanging the Protective Window on the Device45
  - Safety Instructions46
  - Exchanging the Protective Window47
17 Measures for the Product Disposal48
18 Declaration of Conformity49
19 Technical Data50
20 Dimensions52
21 Appendix53
- Max. Laser Power Depending on the Irradiation Time for Devices with Standard Absorber53
- Max. Laser Power Depending on the Beam Diameter for Devices with Standard Absorber53
- Max. Laser Power Depending on the Irradiation Time for Devices with Advanced Absorber54
- Max. Laser Power Depending on the Beam Diameter for Devices with Advanced Absorber54
