Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the dryer(s) before servicing.
• Close gas shut-off valve to gas dryer(s) before servicing.
• Never start the dryer(s) with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the dryer is properly grounded.
W001R1
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

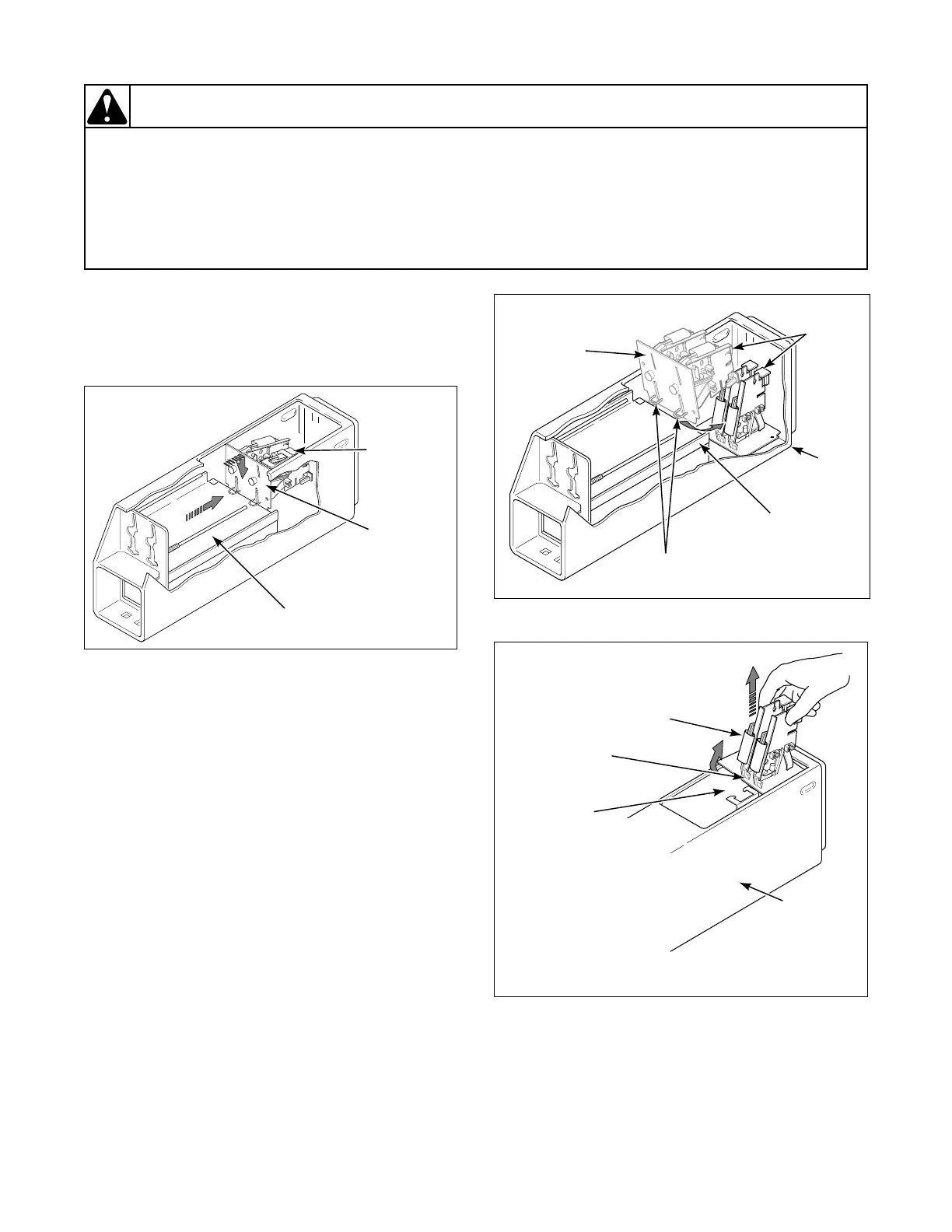

(8) Lift back end of coin drop and pull straight
back until bottom edge of the drop’s front
face plate falls behind the coin drawer
housing. Refer to Figure 17.
(9) Lift up back end of coin drop until the two
coin-return stops slide down past the coin
drawer housing, as shown in Figure 18.
(10) While holding back end of drop, allow
drop’s front face plate to rest on bottom of
meter case. Refer to Figure 18.
(11) Carefully lift complete coin drop straight
up and out of meter case. Refer to
Figure 19.
NOTE: When lifting drop out of meter case, tip
drop slightly so front face plate clears service door
opening. Refer to Figure 19.
Figure 17
W410SE1A
BACK END
OF
COIN DROP
COIN DRAWER
HOUSING
COIN DROP
FRONT
FACE PLATE
Figure 18
Figure 19
W411SE1A
BACK END
OF COIN
DROP
COIN
DRAWER
HOUSING
COIN DROP
FRONT
FACE PLATE
METER
CASE
COIN-RETURN
STOPS
W412SE1A
COIN DROP
FRONT
FACE PLATE
METER
CASE
COIN
DROP
SERVICE
DOOR
OPENING
