Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the dryer(s) before servicing.
• Close gas shut-off valve to gas dryer(s) before servicing.
• Never start the dryer(s) with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the dryer is properly grounded.
W001R1
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
j. Electric Models:
(1) Remove two screws holding element and
plate to heater box, then pull element down
andawayfromheaterbox.Referto
Figure 43.
(2) Remove all wires from terminal block.
(Refer to appropriate wiring diagram when
rewiring terminal block.)
(3) Remove screw holding terminal block to
rear bulkhead. Refer to Figure 61.
(4) While supporting bulkhead, remove the
four screws holding rear bulkhead to dryer
cabinet, then lift complete assembly out of
dryer. Refer to Figure 58.
(5) Remove heater box from rear bulkhead.
Refer to Figure 60.

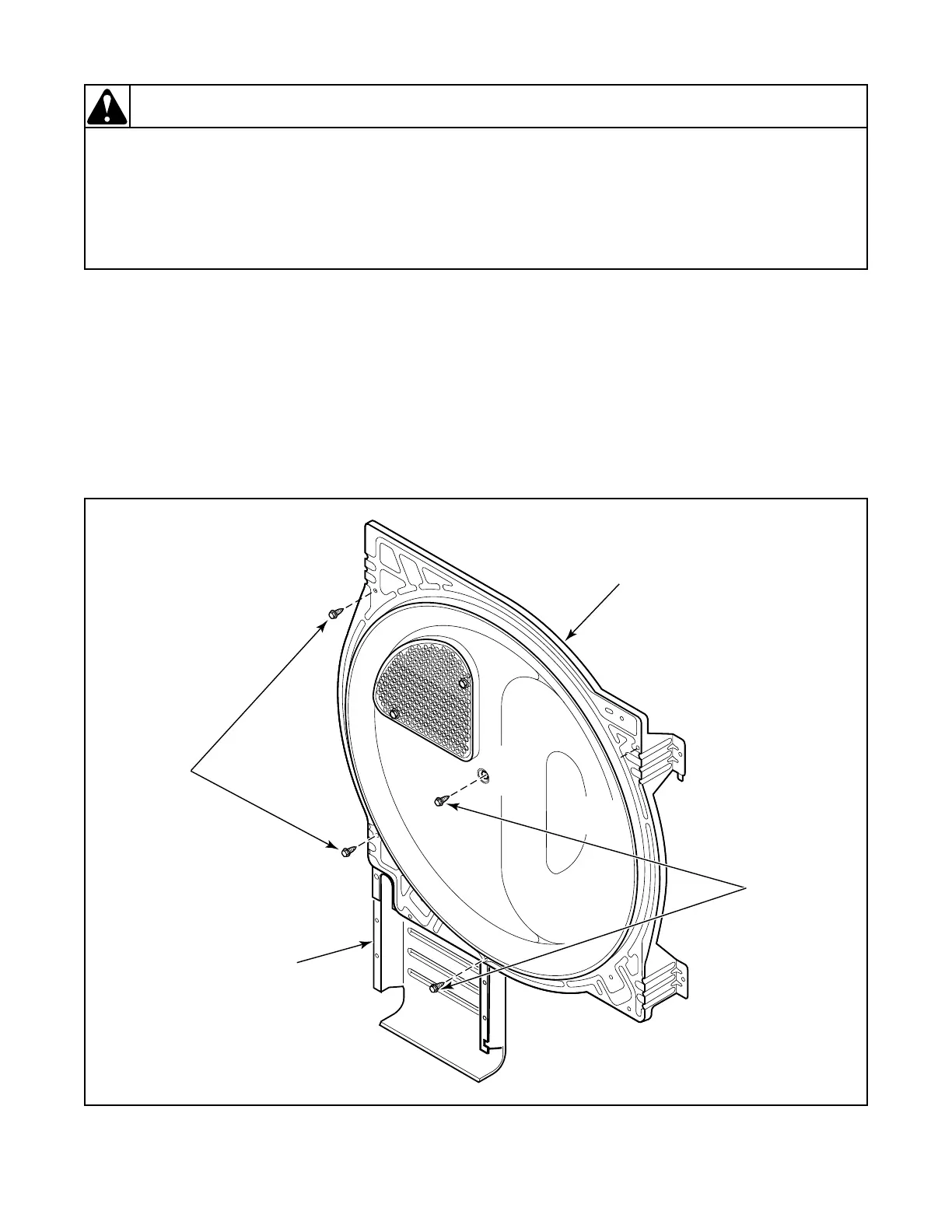

Figure 60
HEATER
BOX
ATTACHING
SCREWS
HEATER
BOX
ATTACHING
SCREWS
HEATER
BOX
REAR
BULKHEAD
D261SE3A
