Adjustments
1. Captive Screw (2)
2. Cam Cover
3.
Shuttle Spring
4. Counterweight Spring
5. Counterweight
6. Yoke
7. Shim
8. Screw
9. Shim
10.
Base Support
3
5
6
8
7
10
9 (Hidden)
4
1
2

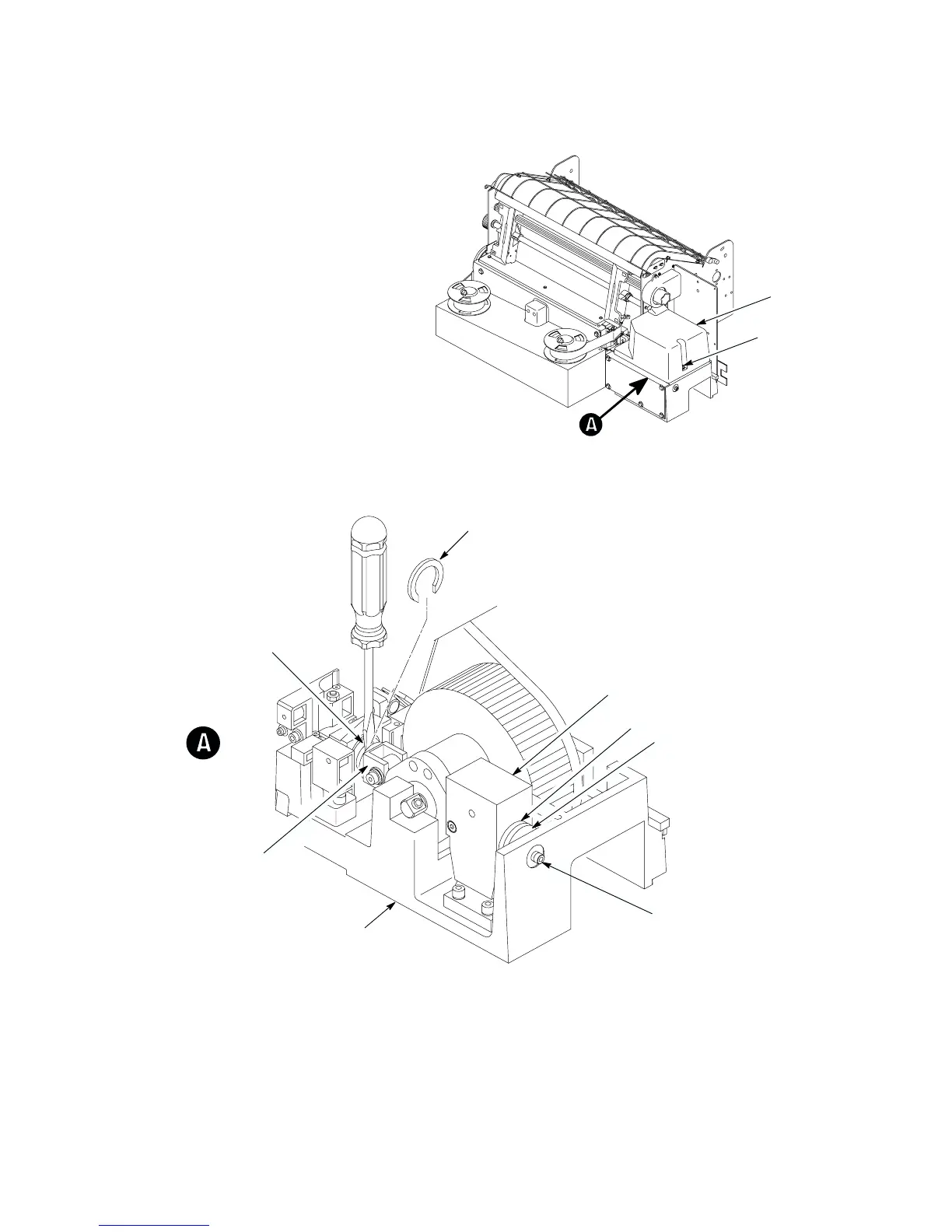

Figure 5–13. Shuttle Spring Force Adjustment
