Chapter 7: Monitor Profiles
45
2 Right-click on Sources under Monitor and choose Add new set. Once you have created a Sources set, it can be added to additional
Sources from
Add existing set.
3 Right-click the New input set and choose Rename. Type a descriptive name.
4 Right-click the input set and select the desired channel width from Set group format. Select from the available preset formats (such
as Stereo or 5.1). You can also create custom formats (see Group Formats).
5 Select the input set. The right pane lists all channels in the input set.
6 In the right pane, right-click each channel of the selected input set and select the desired inpuy assignment from the available inputs
(such as
DigiLink 1 > DigiLink 1, ch. 2).
7 If desired, click in the Label column of each row and type a descriptive label.
8 To adjust the trim on any channel, click in the Trim column for any channel and type a negative value to attenuate or a positive value
(in dB) to boost the input signal for that channel.
Once you have made all assignments for the input set, you can repeat these steps to add additional input sets. You can select the desired
input set for monitoring in the Monitor section of the DADman window.
To remove an input set:
Right-click the input set and choose Remove set.

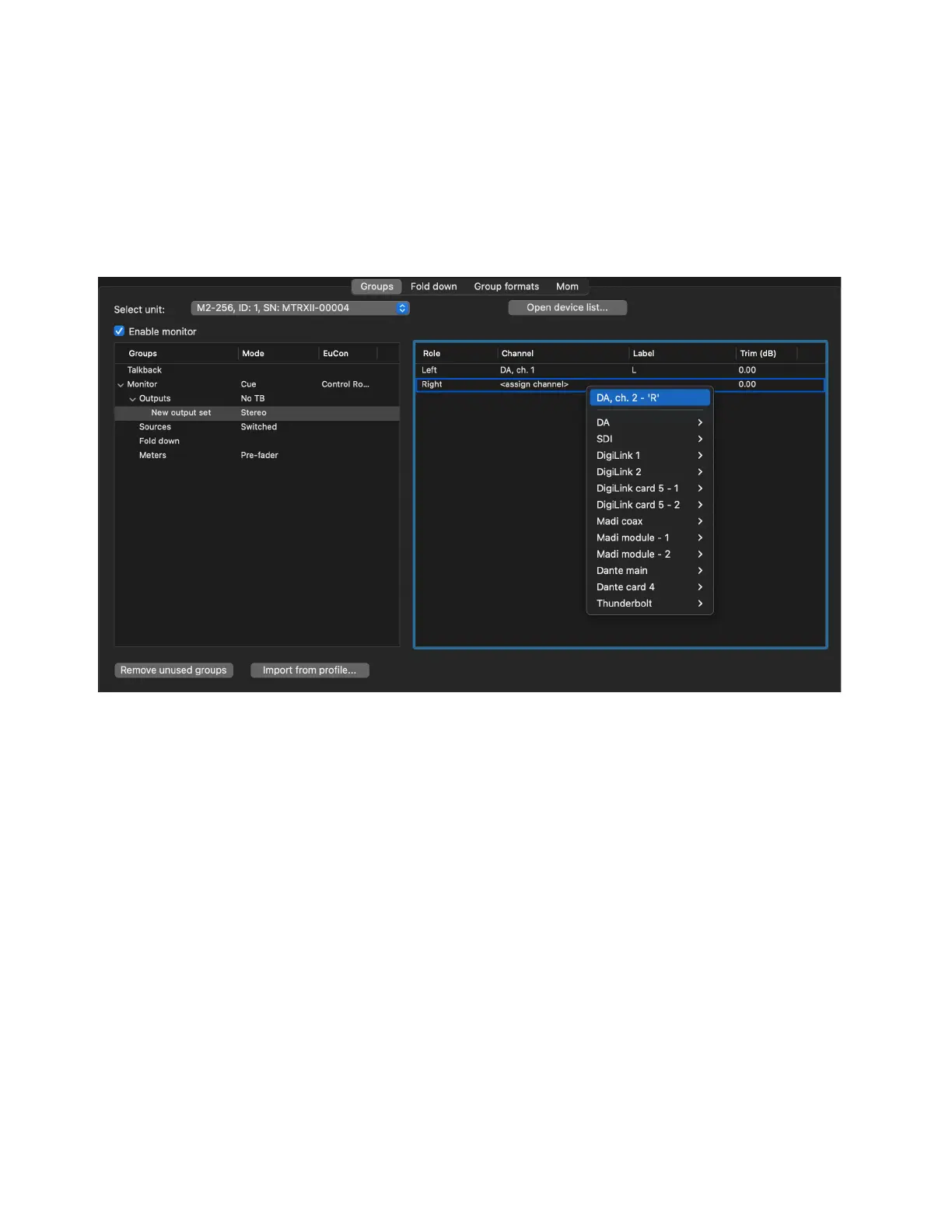

Assigning Right channel for selected source
