ProSoft Technology MVI69E-MBTCP User Manual

MVI69E-MBTCP ♦ CompactLogix Platform Adding the Module to RSLogix
Modbus TCP/IP Enhanced Communication Module User Manual
ProSoft Technology, Inc. Page 19 of 150
June 28, 2017

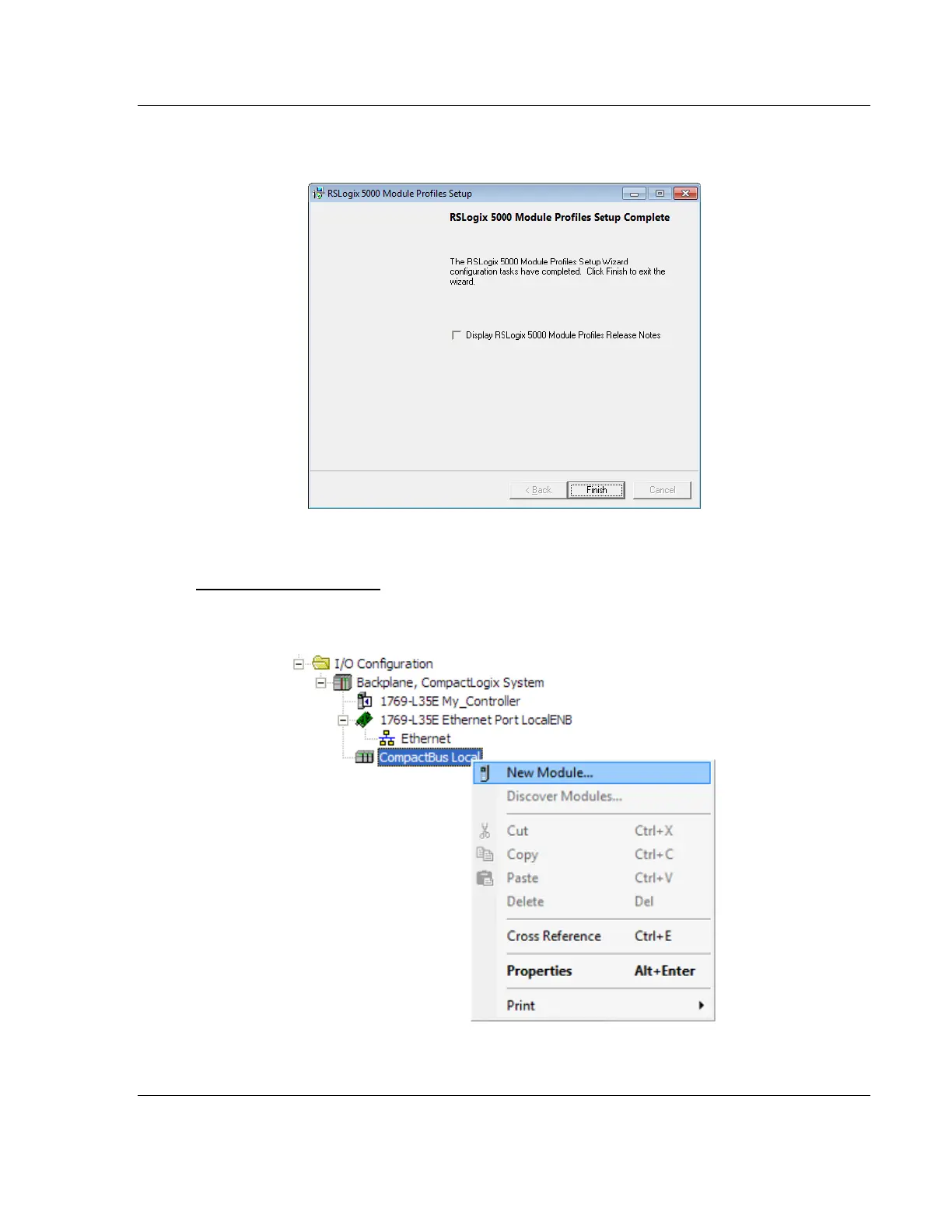

3 Click FINISH when complete. The AOP is now installed in RSLogix 5000. You
do not need to reboot the PC.
Using an Add-On Profile
1 In RSLogix 5000, expand the I/O CONFIGURATION folder in the Project tree.
Right-click the appropriate communications bus and choose NEW MODULE.
This opens the Select Module Type dialog box.

ProSoft Technology MVI69E-MBTCP Specifications

General

Vendor	ProSoft Technology
Product Type	Control Unit
Protocol	Modbus TCP/IP
Ports	1 Ethernet port
Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature	-40 to 85°C
Relative Humidity	5% to 95% (non-condensing)
Compatibility	Compatible with Rockwell Automation CompactLogix and MicroLogix Controllers
Power Supply	24 VDC nominal
