MVI69E-MBTCP ♦ CompactLogix Platform Configuring the MVI69E-MBTCP Using PCB
Modbus TCP/IP Enhanced Communication Module User Manual
ProSoft Technology, Inc. Page 61 of 150
June 28, 2017

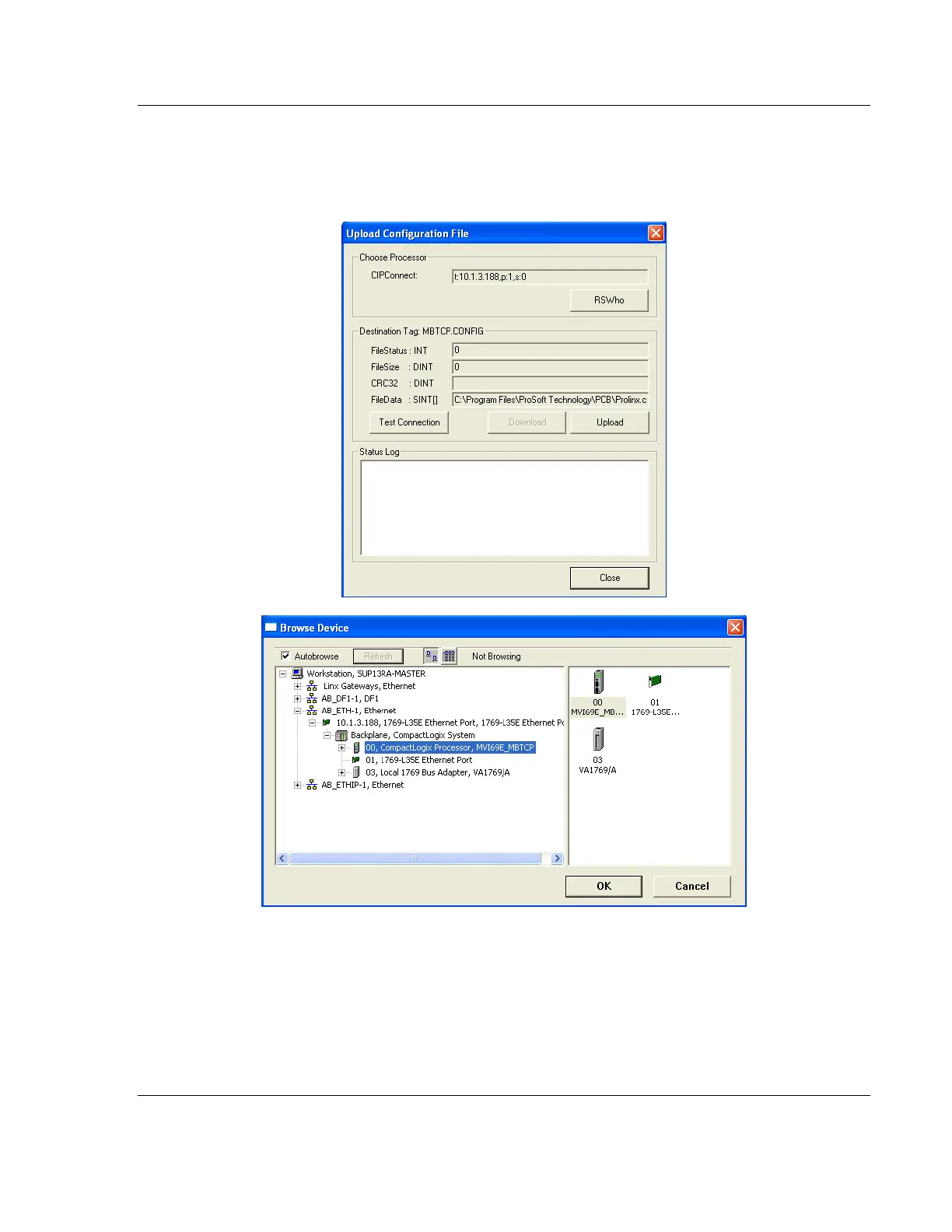

2 In the Upload Configuration File dialog box, the CIPConnect path should
already be constructed if you have previously downloaded the configuration
file from the same PC. If not, click RSWHO, browse to, and then select the
CompactLogix Processor, and click OK.
