Configuring the MVI69E-MBTCP Using PCB MVI69E-MBTCP ♦ CompactLogix Platform
User Manual Modbus TCP/IP Enhanced Communication Module
Page 62 of 150 ProSoft Technology, Inc.
June 28, 2017

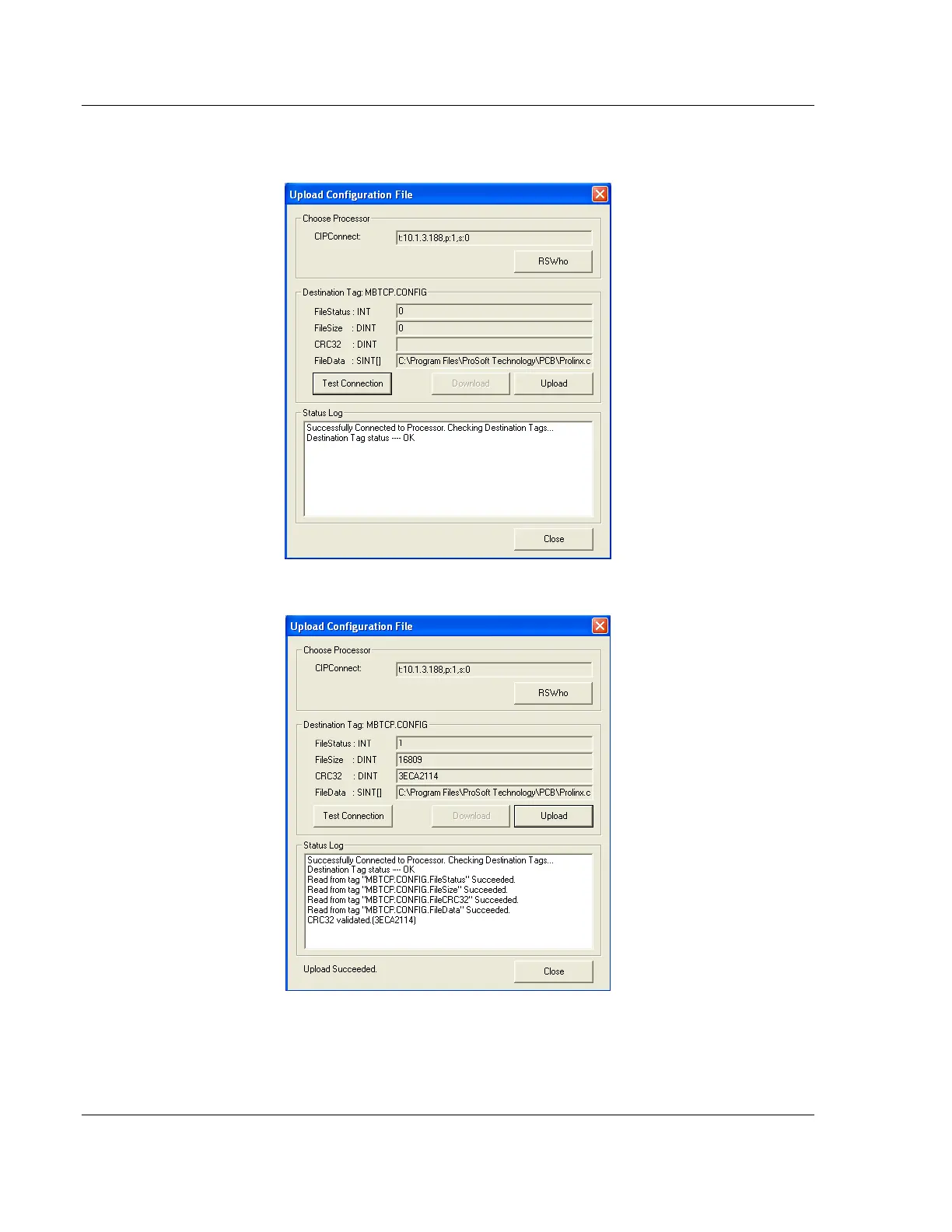

3 Click TEST CONNECTION to verify the path is active and can successfully
connect to the processor.
4 When ready, click UPLOAD. When upload is complete, click CLOSE.
5 PCB now displays the uploaded configuration file.
