PLX3x Series EIP Protocol
Ethernet and Serial Gateways User Manual
ProSoft Technology, Inc. Page 83 of 218
May 26, 2016
Select the COMMUNICATION COMMAND to execute from the following list of
supported commands.
PLC5 Type Read
PLC2 Unprotected Read
PLC5 Typed Read to PLC
PLC Typed Logical Read
The TARGET DEVICE DATA TABLE ADDRESS must be set to a valid file
element (such as, N11:0) for SLC and PLC5 messages. For the PLC2
Unprotected Read message, set the address to the database index (such as,
1000) to consider with the command.

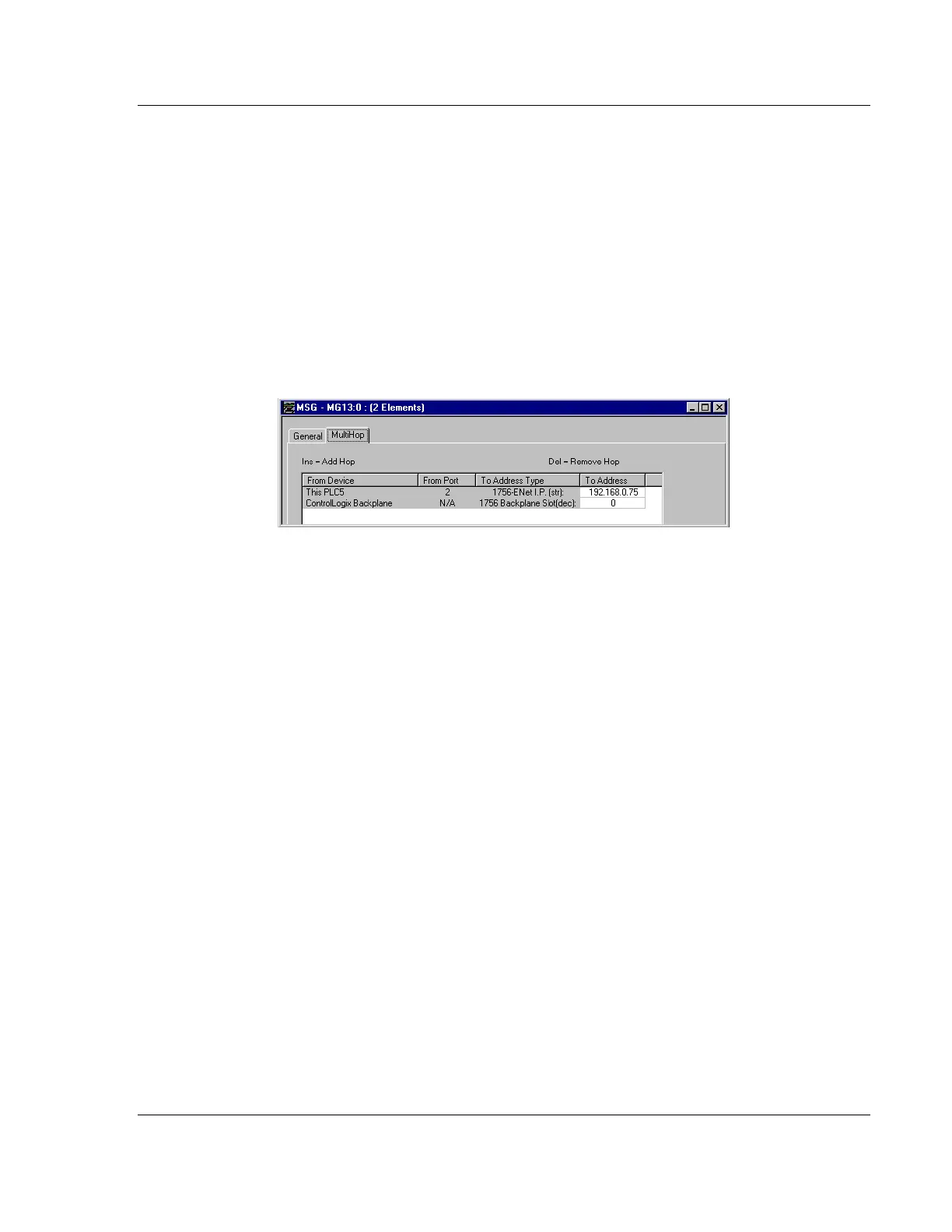

The MULTIHOP option must be set to YES. The MULTIHOP tab portion of the
dialog box must be completed as shown in the following window:
Set the IP address value to the gateway’s Ethernet IP address. The "Insert" key
must be pressed to add the second line for ControlLogix Backplane and set the
slot number to zero.
