Pyronix STERLING 10 Installation Manual

Sterling 10 Installation Manual
Page 6 RINS1413-1

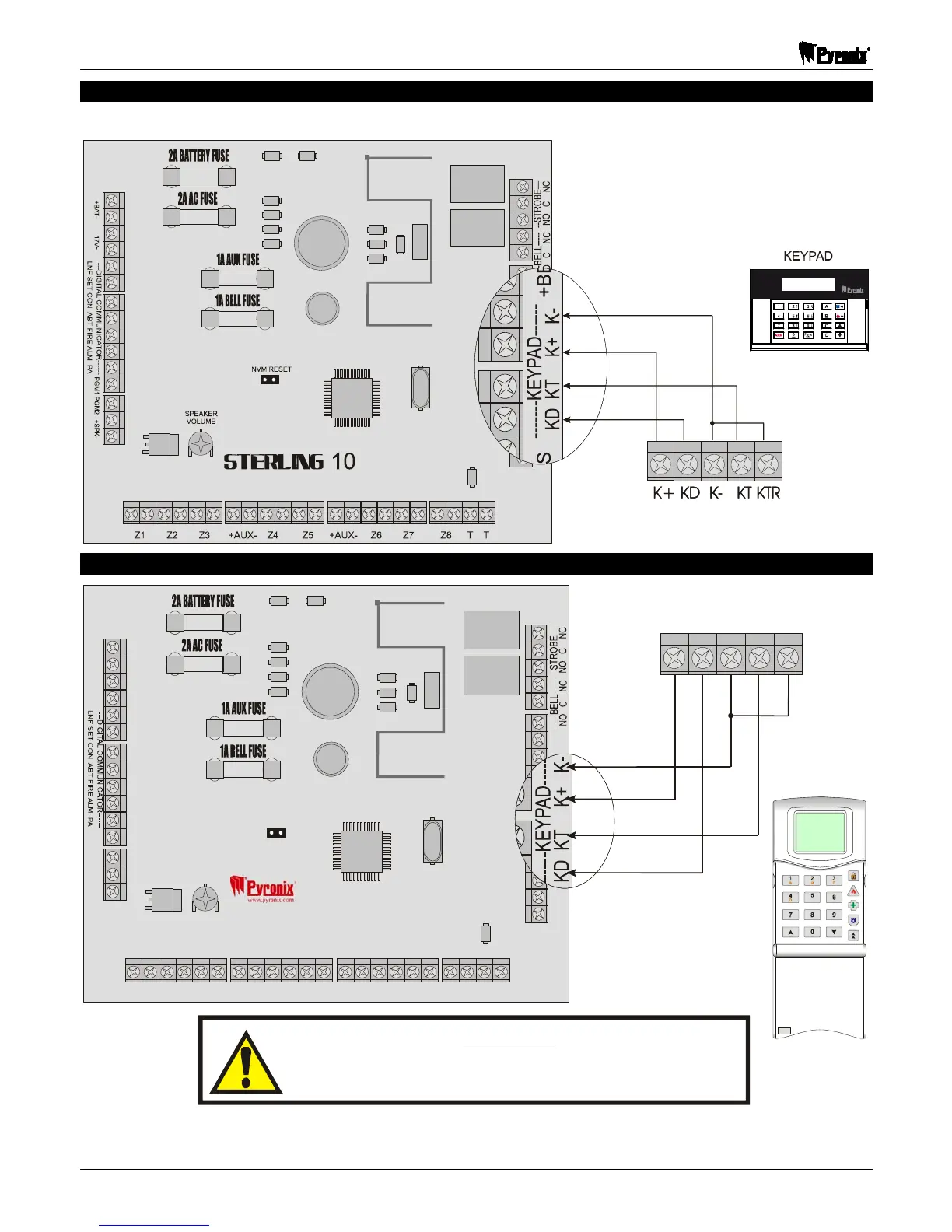

2.4 Keypad Connections (LCD Keypad)
NOTE: The final keypad in the chain must have a link between KTR and K-.
2.5 Keypad Connections (ICON Keypad)
K+ KD K- KT KTR
ICON KEYPAD
Z1 Z2 Z3 +AUX- Z4 Z5 +AUX- Z6 Z7 Z8 T T
PA PTS
PGM1 PGM2 +SPK-+BAT- 17V~
+BELL- BT
TUFSMJOH
10
NVM RESET
SPEAKER
VOLUME
K+ KD K- KT KTR
IMPORTANT:
Please note the Sterling 10 LCD keypad is not compatible
for use with the Sterling 10 ICON keypad.
