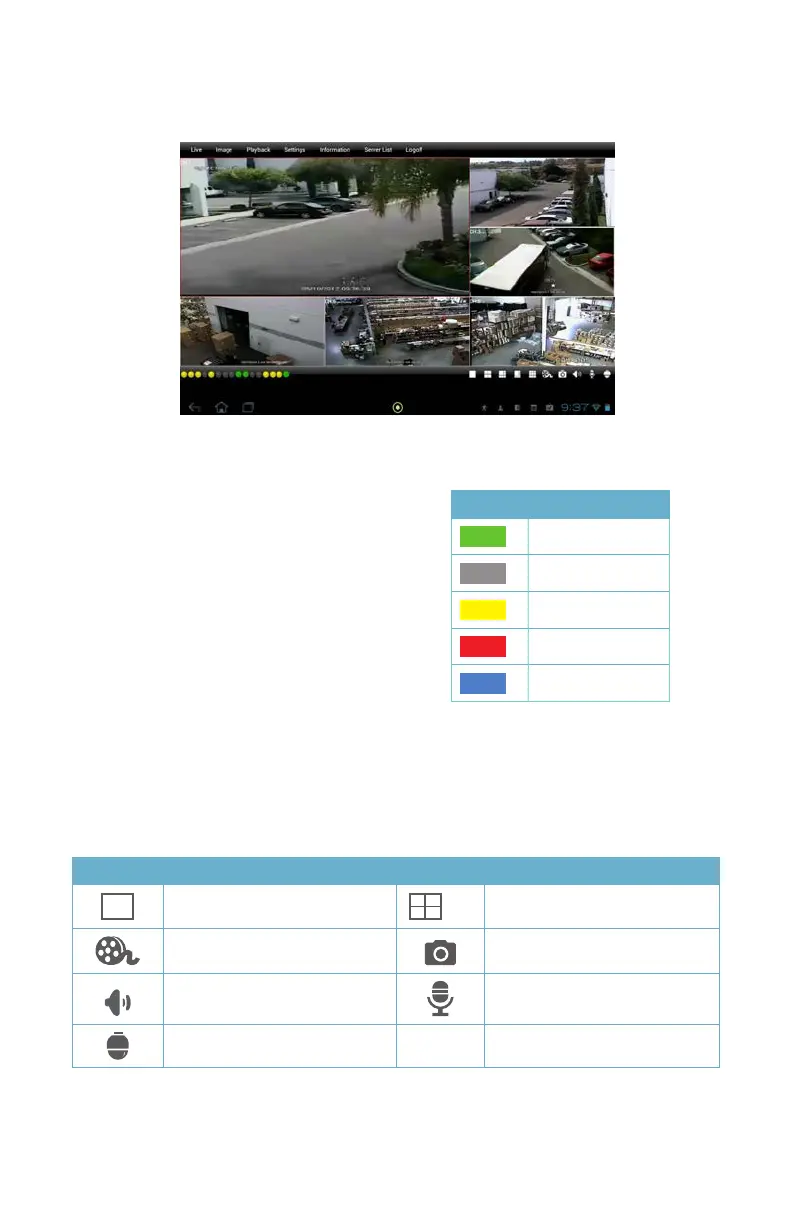

PICTURE 4-47
Color Meaning
Recording
Not Recording
Motion Recording
Alarm Recording
Not Connected
Button Function Button Function
Single channel view
etc.
Multi-channel viewing modes
Record Snapshot
Audio On/Off Two-way talk
Switches to PTZ interface
In the viewing modes with a single large screen surrounded by smaller ones, the first camera
selected will be the larger view. Double-tapping on any screen will bring it to full screen view.
Double-tapping upon it again will return to multi-screen viewing mode.
A series of indicators and icons appear below
the live display regardless of viewing mode.
The colored indicators show the status of
each camera.
The icons allow you to control your display, including which cameras are being viewed, split-
screen four channel view, enable PTZ mode and etcetera.
Note that both Two-way talk and Audio On/Off both require the use of an audio-capable
camera or a co-located microphone. Two-way talk additionally requires a speaker located with
the camera being used.
In multiple-screen viewing modes, only the channel outlined in red will be affected by com-
mands such as Record, Snapshot, etc. A channel may be selected simply by touching it’s
display.
