A.3 RACK MOUNTING
The QT446, QT4332, QT4532, QT518, QT5116 and QT536 all use 2U cases and include
brackets and screws allowing them to be secured in a standard server rack or server cabinet.
These DVRs are designed for horizontal mounting only.
The DVR must rest on a shelf sufficient to hold its weight. The included mounting brackets are
only intended to keep the system from shifting and they are not sufficient to suspend the DVR
alone. You will also need to provide bolts to attach the brackets to the rack.

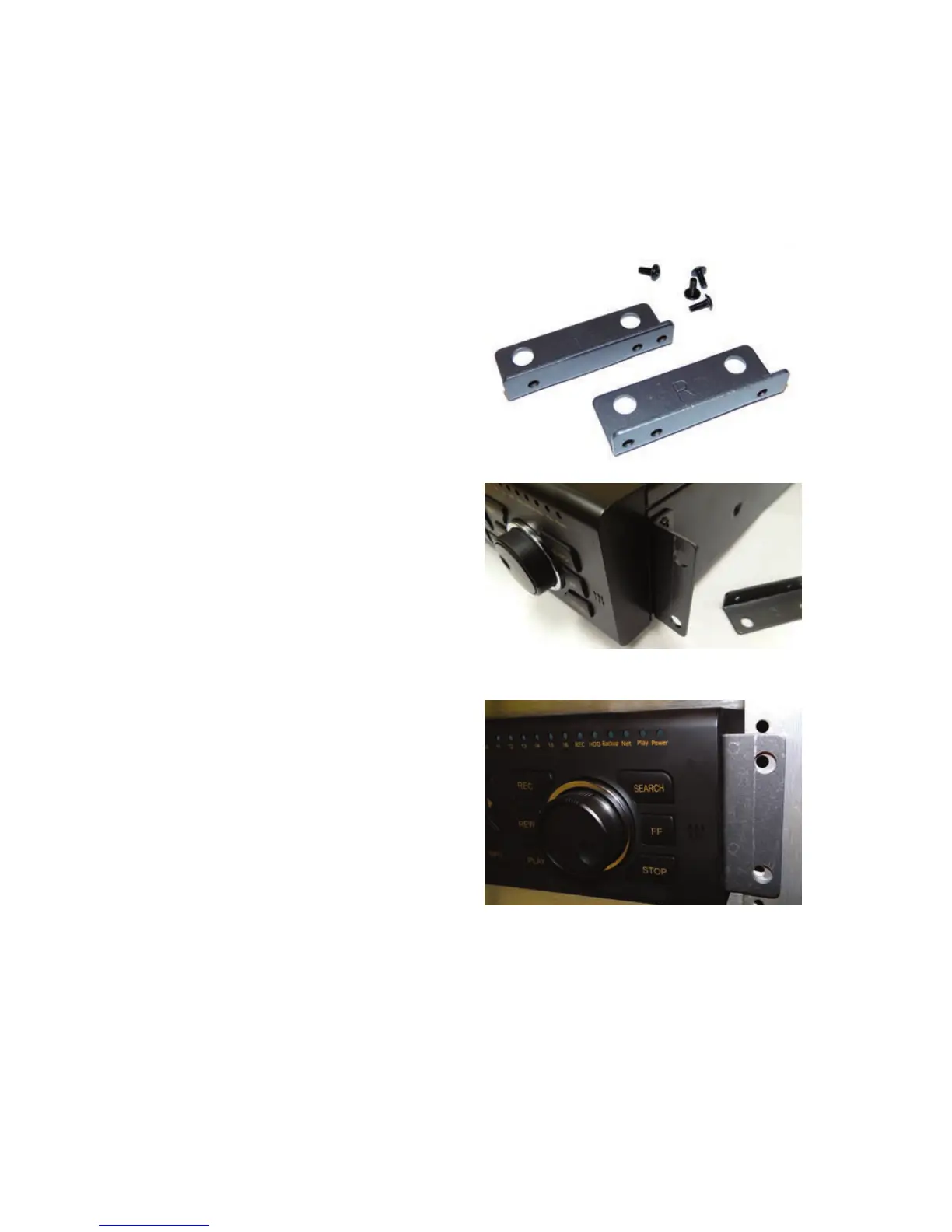

Two mounting brackets and four screws
are contained in the accessory box that
accompanied your DVR. Some brackets will
have three holes but only two screws are
required to mount the bracket to the DVR.
The flanges to secure the DVR to the rack
should be towards the front.
The DVR must have sufficient support when
installed. The brackets are only to keep the
DVR from moving. Ensure that all four holes
on the two mounting brackets line up with
holes in the rack.
If you will have limited access to the back
of the DVR, it is best to make sure that all
camera and other cable connections on the
back of the DVR are secure before bolting
the brackets to the rack.
