2 – General Description
Power Supplies and Fans
2-10 59096-02 C
S
2.5
Power Supplies and Fans
The model 5600 switch has a single power supply that converts 100 – 240 VAC to
DC voltages for the various switch circuits. Four internal fans provide cooling. The
switch monitors internal air temperature, and therefore does not monitor or report
fan operational status. Air flow is front-to-back. To energize the switch, plug the
power cord into the switch AC receptacle and into a 100 – 240 VAC power source.
The model 5602 switch has two, hot pluggable power supplies that convert
standard 100 – 240 VAC to DC voltages for the various switch circuits. Each
power supply has an AC power receptacle and two status LEDs as shown in
Figure 2-8:
The Power Supply Status LED (green) illuminates to indicate that the power
supply is receiving AC voltage and producing the proper DC voltages.
The Power Supply Fault LED (amber) illuminates to indicate that a power
supply fault exists and requires attention.

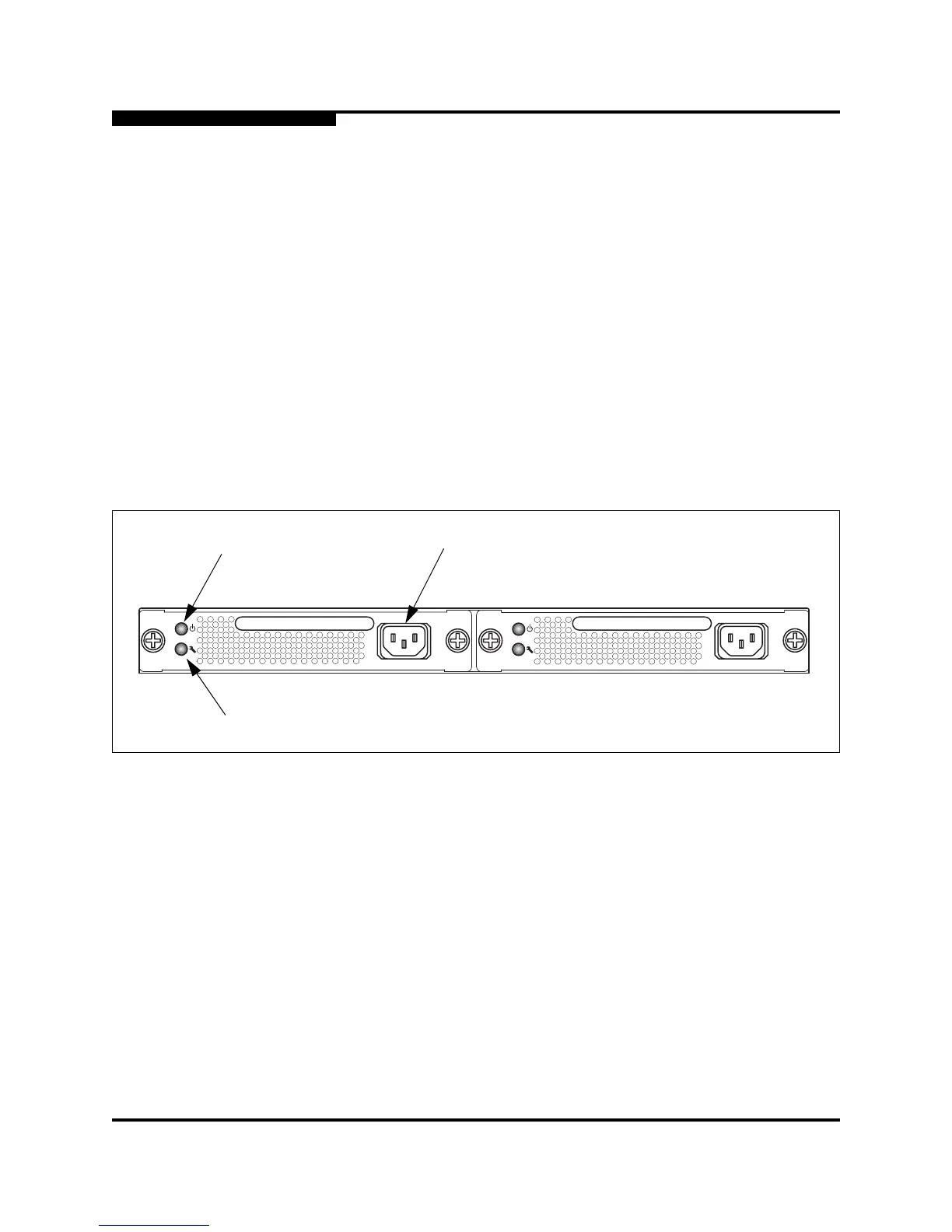

Figure 2-8. Model 5602 Switch Power Supplies
Each power supply is capable of providing all of the switch’s power needs. During
normal operation, each power supply provides half of the demand. If one power
supply goes offline, the second power supply steps up and provides the
difference.
The power supplies are hot swappable and interchangeable. Hot pluggable
means that you can remove and replace one power supply while the switch is in
operation without disrupting service. Refer to Section 6 Removal/Replacement for
information about replacing the power supplies.
Connecting a power supply to an AC voltage source energizes the switch logic
circuitry. Internal fans provide cooling. Air flow is front-to-back.
Power Supply
Status LED
(Green)
Power Supply
Fault LED
(Amber)
AC Power
Receptacle
