3 – Planning
Multiple Chassis Fabrics
59096-02 C 3-11
A
3.5.4.2
Mesh Topology
A mesh topology describes a fabric in which each chassis has at least one port
directly connected to each other chassis in the fabric. Using 16-port model 5600
switches, the mesh fabric shown in Figure 3-5 has the following characteristics:
Each link contributes up to 212 MB of bandwidth between switches, 425 MB
in full duplex. Because of multiple parallel paths, there is less competition for
this bandwidth than with a cascade or a Multistage topology.
Latency between any two ports is one chassis hop.
40 1/2/4-Gbps Fibre Channel ports are available for devices.

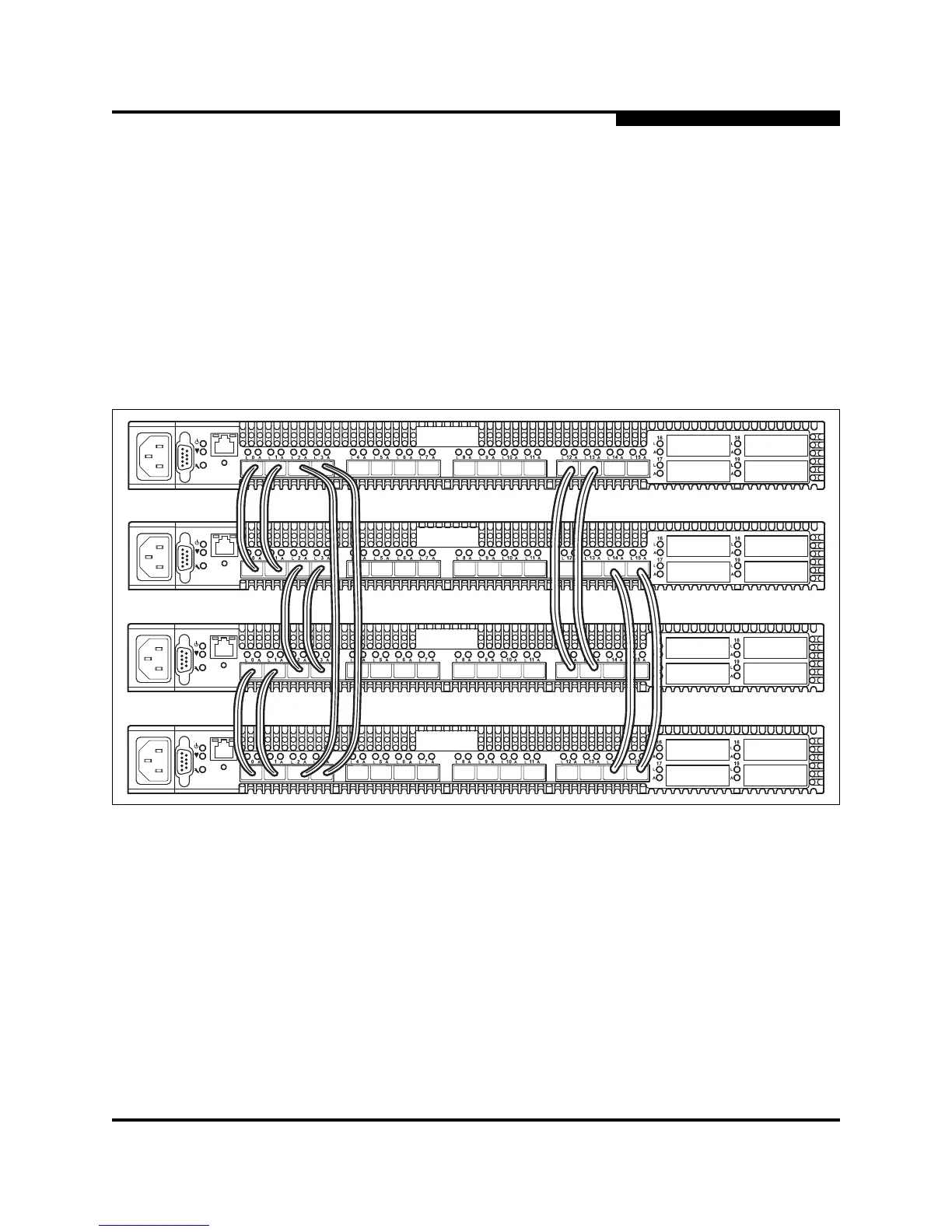

Figure 3-5. Mesh Topology
