4 – Installation
Installing a Switch
59096-02 C 4-5
A
To mount a 5600 model switch in a rack without the use of rails, fasten the
brackets to the switch as shown in Figure 4-2. Choose the bracket screw holes to
produce the setback you want. Place the switch in the rack and fasten the bracket
flanges to the rack with two screws on each side.

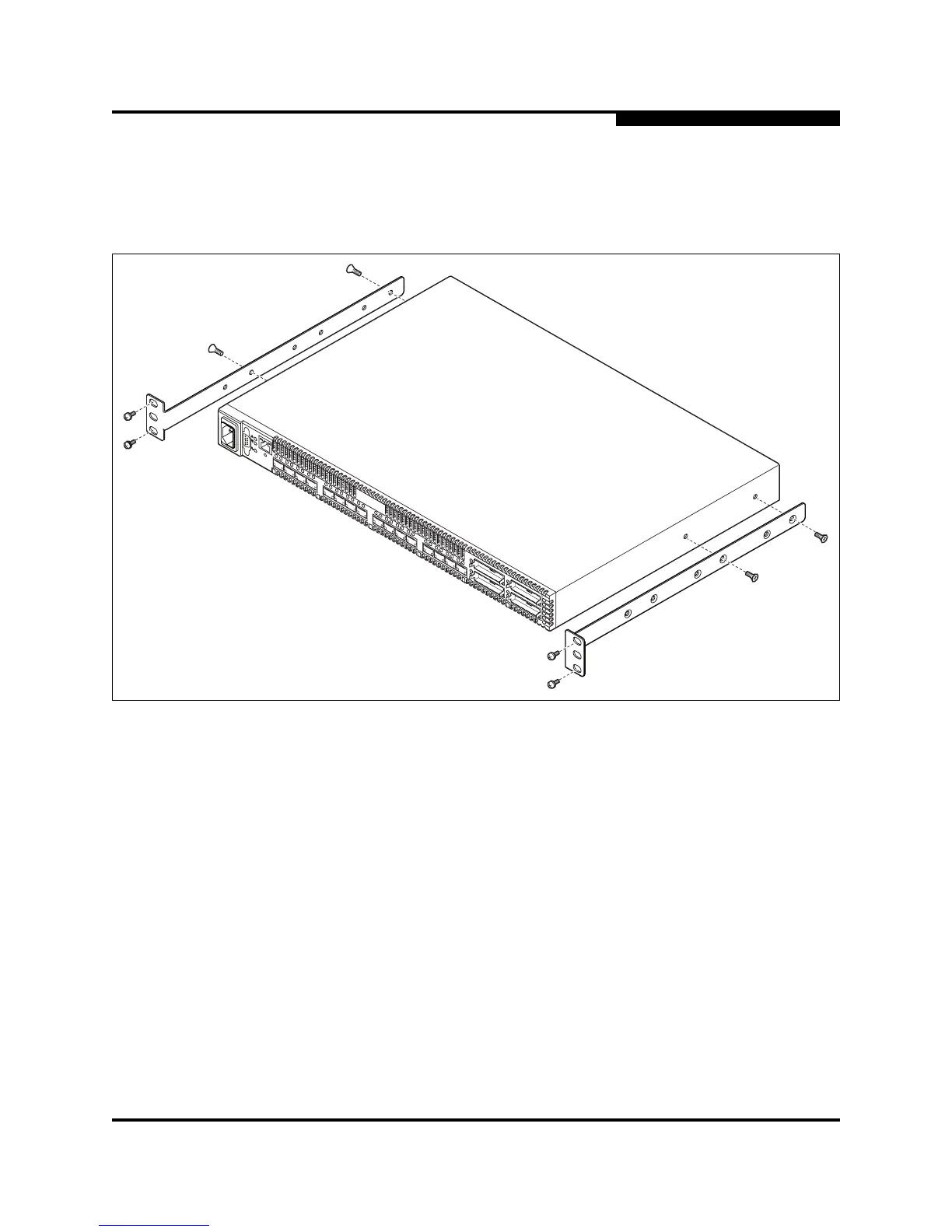

Figure 4-2. Mounting the Model 5600 Switch in a Rack without Rails
