3 – Planning
Fabric Security
59096-02 C 3-17
A
3.7.2.1
Security Example: Switches and HBAs
Consider the fabric shown in Figure 3-7. In this fabric, Switch_1, HBA_1, and
Switch_2 support security while the JBOD and HBA_2 do not. The objective is to
secure F_Ports and E_Ports in the fabric. To do this, configure security on the
devices that support security: Switch_1, Switch_2, and HBA_1.

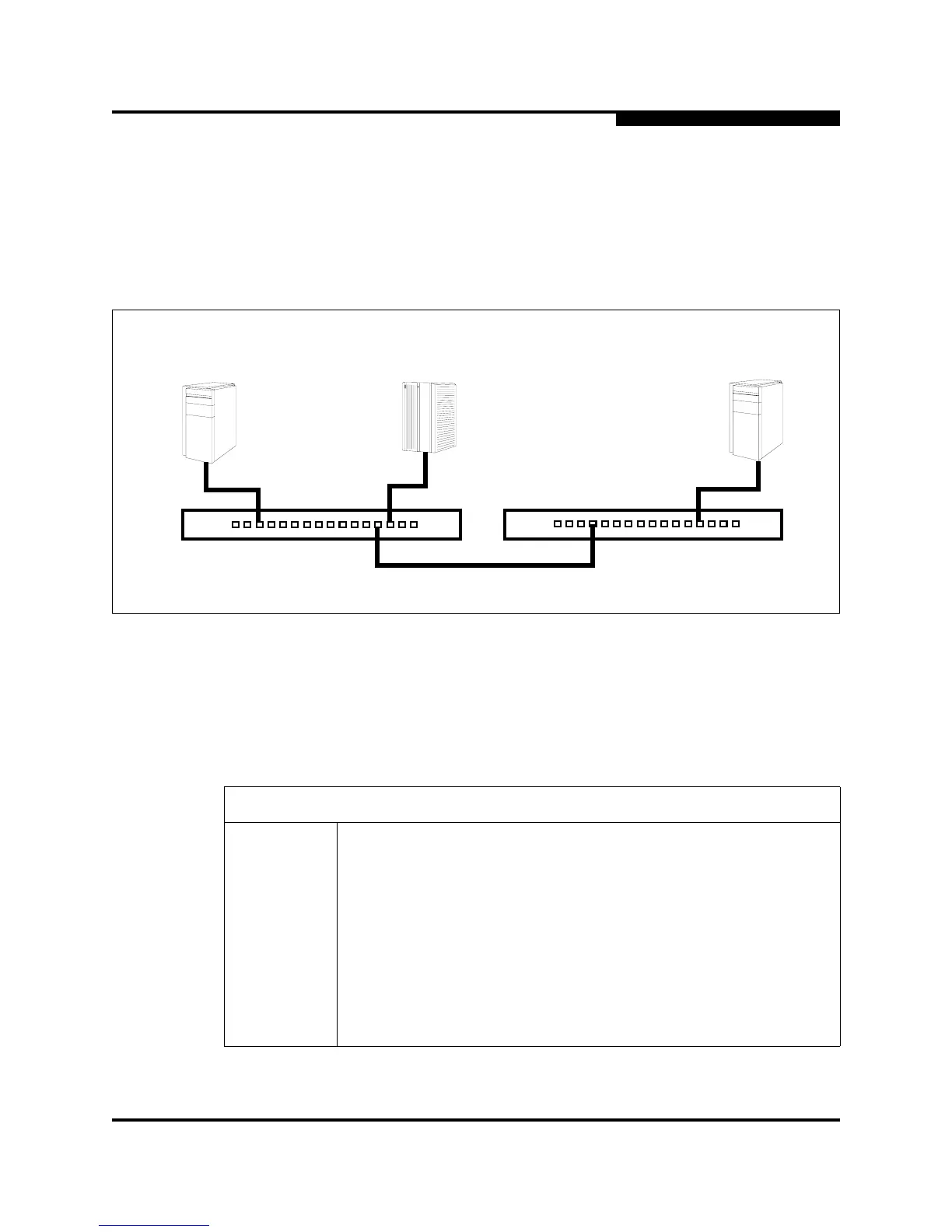

Figure 3-7. Security Example: Switches and HBAs
1. Configure security on Switch_1. Create a security set (Security_Set_1) on
Switch_1.
a. Create a port group (Group_Port_1) in Security_Set_1 with Switch_1
and HBA_1 as members. The JBOD is a loop device, and is therefore,
excluded from the port group.
Port Group on Switch_1: Group_Port_1
Switch_1 Node WWN: 10:00:00:c0:dd:07:e3:4c
Authentication: CHAP
Primary Hash: MD5
Primary Secret: 0123456789abcdef
HBA_1 Node WWN: 10:00:00:c0:dd:07:c3:4d
Authentication: CHAP
Primary Hash: MD5
Primary Secret: fedcba9876543210
Device: Switch_1
WWN: 10:00:00:c0:dd:07:e3:4c
Security: Yes
Device: Switch_2
WWN: 10:00:00:c0:dd:07:e3:4e
Security: Yes
Device: HBA_1
WWN: 10:00:00:c0:dd:07:c3:4d
Security: Yes
E_Port
F_Port
F_Port
FL_Port
Device: JBOD
Security: No
Device: HBA_2
WWN: 10:00:00:c0:dd:07:c3:4f
Security: No
